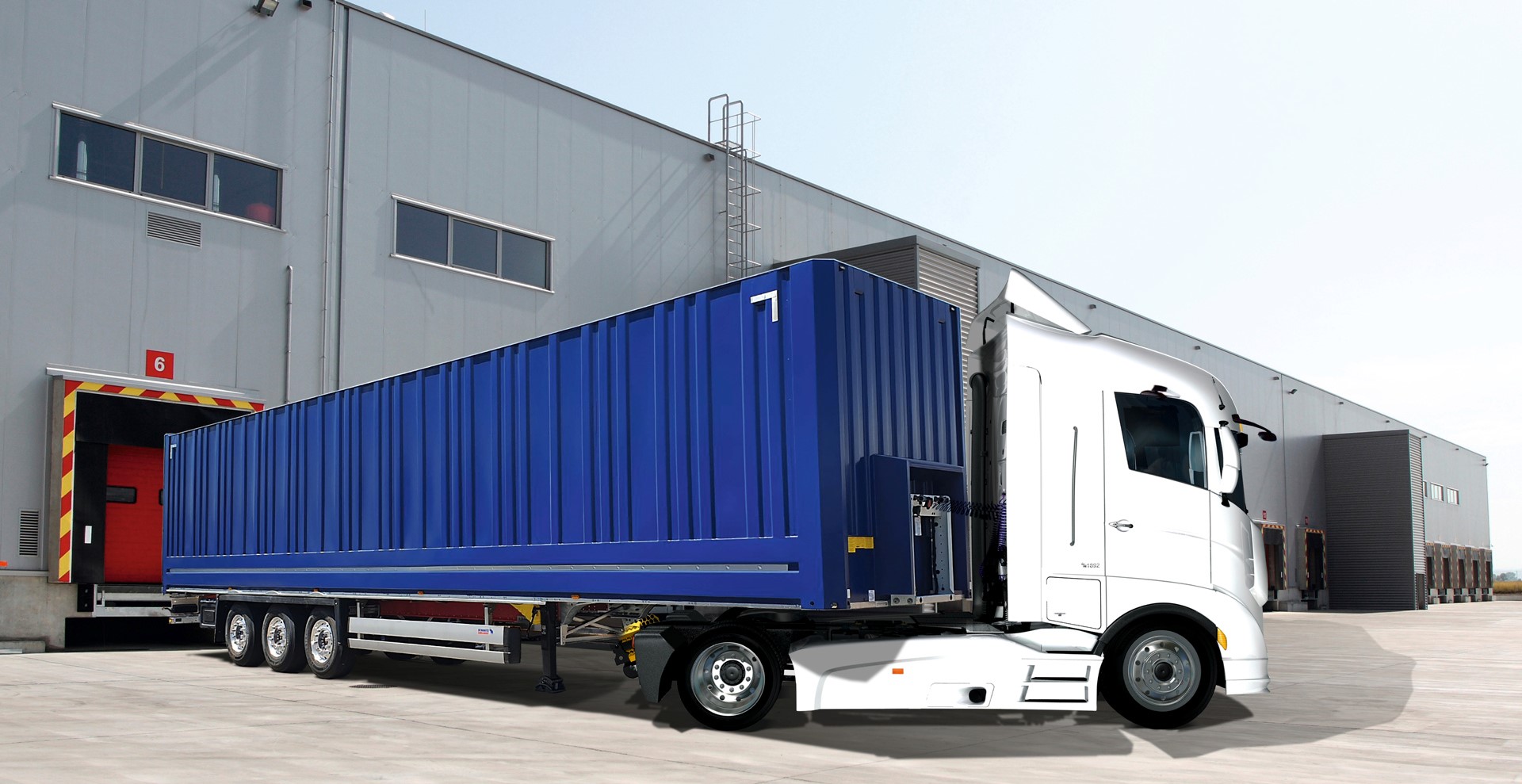

S.BO Steel box

S.BO Steel box

The steel box body of the S.BO is robust and reliably protects the goods in intercontinental freight traffic. Especially in unaccompanied ferry traffic, the S.BO is the ideal partner.

Your benefits

  • Beaded steel super structure for intercontinental ferrytransport, protects the goods and minimizes the risk of theft
    Узнайте больше
  •  Body heights with up to 3,000mm usable interior height for maximum load volume of over 101m³
    Узнайте больше
  •  Interior equipment with double deck* and keyhole plate for maximum flexibility in load securing
    Узнайте больше
  • Body strength certified according to DIN EN 12642 Code XL
    Узнайте больше

  • The rigid HD sheet metal constructions in the roof and side wall provide safety during loading and unloading.

    Узнайте больше

  • Possible applications are: Transport with double deck system, clothes transport, transport of palletised goods.

    Узнайте больше

  • The S.BO steel box body is the optimum combination of load securing and robustness.

    Узнайте больше

  • Particularly suitable for transporting clothes rails that can be inserted into the matching keyhole plates.

    Узнайте больше

Equipment packages

  • Международные перевозки

    Пакет оснащения TIR для большей безопасности и комфорта при международных грузоперевозках. Именно то, что вам нужно, если вы хотите сократить время ожидания и быстрее пройти пограничный контроль.
    Узнайте больше

  • Оборудование для паромных перевозок

    Безопасность в море с паромным оборудованием для сопровождаемых и несопровождаемых перевозок. Паромные швартовочные кольца для фиксации транспортного средства на пароме, четко обозначенные точки строповки и задняя защита от въезда с салазками обеспечивают безопасность и защиту транспортного средства и товара.
    Узнайте больше

Übersicht

Chassis & running gear

  • Chassis
  • Running gear
Chassis

MODULOS - Chassis

Rolled MODULOS chassis has a repairfriendly design based on bolted, hot galvanised technology. It provides high value retention and low total cost of ownership as well as options to easily modify the modular system at any stage.
Подробнее
Running gear

ROTOS

ROTOS axles with disc brakes for high traffic safety and lower total cost of ownership. Six years’ warranty on hub and tube, and more than 1 million ROTOS running gear sold to date.
Подробнее
Axle lift for better traction

Lifting axle

The axles of ROTOS® running gear can optionally be equipped with a lifting function. The axle lift and starting aid increase efficiency, driving safety and traction, reducing tyre wear.

Подробнее
The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.
Подробнее

Body

  • Interior
  • Front
  • Rear
  • Floor
  • Side wall
Interior

The double-deck system

Flexible and higher utilisation of the vehicle due to the double deck system. Ideal for non-stackable cargo. The system enables gapless loading over two infinitely height-adjustable and divisible levels.
Подробнее

The keyhole plate

The keyhole plate is ideal for transporting clothes, enabling easy transport of hanging clothes and piece goods.

Подробнее
Front

Heavy duty protection

Additional protection against damage to the front by the attached front box.
Rear

Double-folding door

Maximum safety with the double-hinged door. Depending on the transport conditions, with single or double locking.
Подробнее

Underride protection

It’s easy for a trailer to become damaged while loading  onto the ferry,  due to the underride guard touching down, but the skid on the underride guard prevents this.. The underride guard has a load capacity of 18t.
Подробнее
Floor
S.CS curtainsider semi-trailer wooden floor for different stacker axle loads

Wooden floor

Durable and robust screen-printed floors available for different forklift axle loads (7.1 tonnes, 8 tonnes or 9.5 tonnes). Sealed floor plates prevent moisture from reaching the cargo from below.
Подробнее

Floor panels at the rear portal

When frequently loaded with a forklift truck, the floor plate is subject to increased wear. For protection, an additional floor plate is installed at the rear portal, which extends the service life of the floor. The forklift axle load is 9.5 tonnes.
Подробнее
Side wall

Air grille

Small openings in the side wall ensure that air can circulate in the body. This prevents condensation from forming in the interior.

Assist systems

  • Tyre pressure systems
  • Brake pad wear indicator
  • Blinkede Seitenmarkierungsleuchten
  • Elektronsiche Rampenanfahrhilfe
Pressure monitoring system
The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring by TrailerConnect® immediately possible – if sensors are mounted on the tyre. The system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.
Подробнее
Brake pad wear indicator
Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.
Подробнее
Flashing side marking lights
Side marking lights for enhanced road safety

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash and signal to other road users that the vehicle is about to turn.
Подробнее
Electronic ramp approach aid
Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.
Подробнее

Load securing

  • Lashing points and aids
Lashing points and aids
Flexible points for load securing

Lashing eyes

The lashing eyes, with a pulling force of up to 2 tonnes, provide flexible load securing points. Fits all common hooks for fast load securing.
Подробнее

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

  • DIN EN 1264 Code XL

    Сертифицированная жесткость кузова уже в серийном исполнении. С сертификатом стандарта DIN EN 12642 Code XL кузова Schmitz Cargobull выполняют требования к усиленным кузовам с возможностями фиксации груза.
    Узнайте больше
  • Узнайте больше

Technical data

  • Internal body length13.585мм
  • External body length13.690мм
  • Internal body height2.480мм
  • Sidewall thickness35мм
  • Rear door thickness50мм
  • Roof thickness25мм
