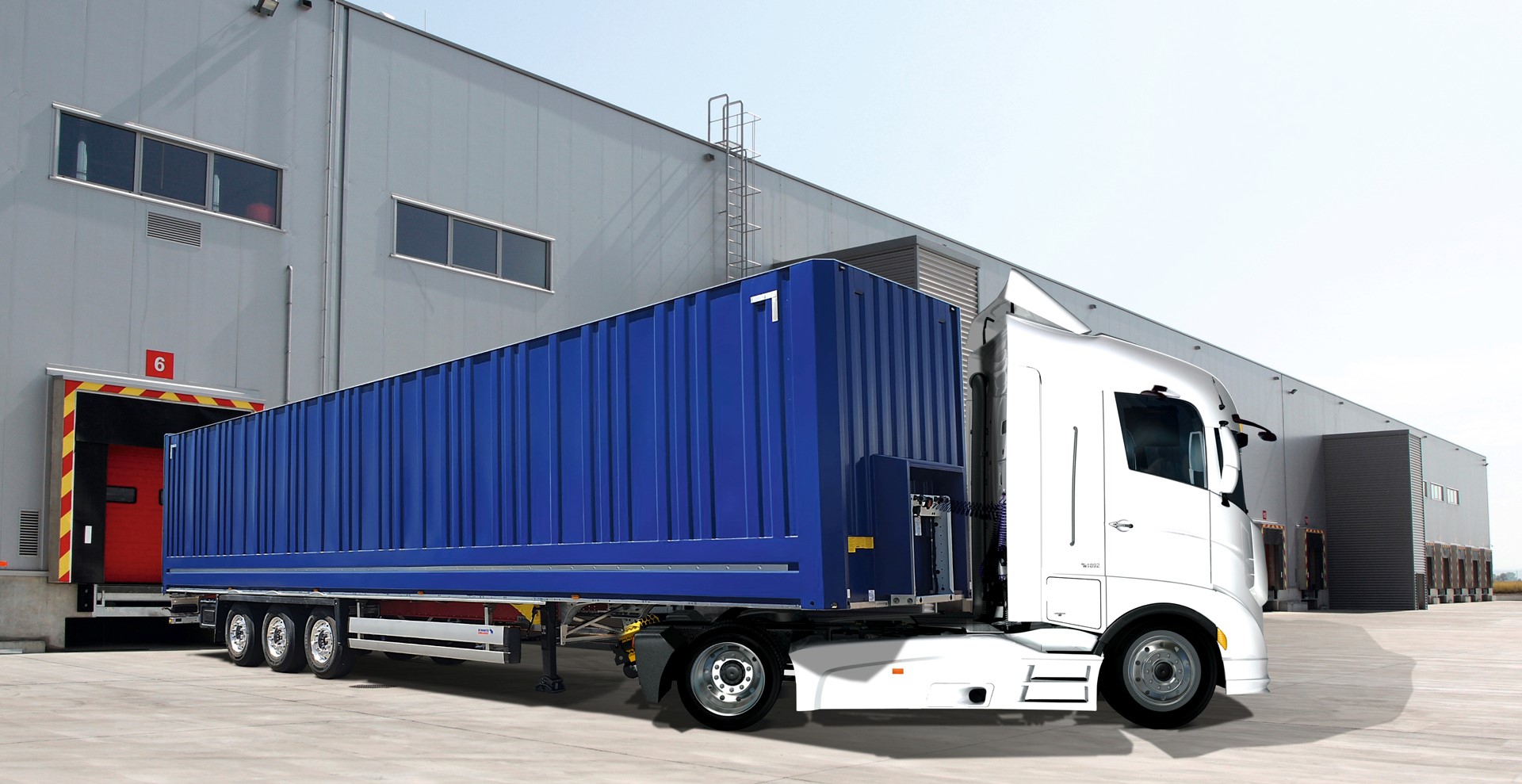

S.BO Steel box

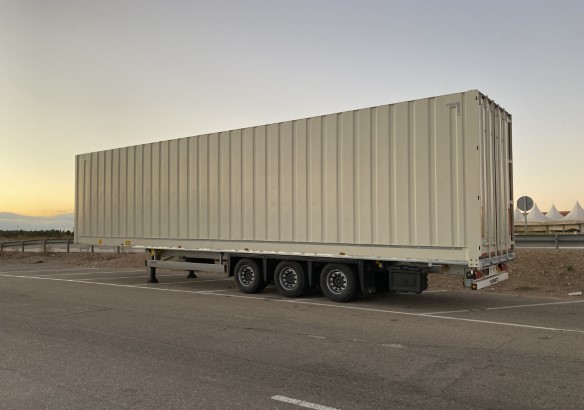

The steel box body of the S.BO is robust and reliably protects the goods in intercontinental freight traffic. Especially in unaccompanied ferry traffic, the S.BO is the ideal partner.

Your benefits

Beaded steel super structure for intercontinental ferrytransport, protects the goods and minimizes the risk of theft
Lees meer
Body heights with up to 3,000mm usable interior height for maximum load volume of over 101m³
Lees meer
Interior equipment with double deck* and keyhole plate for maximum flexibility in load securing
Lees meer
Body strength certified according to DIN EN 12642 Code XL
Lees meer
The rigid HD sheet metal constructions in the roof and side wall provide safety during loading and unloading.
Lees meer
Possible applications are: Transport with double deck system, clothes transport, transport of palletised goods.
Lees meer
The S.BO steel box body is the optimum combination of load securing and robustness.
Lees meer
Particularly suitable for transporting clothes rails that can be inserted into the matching keyhole plates.
Lees meer

Equipment packages

Grensoverschrijdend vervoer
Het TIR-uitrustingspakket voor meer veiligheid en comfort in het grensoverschrijdende internationale goederenvervoer. Precies wat u nodig heeft, wanneer u sneller wilt inklaren met kortere wachttijden.
Lees meer
Ferryuitrusting
Veilig op zee met ferry-uitrusting voor begeleid en onbegeleid vervoer. Ferry-lashings om het voertuig vast te zetten, duidelijk gemarkeerde sjorpunten en een onderrijbeveiliging met glijstuk zorgen voor de veiligheid en bescherming van het voertuig en de goederen.
Lees meer

Chassis & running gear

Chassis
Running gear

Chassis

MODULOS - Chassis

Rolled MODULOS chassis has a repairfriendly design based on bolted, hot galvanised technology. It provides high value retention and low total cost of ownership as well as options to easily modify the modular system at any stage.

Running gear

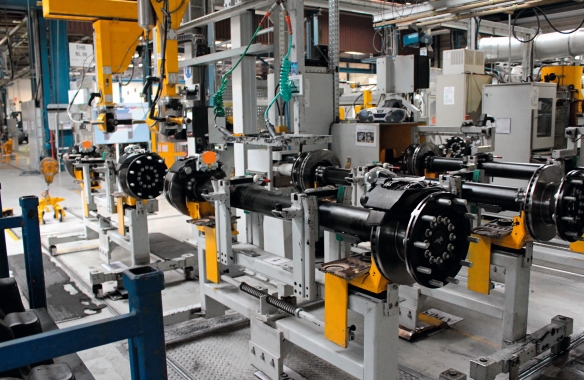

ROTOS

ROTOS axles with disc brakes for high traffic safety and lower total cost of ownership. Six years’ warranty on hub and tube, and more than 1 million ROTOS running gear sold to date.

Axle lift for better traction

Lifting axle

The axles of ROTOS^® running gear can optionally be equipped with a lifting function. The axle lift and starting aid increase efficiency, driving safety and traction, reducing tyre wear.

The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.

Body

Interior
Front
Rear
Floor
Side wall

Interior

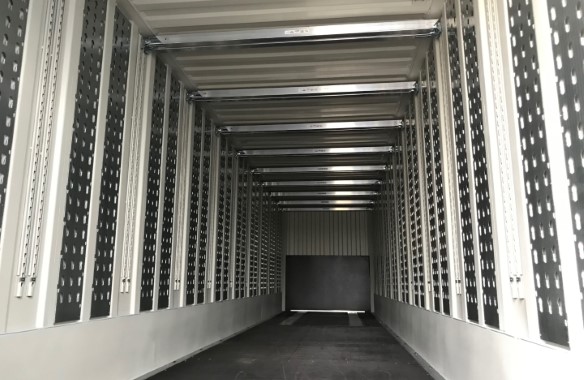

The double-deck system

Flexible and higher utilisation of the vehicle due to the double deck system. Ideal for non-stackable cargo. The system enables gapless loading over two infinitely height-adjustable and divisible levels.

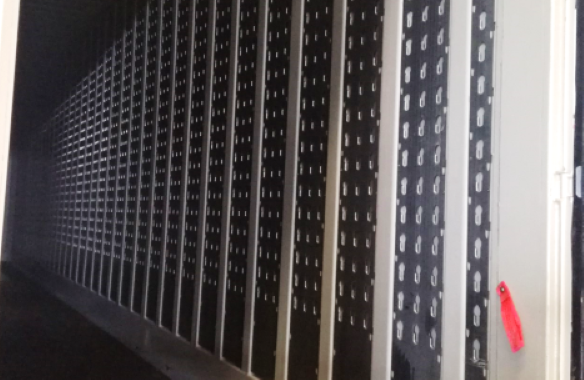

The keyhole plate

The keyhole plate is ideal for transporting clothes, enabling easy transport of hanging clothes and piece goods.

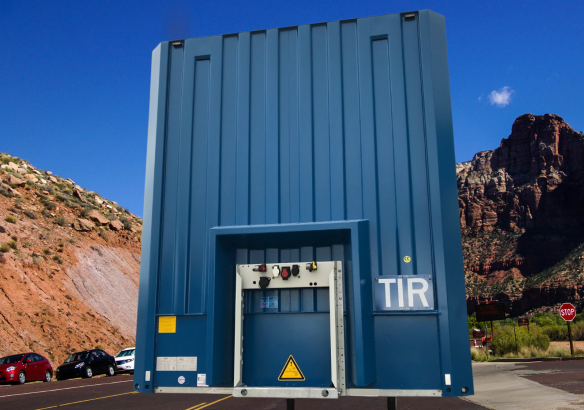

Front

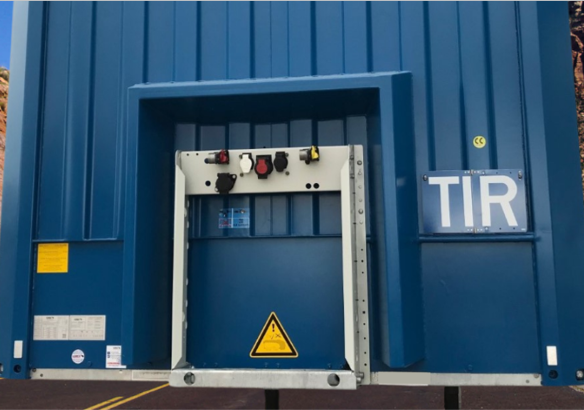

Heavy duty protection

Additional protection against damage to the front by the attached front box.

Rear

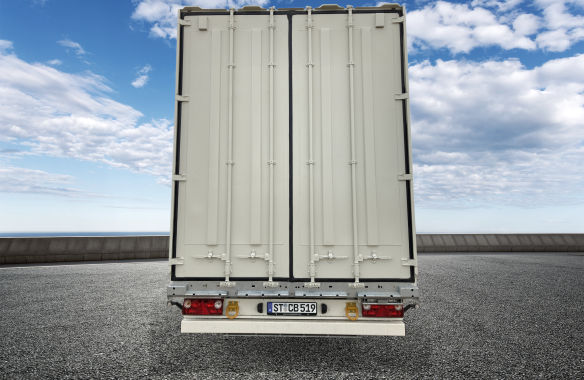

Double-folding door

Maximum safety with the double-hinged door. Depending on the transport conditions, with single or double locking.

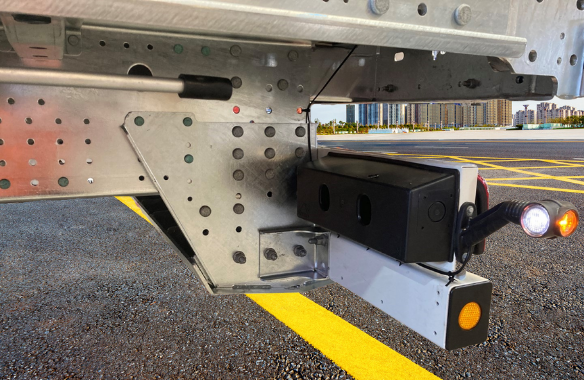

Underride protection

It’s easy for a trailer to become damaged while loading onto the ferry, due to the underride guard touching down, but the skid on the underride guard prevents this.. The underride guard has a load capacity of 18t.

Floor

S.CS curtainsider semi-trailer wooden floor for different stacker axle loads

Wooden floor

Durable and robust screen-printed floors available for different forklift axle loads (7.1 tonnes, 8 tonnes or 9.5 tonnes). Sealed floor plates prevent moisture from reaching the cargo from below.

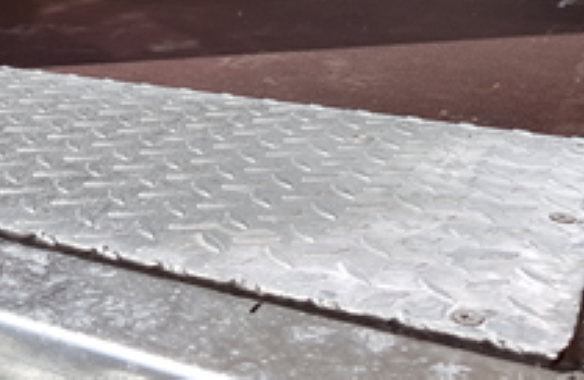

Floor panels at the rear portal

When frequently loaded with a forklift truck, the floor plate is subject to increased wear. For protection, an additional floor plate is installed at the rear portal, which extends the service life of the floor. The forklift axle load is 9.5 tonnes.

Side wall

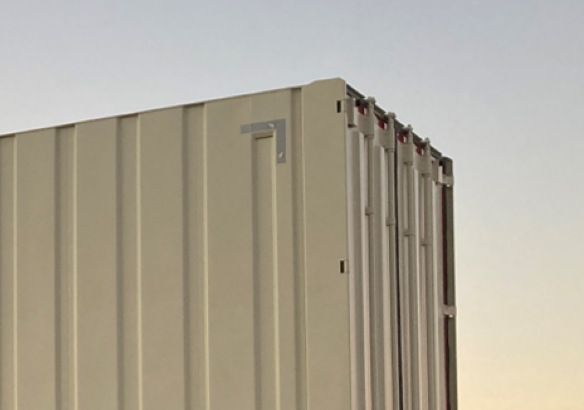

Air grille

Small openings in the side wall ensure that air can circulate in the body. This prevents condensation from forming in the interior.

Assist systems

Tyre pressure systems
Brake pad wear indicator
Blinkede Seitenmarkierungsleuchten
Elektronsiche Rampenanfahrhilfe

Pressure monitoring system

The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring by TrailerConnect® immediately possible – if sensors are mounted on the tyre. The system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.

Brake pad wear indicator

Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.

Flashing side marking lights

Side marking lights for enhanced road safety

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash and signal to other road users that the vehicle is about to turn.

Electronic ramp approach aid

Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.

Load securing

Lashing points and aids

Lashing points and aids

Flexible points for load securing

Lashing eyes

The lashing eyes, with a pulling force of up to 2 tonnes, provide flexible load securing points. Fits all common hooks for fast load securing.

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

DIN EN 1264 code XL
Gecertificeerde standaard opbouwsterkte. Met de certificering volgens DIN EN 12642 Code XL voldoen de opbouwconstructies van Schmitz Cargobull aan de eisen voor versterkte opbouwconstructies voor de ladingszekering.
Lees meer
Lees meer

Technical data

Internal body length13.585mm
External body length13.690mm
Internal body height2.480mm
Sidewall thickness35mm
Rear door thickness50mm
Roof thickness25mm
