POWER CURTAIN

POWER CURTAIN

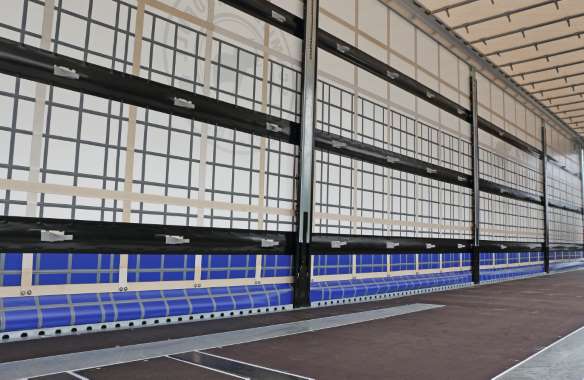

Short loading times are crucial in the logistics sector to increase turnaround speed and efficiency. Schmitz Cargobull. S.CS curtainsider semi-trailers or M.CS/Z.CS high-volume truck body and trailer combinations with POWER CURTAIN deliver these requirements. The structural rigidity of the body is certified to DIN EN 12642 Code XL and is achieved with a high-strength tarpaulin with aramid belts and integrated steel wires.



Strong
- Efficient rear load securing - even with partial loads of up to 7,500 daN - due to the loops integrated in the tarpaulin.

Flexible - Three rows of loops integrated in the tarpaulin provide for flexible load securing approximately every 60 cm. The loops can be easily reached at different points in the trailer.

POWER CURTAIN PLUS

Comprehensively certified

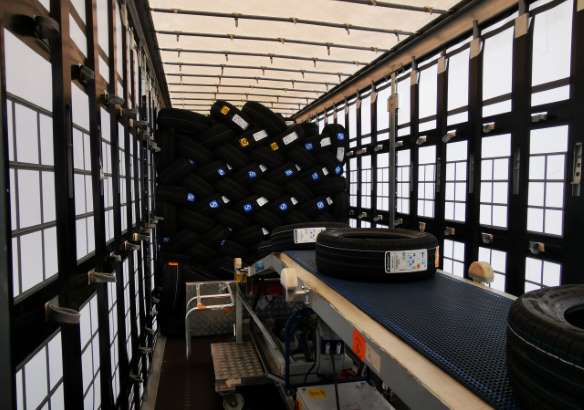

- also for tyre transport and other goods which are not suitable for positive Transport the side tarpaulin strong burden. The strength of the POWER CURTAIN PLUS, for the curtainsider semi-trailer S.CS, is determined by an easy-to-use lever mechanism of the supporting bars which applies pre-tension to the tarpaulin.

Load securing

Efficient securing even with partial loads or with form-fitting loading, with no need for additional equipment.

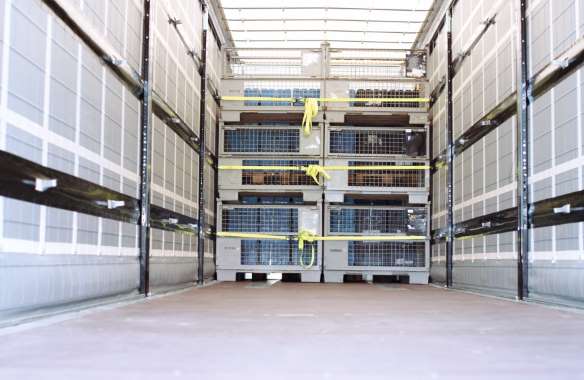

Restraint

No additional equipment is required with form-fitting loads.
Find out more

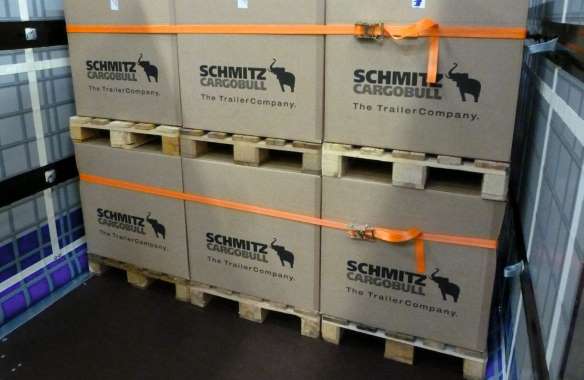

Partial load

Partial loads can simply be secured by loops integrated into the tarpaulin. Restraints such as bungee straps can be hung from the tarpaulin loops.
Find out more

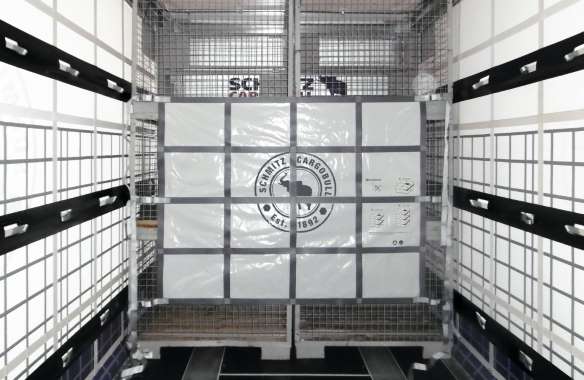

Load securing tarpaulin

A load securing net can be used to secure the entire surface of the load, regardless of its height.
Find out more

Road test in accordance with DIN EN 12642 Code XL

The trailer body's DIN EN 12642 Code XL certificate provides that it can be secured by the side tarpaulins without the need for additional restraints when the load is form-fitted.

Safety at a glance

A copy of the DIN EN 12642 Code XL certificate is located on the inside of the rear door of the S.CS curtainsider semi-trailer and M.CS/Z.CS high-volume truck body and trailer combination, both fitted with a POWER CURTAIN.

Badges are additionally affixed to the front and rear wall as evidence that the structural rigidity of the body complies with DIN EN 12642 Code XL.

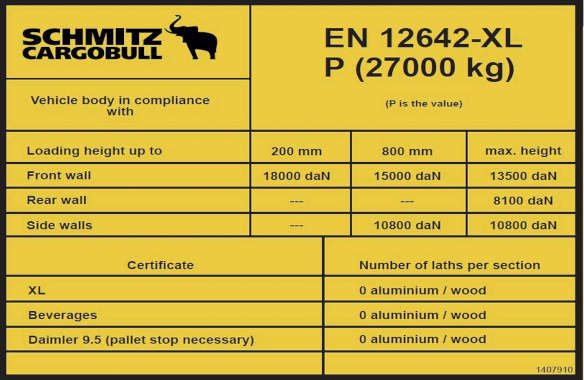

The badge for the S.CS curtainsider semi-trailer includes the following information:

  • Details of the test loads at different loading heights
  • Required number of support laths: "0".
  • The POWER CURTAIN does not require support laths.
