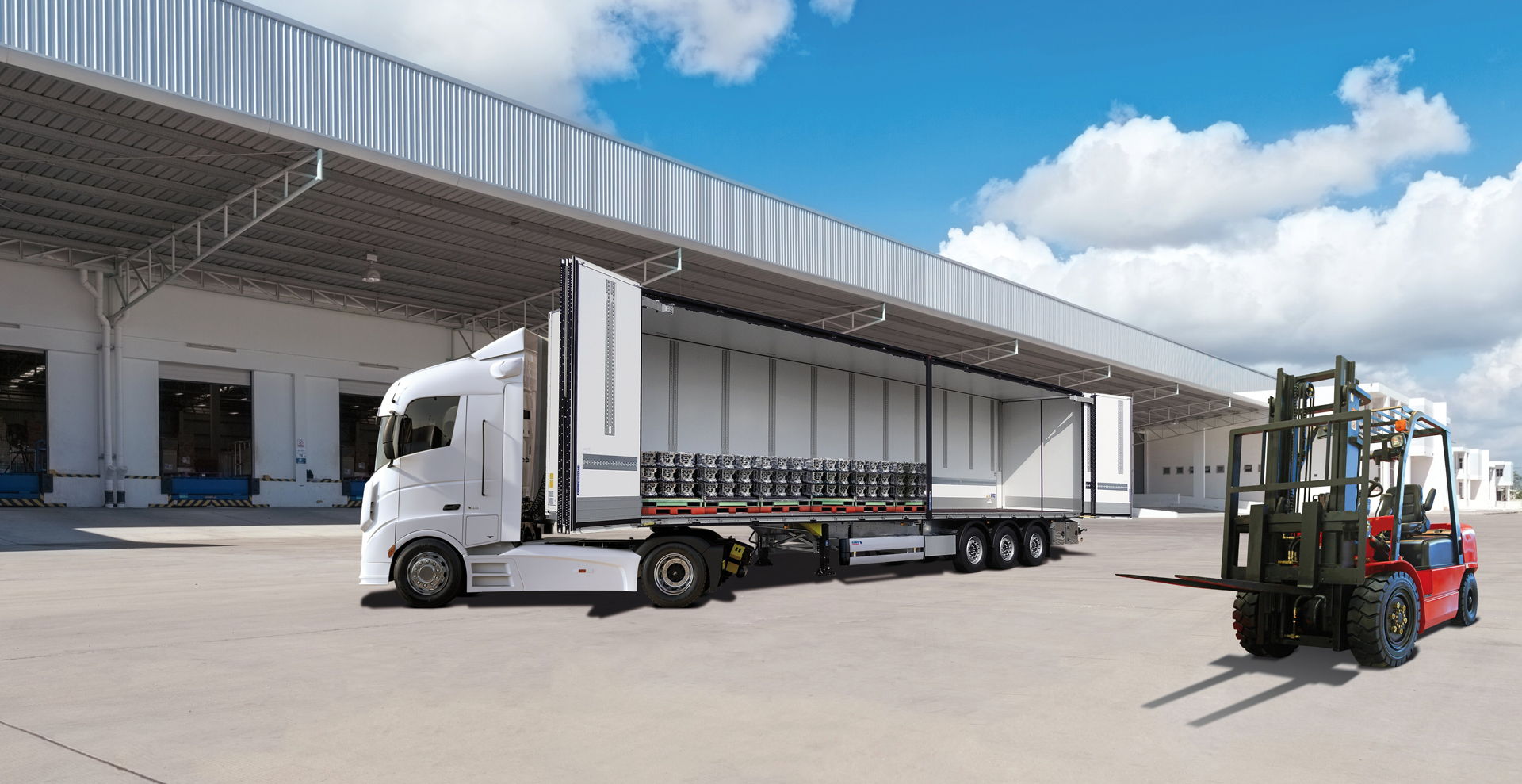

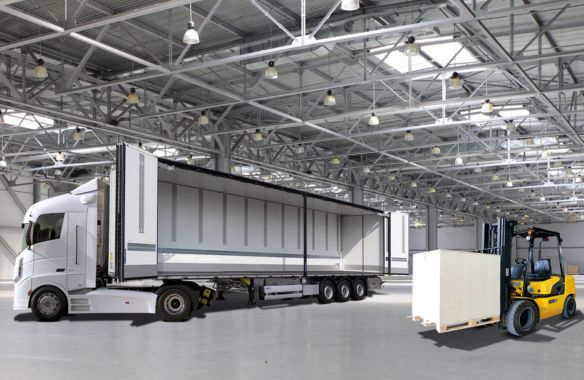

S.BO OPENSIDER

S.BO OPENSIDER

With its fully side-opening doors, versatile usage options and improved accessibility, the S.BO OPENSIDER offers an efficient, safe and flexibl solution for te transport of non-refrigerated goods.

Jūsu priekšrocības

  • Faster loading and unloading:

    The side access allows for quick loading and unloading, especially in narrow or crowded areas.

    Lasiet vairāk
  • Increased security:

    Reduces the risk of injury by minimizing climbing into the truck.

    Lasiet vairāk
  • Improved accessibility:
    Side access to the load is ideal for urban environments or locations with limited rear access.

    Lasiet vairāk
  • Certified safety and stability:

    Structural strength in accordance with DIN EN 12642 Code XL for the safe transport of demanding dry freight.

    Lasiet vairāk
  • Time and work efficiency:

    Shortens turnaround time at loading bays and reduces dependence on specific loading bay configurations.

    Lasiet vairāk
  • Better use of space:

    Allows easy organization and access to specific items without having to unload everything.

    Lasiet vairāk
  • Maximum flexibility in the loading process:

    The S.BO OPENSIDER is available with either one-sided or two-sided opening side walls.

    Lasiet vairāk
  • Proven dry freight performance:

    The robust FERROPLAST® box body reliably protects goods from te weather and theft.

    Lasiet vairāk

Pārskats

Šasija un ritošā iekārta

  • šasija
  • šasijas ritošā daļa
Chassis
The MODULOS chassis offers greater reserves of power

MODULOS šasija

MODULOS šasija nodrošina lielākas veiktspējas rezerves ar augstāku maršruta noslodzi un uzlabotu svaru. Izturīgs transportlīdzekļa rāmis ar valcēta profila garensijām ir gatavots no vienas detaļas un šādi nodrošina augstu stabilitāti bez termiskās deformācijas.
Uzzināt vairāk
Running gear

ROTOS

Izcilas braukšanas īpašības, pateicoties sērijveida MRH pneimatiskajai balstiekārtai (Multi-Ride-Height). Pateicoties inovatīvajai ventilācijas sistēmai, veidojas mazāk karstuma un bremžu uzlikas iespējams lietot ilgāk.
Uzzināt vairāk
Axle lift for better traction

Lifting axle

The axles of ROTOS® running gear can optionally be equipped with a lifting function. The axle lift and starting aid increase efficiency, driving safety and traction, reducing tyre wear.

Uzzināt vairāk
The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.
Uzzināt vairāk

Virsbūve

  • Sidewall
  • Frontwall
  • Dubultstāvs
  • Aizmugurējā daļa
  • Grīda
  • Jumts
Side

Sidewall

The sidewall system allows fast and convenient handling, enabling the entire side to be opened or closed in under one minute, which reduces downtime and speeds up loading processes. Five interconnected door segments on each side ensure stable operation, with secure locking mechanisms at the front and rear of the semi-trailer body. Optionally for the European version a double-sided foldable wall is available, offering loading and unloading from both sides for greater flexibility in everyday transport operations.

Uzzināt vairāk

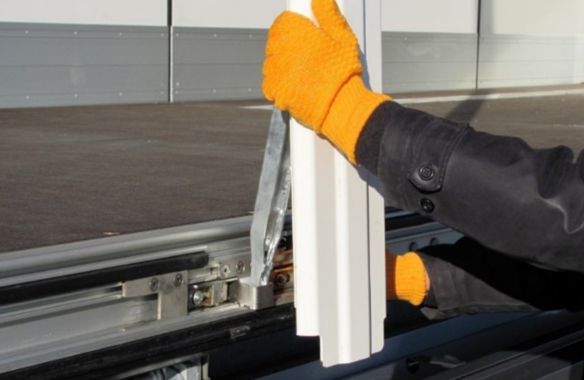

Sliding middle post 1

Sliding middle post

The sliding middle post design ensures longer durability of the side doors and allows easy, precise positioning. The sliding middle post can be detached from its central position and repositioned across the full width of the trailer for maximun flexibility during loading.

Uzzināt vairāk
Frontwall

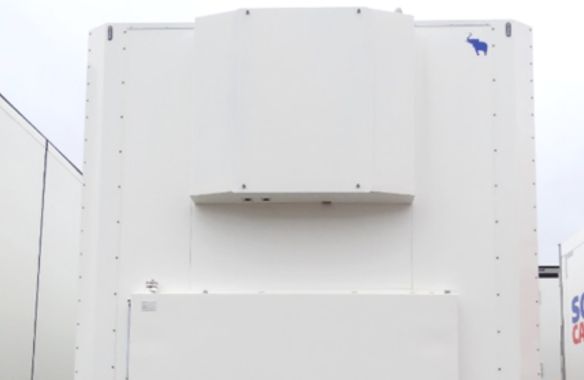

Heating unit

Heating unit

The heating unit option was developed to transporting temperature-sensitive goods in cold climates. It ensures consistently positive temperature inside the trailer body, making it suitable for products such as electronics, beverages, paints and various construction materials.

Uzzināt vairāk
Interior
Double-decker system

Double-decker system

The double-decker system provides for flexible and greater utilization of the semi-trailer. The system provides for gap-free loading using two infinitely height-adjustable and split levels. Ideal for non-stackable freight.

Uzzināt vairāk
Rear
Aluminium rear door for the S.KO EXPRESS box body semi-trailer

Aizmugurējās durvis

Alumīnija aizmugurējās durvis ir noturīgas pret koroziju, ilgmūžīgas un vieglas.
Uzzināt vairāk
Insulated roller shutter for the S.KO box body semi-trailer

žalūzijtipa durvis

Pateicoties izolētajām aizkara tipa durvīm, vairs netiek zaudēts laiks un aukstums, jo transportlīdzekli pēc piebraukšanas pie rampas iespējams atvērt.
Uzzināt vairāk

Dynamic Ramp Protection

The system protects the body when the trailer reverses up to a ramp. At the same time, stainless steel roller bumpers compensate for the trailer's change of height when it is approached by a forklift.
Uzzināt vairāk

Reversing camera

A reversing camera assists the driver when reversing. Whether docking to ramps, manoeuvring within a confined space or in narrow streets, visibility to the rear provides greater safety and avoids damage.
Uzzināt vairāk
Fast unloading even without a ramp with a tail lift for the S.KO box body semi-trailer

kravas lifts

Ar kravas liftu iekraušana un izkraušana ir iespējama arī bez rampas. Kravas lifts nodrošina tiešu iekraušanu un izkraušanu.
Uzzināt vairāk
Floor
S.KO EXPRESS wear plates at the rear

Grīdas plāksnes aizmugurējās portāldurvīs

Bieži veicot kraušanu ar autoiekrāvēju, pēdējā grīdas plāksne ir pakļauta lielākam nodilumam. Lai to aizsargātu, aizmugurējās portāldurvīs ir uzstādīta papildu grīdas plāksne, kas pagarina darbmūžu.
Uzzināt vairāk
Wooden floor for the S.KO EXPRESS box body semi-trailer

Koka grīda

Izturīgas un ilgmūžīgas rievotās grīdas dažādām autoiekrāvēju asu noslodzēm. Grīdas plāksnes ir hermētiskas, lai no apakšpuses kravai nepiekļūtu mitrums.
Uzzināt vairāk
Jumts

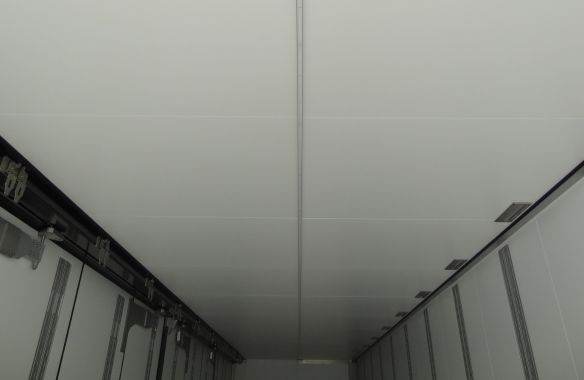

FERROPLAST® roof

The standard FERROPLAST®-insulated roof ensuring excellent fuel efficiency and outstanding insulation.
Uzzināt vairāk

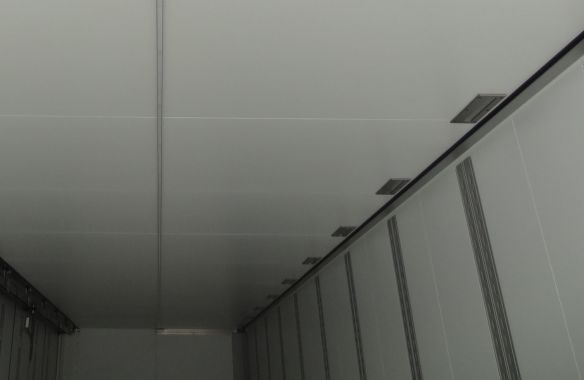

Improved interior lighting

With the new LED light strips, the interior is now even better illluminated, ensuring more safety when loading and unloading at any time of day.

Uzzināt vairāk

Atbalsta sistēmas

  • Riepu gaisa spiediena sistēmas
  • uzliku nodiluma indikatora
  • Mirgojošs sānu gabarītlukturis
Pressure monitoring system
The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring by TrailerConnect® immediately possible – if sensors are mounted on the tyre. The system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.
Uzzināt vairāk
Brake pad wear indicator
Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.
Uzzināt vairāk
Flashing side marking lights
Uzzināt vairāk

Kravas nostiprināšanas līdzekļi

  • Kravas ciešs nostiprinājums
Kravas ciešs nostiprinājums

kravas nostiprināšanas sija

Kravu, kas nav novietota uz paletēm, iespējams nostiprināt pie uz virsmām uzstādītām kravas stiprināšanas sliedēm. Kravas nostiprināšanas sijas iespējams uzstādīt jebkādi, un līdz ar to iekšpusi iespējams brīvi izmantot.

Sertifikāti

Visaptveroša sertifikācija jūsu drošībai un transportēšanas ikdienai.

  • DIN EN 1264 Code XL

    Sērijveidā sertificēta virsbūves noturība. Ar sertifikāciju saskaņā ar DIN EN 12642 Code XL Schmitz Cargobull virsbūves atbilst pastiprinātu virsbūvju prasībām, lai veiktu kravas nostiprināšanu.
    Lasiet vairāk
  • Lasiet vairāk

Tehniskie dati

  • Internal body length13.62m
  • Intenal body width2,475mm
  • Internal body height2,650mm
  • Pallet spaces34Eiropaletes
