Agricultural

Agricultural products or other goods with low bulk density can be transported cleanly and safely using the high-volume version of the S.KI LIGHT tipper trailer aluminium box body.

TypeTipper semi-trailers
BodyAluminium box body
Volume38-59m³
Type length8.2 / 9.6 / 10.5
Body depth1,900-2,300mm
Axles3
ChassisSteel
UseAgricultural products/bulk goods with low bulk density (e.g. cereals, corn, sugar beets, potatoes)/pallet goods

The S.KI LIGHT bulk tipper semi-trailer with aluminium box body for agricultural and forestry goods

Your benefits

More payload with the new chassis generation.
Read more
More safety: the revised underride guard already meets the legal requirements according to ECE-R58.03.
Read more
Individual combination of various lengths, heights and material thicknesses
Read more
TrailerConnect® telematics functions enable you to keep an eye on all your networked trailer components.
Read more
Offset chassis for a low loading height and a lower centre of gravity for improved driving stability
Read more
Also available in a pallet-ready version for packaged goods transport
Read more
Application-specific rear wall solutions
Read more
Now new! In the overall lengths 8.2/9.6/10.5.
Read more

Chassis & running gear

Chassis
Running gear
Lighting
Attachment parts

Chassis

Robust, hot galvanised and weight-optimised EXTRA LIGHT chassis

EXTRA LIGHT chassis

The robust, hot galvanised and weight-optimised EXTRA LIGHT chassis guarantees maximum payload and long-term value retention. Optional hot galvanising for the best possible corrosion protection.

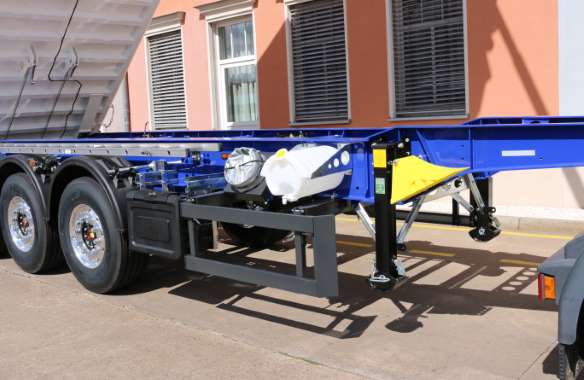

Reduced loading height with the offset EXTRA LIGHT chassis

Offset EXTRA LIGHT chassis

The chassis with offset frame reduces the loading height and centre of gravity by 160 mm compared to a straight chassis. Optional hot galvanising for the best possible corrosion protection.

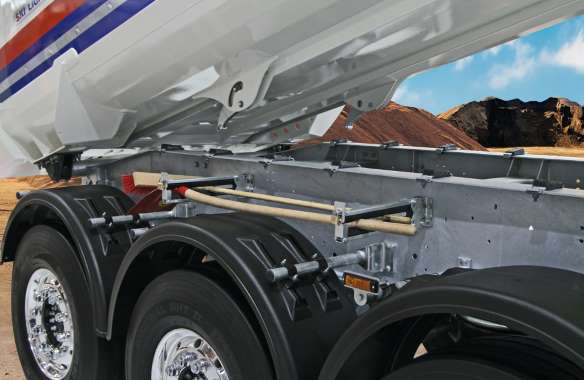

The steel chassis is reliable, durable, low-maintenance and ideal for off-road operation with excellent value retention.

Standard chassis

The steel chassis is durable, low-maintenance and ideal for off-road operations. Its torsionally rigid construction ensures that the chassis has excellent tipping stability. Optional hot galvanising for the best possible corrosion protection.

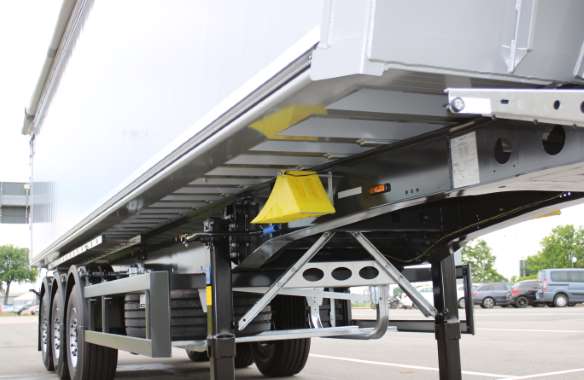

Heavy-duty running gear and chassis for extremely tough road conditions

Heavy-duty chassis

Designed for use on poor-quality roads and extreme winter conditions, the Heavy-Duty running gear delivers maximum value retention and excellent safety. Optional hot galvanising for the best possible corrosion protection.

Folding underride guard

Its folding underride guard - optionally also with electropneumatic folding - ensures improved unloading ground clearance with pavers when retracted. Increased safety: the revised underride guard already meets the legal requirements according to ECE-R58.03. The spring-supported folding mechanism makes it easier to operate,

More about the new chassis-generation

Running gear

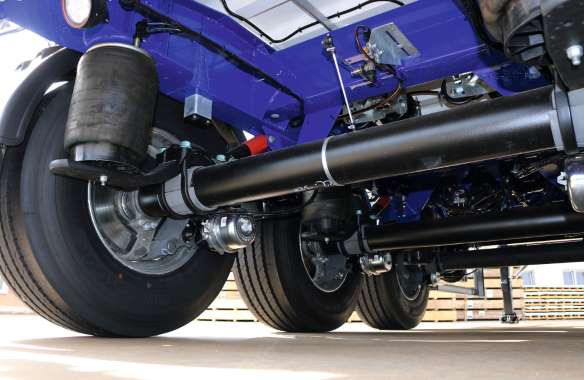

Reliable mileage (km) with the ROTOS? axle

ROTOS

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.

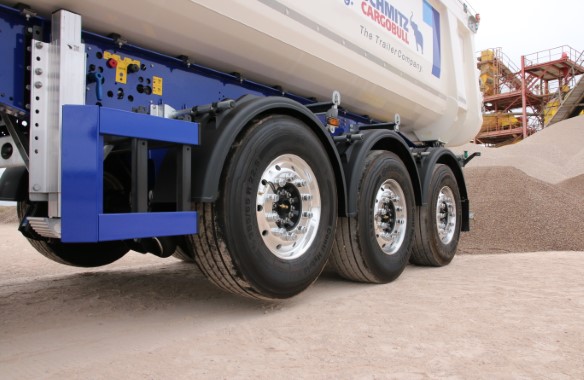

Lifting axle and starting aid

The lifting axle and starting aid function improve efficiency, driving safety and traction off-road, and are therefore standard equipment on all 3-axle S.KI tipper semi-trailers.

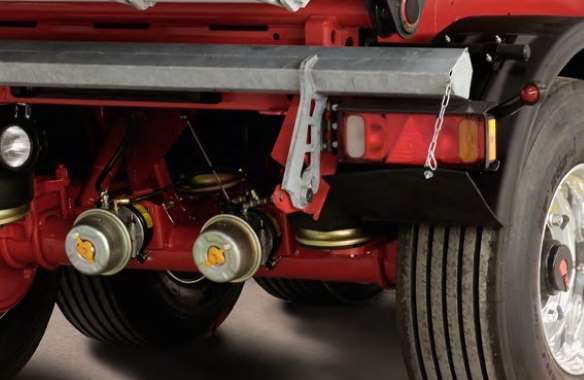

The paver brake controls the brake pressure during unloading

Paver brake

During operation of the road paver, the truck-trailer combination is pushed during tipping. The paver brake controls the brake pressure, preventing the semi-trailer from rolling away on sloping ground.

Lighting

Lighting

A range of lighting options further ensures the best possible safety on the road and during operations.

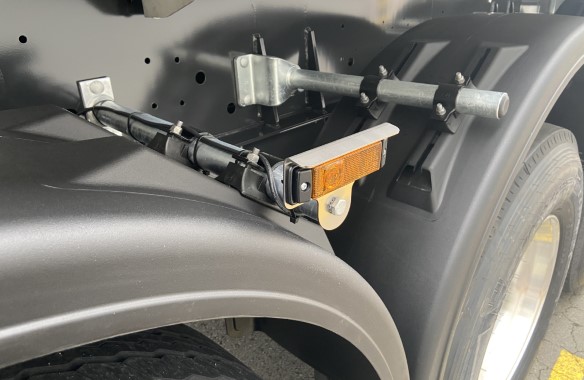

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash, signalling to other road users that the vehicle is about to turn.

Attachment parts

Attachment parts

Attachments round off the convenient use of the trailer, simplifying everyday life in transport. Just a few of many extension options.

Body

Body
Roof and covers
Working platform
Rear
Floor and side wall

Body

High-volume version

Maximum loading capacity, excellent payload and, with an offset chassis, the high-volume version has a lower loading height. Various configuration options enable the aluminium box body to be individually tailored to the application.

Aluminium box body

Aluminium box bodies save weight, enabling the trailer to carry a higher payload. The lightweight box body is constructed from highly durable aluminium profiles and, on request, can be equipped with wear plates or a plastic lining.

Roof

Roller tarpaulin

Easy-to-operate and robust well cover protects the cargo from moisture and dirt, especially during transport.

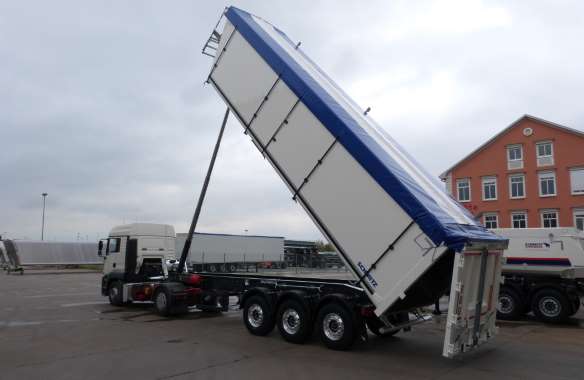

Arc-shaped roller tarpaulin for the S.KI tipper semi-trailer

Bow-shaped roller tarpaulin

A long central tensioning belt enables the roller tarpaulin to be quickly closed from ground level. No need to tension the tarpaulin on the front wall and rear wall.

Working platform

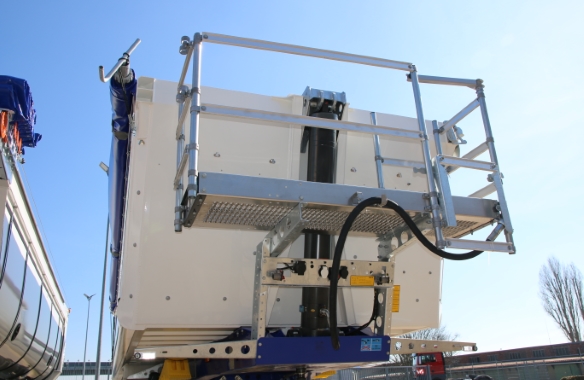

Standard working platform for the S.KI tipper semi-trailer

Height-adjustable working platform

The stable and weight-optimised aluminium working platform mounted, if required, on the front wall simplifies operation of the roller tarpaulin and provides a high level of safety. Individual configuration of the platform height available through easy height adjustment.

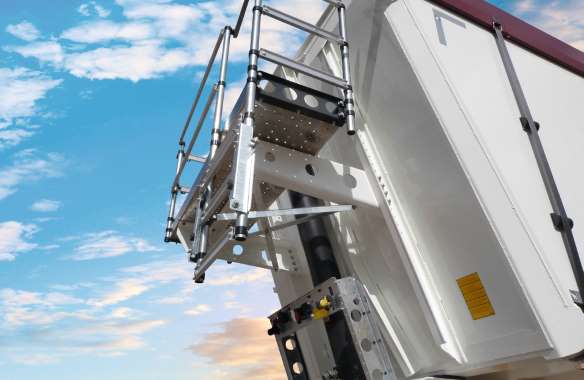

Working platform for the S.KI LIGHT

Working platform

The working platform with non-slip floor, well entry aid and parking position for the hydraulic tube, provides for simple and safe operation of the roller tarpaulin.

Rear

Different rear wall versions

There are a range of different rear wall versions to ensure the best possible unloading, perfectly adapted to every transport task.

Floor

Simply transport more with the aluminium box body of the S.KI LIGHT tipper semi-trailer

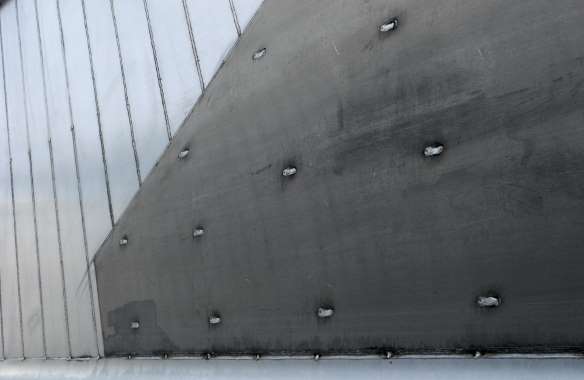

Wear plates

In the event of frequent loading and unloading of abrasive materials, the particularly exposed areas of the body can be equipped with wear plates, extending their service life.

Floor and side wall thicknesses

Different floor and side wall thicknesses are matched to your applications.

Assist systems

S.KI control app
Tyre pressure systems
Brake pad wear indicator

S.KI control app

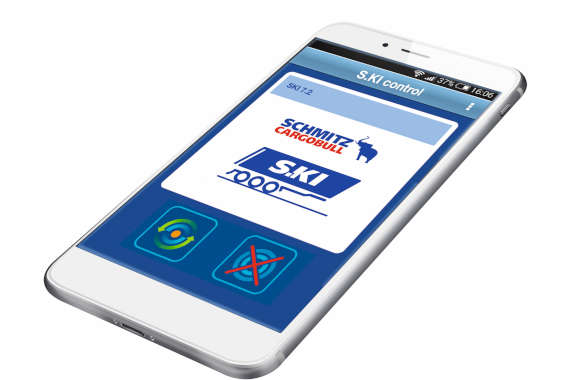

Operation of the tipper semi-trailer using the S.KI Control app

S.KI control app

The S.KI tipper semi-trailer can be remotely operated by tablet or smartphone via a Wi-Fi interface and an app. This enables control of the air suspension, well cover and other elements.

Pressure monitoring system

The Schmitz Cargobull tyre pressure control system.

TPMS with autolocation

The tyre pressure monitoring system displays when you need to top up air into a tyre. With autolocation the sensor is assigned to the correct tyre position. The Schmitz Cargobull sensor learns independently and records the tyre pressure and tyre temperature data. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.

S.KI_tyre pressure control_re-pressurisation_system

Tyre re-pressurisation system

The tyre re-pressurisation system checks the tyre pressure and automatically inflates the tyre if required. This results in lower tyre wear and improved driving characteristics.

Brake pad wear indicator

Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.

Our services

Service Contracts

With the right service contract, you retain full control over the costs and we make sure that you stay mobile!

More about:Service Contracts

Service Partners keep you mobile and minimise your downtimes.

Telematic

TrailerConnect® telematics provides you with all the information you need about your vehicles.

More about:Telematic

TrailerConnect? telematics provides you with all the information you need on your trailers.

Financing

We will provide you with a customized offer with attractive conditions for the entire life cycle of your investment.

More about:Financing

Individual quote with attractive terms and conditions for the entire lifecycle of your investment.
