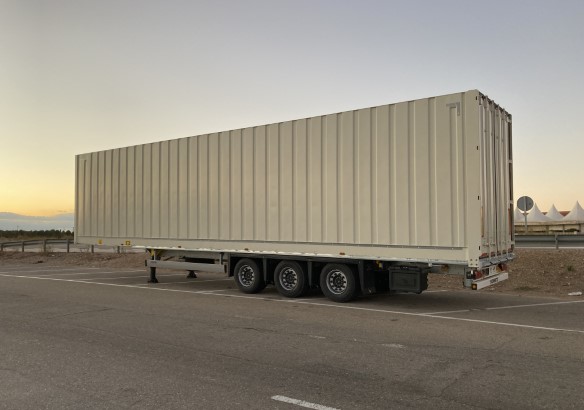

S.BO Steel box

S.BO Steel box

The steel box body of the S.BO is robust and reliably protects the goods in intercontinental freight traffic. Especially in unaccompanied ferry traffic, the S.BO is the ideal partner.
  • Chassis
  • Running gear
Şasi

MODULOS  Şasi

MODULOS’un sıcak galvanizli ve cıvatalı tasarımı sayesinde kolay bakım imkanı sunar. Uzun vadeli değer koruması, düşük işletme maliyeti ve her aşamada esnek modifikasyon seçenekleriyle maksimum verimlilik sağlar.
Bilgi al
Yürüyen Aksam

ROTOS

ROTOS axles with disc brakes for high traffic safety and lower total cost of ownership. Six years’ warranty on hub and tube, and more than 1 million ROTOS running gear sold to date.
Bilgi al
  • Interior
  • Front
  • Rear
  • Floor
  • Side wall
Interior

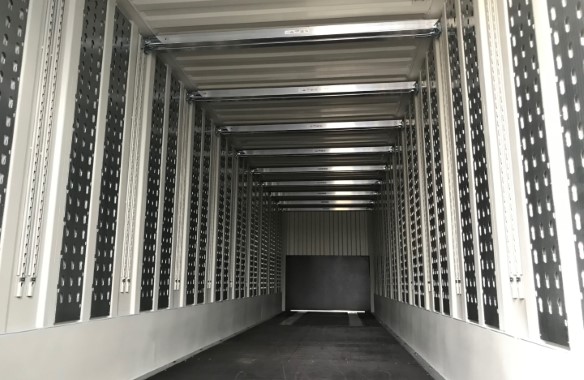

The double-deck system

Flexible and higher utilisation of the vehicle due to the double deck system. Ideal for non-stackable cargo. The system enables gapless loading over two infinitely height-adjustable and divisible levels.
Bilgi al

The keyhole plate

The keyhole plate is ideal for transporting clothes, enabling easy transport of hanging clothes and piece goods.

Bilgi al

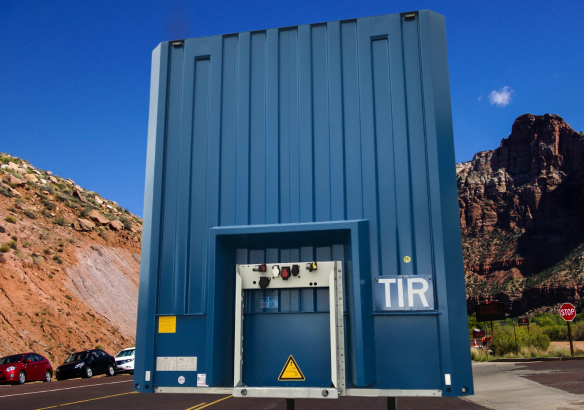

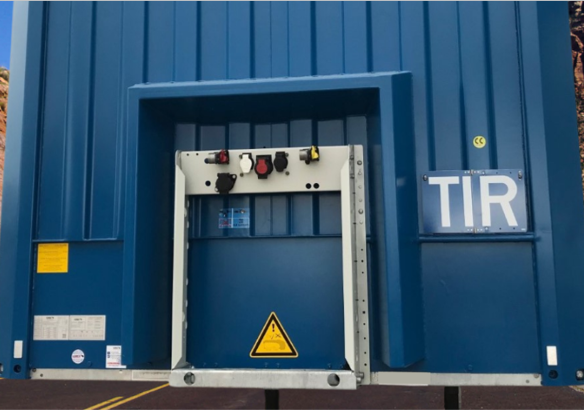

Front
Arka

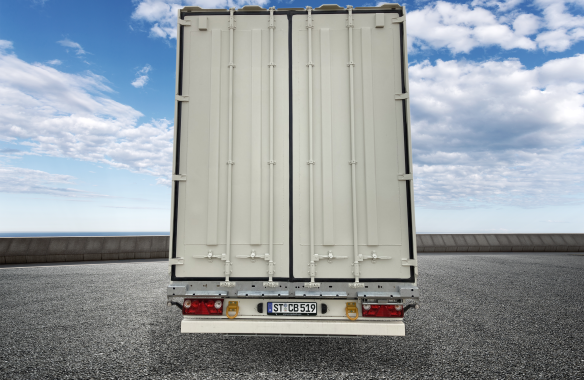

Double-folding door

Maximum safety with the double-hinged door. Depending on the transport conditions, with single or double locking.
Bilgi al

Underride protection

It’s easy for a trailer to become damaged while loading  onto the ferry,  due to the underride guard touching down, but the skid on the underride guard prevents this.. The underride guard has a load capacity of 18t.
Bilgi al
Zemin
S.CS curtainsider semi-trailer wooden floor for different stacker axle loads

Wooden floor

Durable and robust screen-printed floors available for different forklift axle loads (7.1 tonnes, 8 tonnes or 9.5 tonnes). Sealed floor plates prevent moisture from reaching the cargo from below.
Bilgi al

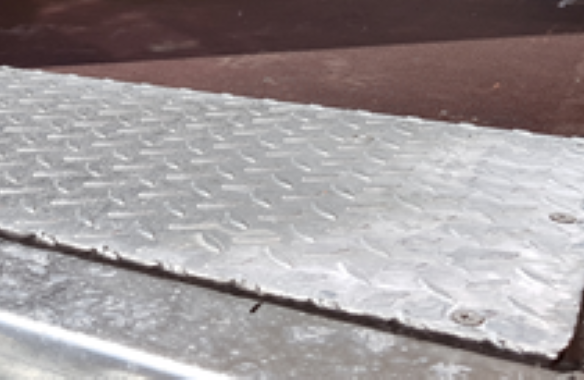

Floor panels at the rear portal

When frequently loaded with a forklift truck, the floor plate is subject to increased wear. For protection, an additional floor plate is installed at the rear portal, which extends the service life of the floor. The forklift axle load is 9.5 tonnes.
Bilgi al

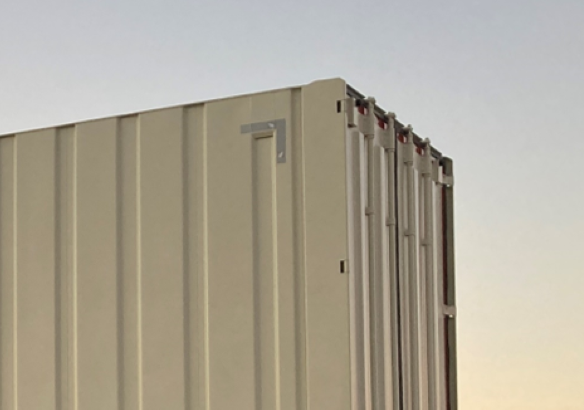

Side wall
  • Tyre pressure systems
  • Brake pad wear indicator
  • Blinkede Seitenmarkierungsleuchten
  • Elektronsiche Rampenanfahrhilfe
Lastik Basınç İzleme Sistemleri (TPMS)
The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring by TrailerConnect® immediately possible – if sensors are mounted on the tyre. The system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.
Bilgi al
Fren Balatası Aşınma Göstergesi
Brake pads always in sight

Fren Balatası Aşınma Göstergesi

Fren balatası aşınma göstergesi, fren balatasının değiştirilmesi gerektiğini erken aşamada bildirerek, karayolu trafiğinde daha yüksek güvenlik sağlar ve arıza süresi ile yüksek ek maliyetlerin önüne geçer.

Bilgi al
Yanıp Sönen Yan İşaret Lambaları

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash and signal to other road users that the vehicle is about to turn.
Bilgi al
Electronic ramp approach aid
Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.
Bilgi al
  • Lashing points and aids
Bağlama Noktaları ve Sabitleme Araçları
Flexible points for load securing

Lashing eyes

The lashing eyes, with a pulling force of up to 2 tonnes, provide flexible load securing points. Fits all common hooks for fast load securing.
Bilgi al

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

  • Internal body length13.585mm
  • External body length13.690mm
  • Internal body height2.480mm
  • Sidewall thickness35mm
  • Rear door thickness50mm
  • Roof thickness25mm
