S.BO Steel box

S.BO Steel box

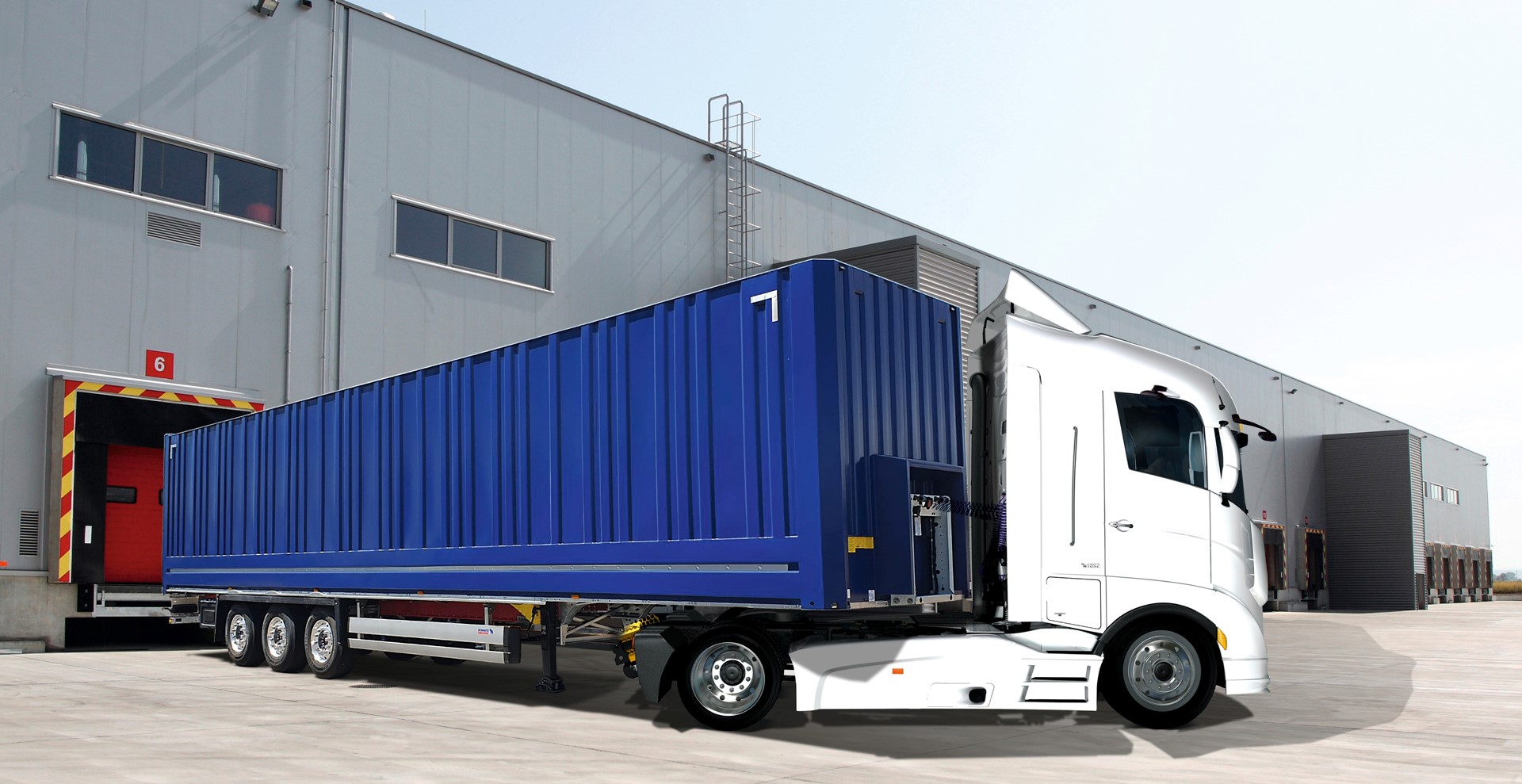

The steel box body of the S.BO is robust and reliably protects the goods in intercontinental freight traffic. Especially in unaccompanied ferry traffic, the S.BO is the ideal partner.

Your benefits

  • Beaded steel super structure for intercontinental ferrytransport, protects the goods and minimizes the risk of theft
    Daha fazlasını oku
  •  Body heights with up to 3,000mm usable interior height for maximum load volume of over 101m³
    Daha fazlasını oku
  •  Interior equipment with double deck* and keyhole plate for maximum flexibility in load securing
    Daha fazlasını oku
  • Body strength certified according to DIN EN 12642 Code XL
    Daha fazlasını oku

  • The rigid HD sheet metal constructions in the roof and side wall provide safety during loading and unloading.

    Daha fazlasını oku

  • Possible applications are: Transport with double deck system, clothes transport, transport of palletised goods.

    Daha fazlasını oku

  • The S.BO steel box body is the optimum combination of load securing and robustness.

    Daha fazlasını oku

  • Particularly suitable for transporting clothes rails that can be inserted into the matching keyhole plates.

    Daha fazlasını oku

Equipment packages

  • Sınır ötesi taşımacılık

    Sınır ötesi yük taşımacılığında daha fazla emniyet ve konfor için TIR donanım paketi. Kısa bekleme süreleriyle sınır işlemlerini daha hızlı halletmek istiyorsanız tam da aradığını şey.
    Daha fazlasını oku

  • Feribot donanımı

    Refakatli ve refakatsiz taşımacılık için feribot donanımı ile denizde emniyet. Aracın feribot üzerinde emniyete alınması için feribot bağlama noktaları, açık bir şekilde işaretlenmiş gerdirme noktaları ve takozlu arka koruma bariyeri, araç ile malın emniyetini ve korunmasını sağlıyor.
    Daha fazlasını oku

Übersicht

Chassis & running gear

  • Chassis
  • Running gear
Chassis

MODULOS - Chassis

Rolled MODULOS chassis has a repairfriendly design based on bolted, hot galvanised technology. It provides high value retention and low total cost of ownership as well as options to easily modify the modular system at any stage.
Bilgi al
Running gear

ROTOS

ROTOS axles with disc brakes for high traffic safety and lower total cost of ownership. Six years’ warranty on hub and tube, and more than 1 million ROTOS running gear sold to date.
Bilgi al
Axle lift for better traction

Lifting axle

The axles of ROTOS® running gear can optionally be equipped with a lifting function. The axle lift and starting aid increase efficiency, driving safety and traction, reducing tyre wear.

Bilgi al
The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.
Bilgi al

Body

  • Interior
  • Front
  • Rear
  • Floor
  • Side wall
Interior

The double-deck system

Flexible and higher utilisation of the vehicle due to the double deck system. Ideal for non-stackable cargo. The system enables gapless loading over two infinitely height-adjustable and divisible levels.
Bilgi al

The keyhole plate

The keyhole plate is ideal for transporting clothes, enabling easy transport of hanging clothes and piece goods.

Bilgi al
Front

Heavy duty protection

Additional protection against damage to the front by the attached front box.
Rear

Double-folding door

Maximum safety with the double-hinged door. Depending on the transport conditions, with single or double locking.
Bilgi al

Underride protection

It’s easy for a trailer to become damaged while loading  onto the ferry,  due to the underride guard touching down, but the skid on the underride guard prevents this.. The underride guard has a load capacity of 18t.
Bilgi al
Floor
S.CS curtainsider semi-trailer wooden floor for different stacker axle loads

Wooden floor

Durable and robust screen-printed floors available for different forklift axle loads (7.1 tonnes, 8 tonnes or 9.5 tonnes). Sealed floor plates prevent moisture from reaching the cargo from below.
Bilgi al

Floor panels at the rear portal

When frequently loaded with a forklift truck, the floor plate is subject to increased wear. For protection, an additional floor plate is installed at the rear portal, which extends the service life of the floor. The forklift axle load is 9.5 tonnes.
Bilgi al
Side wall

Air grille

Small openings in the side wall ensure that air can circulate in the body. This prevents condensation from forming in the interior.

Assist systems

  • Tyre pressure systems
  • Brake pad wear indicator
  • Blinkede Seitenmarkierungsleuchten
  • Elektronsiche Rampenanfahrhilfe
Pressure monitoring system
The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring by TrailerConnect® immediately possible – if sensors are mounted on the tyre. The system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.
Bilgi al
Brake pad wear indicator
Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.
Bilgi al
Flashing side marking lights
Side marking lights for enhanced road safety

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash and signal to other road users that the vehicle is about to turn.
Bilgi al
Electronic ramp approach aid
Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.
Bilgi al

Load securing

  • Lashing points and aids
Lashing points and aids
Flexible points for load securing

Lashing eyes

The lashing eyes, with a pulling force of up to 2 tonnes, provide flexible load securing points. Fits all common hooks for fast load securing.
Bilgi al

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

  • DIN EN 1264 Kod XL

    Sertifikalı üst yapı mukavemeti standart. DIN EN 12642 Kod XL uyarınca sertifikasyonlar ile Schmitz Cargobull'un üst yapıları, yük emniyeti ile ilgili güçlendirilmiş üst yapı taleplerini yerine getiriyor.
    Daha fazlasını oku
  • Daha fazlasını oku

Technical data

  • Internal body length13.585mm
  • External body length13.690mm
  • Internal body height2.480mm
  • Sidewall thickness35mm
  • Rear door thickness50mm
  • Roof thickness25mm

Our services

Service Contracts

With the right service contract, you retain full control over the costs and we make sure that you stay mobile!
Daha fazlaService Contracts
Service Partners keep you mobile and minimise your downtimes.

Telematic

TrailerConnect® telematics provides you with all the information you need about your vehicles.
Daha fazlaTelematic
TrailerConnect? telematics provides you with all the information you need on your trailers.

Financing

We will provide you with a customized offer with attractive conditions for the entire life cycle of your investment.
Daha fazlaFinancing
Individual quote with attractive terms and conditions for the entire lifecycle of your investment.
