S.BO OPENSIDER

With its fully side-opening doors, versatile usage options and improved accessibility, the S.BO OPENSIDER offers an efficient, safe and flexibl solution for te transport of non-refrigerated goods.

Your benefits

100% SMART - Integrated TrailerConnect^® telematics system with the CTU hardware ex works ensures transparent control of the vehicle fleet
Read more
Increased security:
Reduces the risk of injury by minimizing climbing into the truck.
Read more
Improved accessibility:
Side access to the load is ideal for urban environments or locations with limited rear access.
Read more
Certified safety and stability:
Structural strength in accordance with DIN EN 12642 Code XL for the safe transport of demanding dry freight.
Read more
Time and work efficiency:
Shortens turnaround time at loading bays and reduces dependence on specific loading bay configurations.
Read more
Better use of space:
Allows easy organization and access to specific items without having to unload everything.
Read more
Maximum flexibility in the loading process:
The S.BO OPENSIDER is available with either one-sided or two-sided opening side walls.
Read more
Proven dry freight performance:
The robust FERROPLAST® box body reliably protects goods from te weather and theft.
Read more

Chassis & running gear

Chassis
Running gear

Chassis

The MODULOS chassis offers greater reserves of power

MODULOS chassis

The MODULOS chassis provides greater reserves of strength with its higher distributed load and optimised weight. A robust trailer frame with single-section roll-formed I-beams provides excellent stability without thermal deformation.

Running gear

ROTOS

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.

Axle lift for better traction

Lifting axle

The axles of ROTOS^® running gear can optionally be equipped with a lifting function. The axle lift and starting aid increase efficiency, driving safety and traction, reducing tyre wear.

The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.

Body

Sidewall
Frontwall
Double-decker system
Rear
Floor
Roof

Side

Sidewall

The sidewall system allows fast and convenient handling, enabling the entire side to be opened or closed in under one minute, which reduces downtime and speeds up loading processes. Five interconnected door segments on each side ensure stable operation, with secure locking mechanisms at the front and rear of the semi-trailer body. Optionally for the European version a double-sided foldable wall is available, offering loading and unloading from both sides for greater flexibility in everyday transport operations.

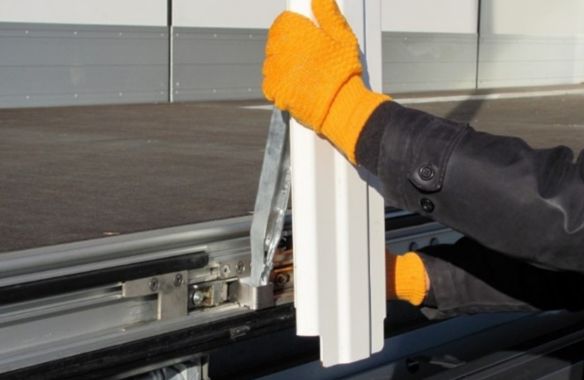

Sliding middle post 1

Sliding middle post

The sliding middle post design ensures longer durability of the side doors and allows easy, precise positioning. The sliding middle post can be detached from its central position and repositioned across the full width of the trailer for maximun flexibility during loading.

Frontwall

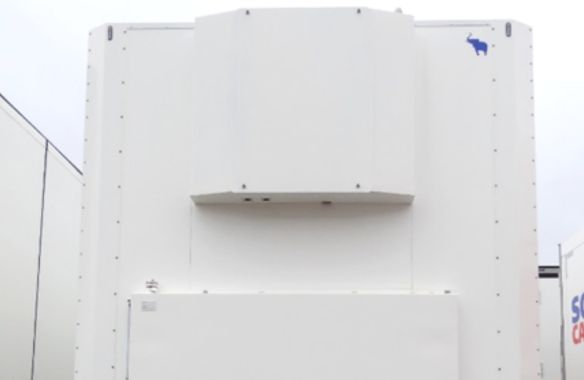

Heating unit

Heating unit

The heating unit option was developed to transporting temperature-sensitive goods in cold climates. It ensures consistently positive temperature inside the trailer body, making it suitable for products such as electronics, beverages, paints and various construction materials.

Interior

S.KO EXPRESS double-decker box body semi-trailer

Double-decker system

The double-decker system provides for flexible and greater utilisation of the semi-trailer. The system provides for gap-free loading using two infinitely height-adjustable and split levels. Ideal for non-stackable freight.

Rear

Aluminium rear door for the S.KO EXPRESS box body semi-trailer

Rear doors

The aluminium rear doors are corrosion-resistant, durable and lightweight.

Insulated roller shutter for the S.KO box body semi-trailer

Roller shutter

The insulated roller shutter ensures that there is no more lost time or lost refrigeration, as the trailer can be opened once it has reached the ramp.

Dynamic Ramp Protection System (DRP) offers protection when approaching the ramp

Dynamic Ramp Protection

The system protects the body when the trailer reverses up to a ramp. At the same time, stainless steel roller bumpers compensate for the trailer's change of height when it is approached by a forklift.

Reversing camera

A reversing camera assists the driver when reversing. Whether docking to ramps, manoeuvring within a confined space or in narrow streets, visibility to the rear provides greater safety and avoids damage.

Fast unloading even without a ramp with a tail lift for the S.KO box body semi-trailer

Tail lift

Thanks to its tail lift, loading and unloading is easy even without a ramp. The tail lift enables the trailer to be directly loaded and unloaded.

Floor

S.KO EXPRESS wear plates at the rear

Base plates at the rear portal

When a trailer is frequently loaded by forklift, the rearmost base plate is often exposed to increased wear and tear. To protect it, an additional base plate is fitted at the rear portal, extending the service life of the trailer.

Wooden floor for the S.KO EXPRESS box body semi-trailer

Wooden floor

Durable and robust perforated floors for different stacker axle loads. No moisture reaches the freight from below due to the sealed floor plates.

Roof

Full-length skylight in the S.KO EXPRESS box body semi-trailer for the best possible working conditions

Light roof

The full-length skylight ensures the best possible working conditions.

S.KO box body semi-trailer Ferroplast roof

FERROPLAST® roof

The standard FERROPLAST^®-insulated roof comes in various versions, ensuring excellent fuel efficiency and outstanding insulation.

Assist systems

Tyre pressure systems
Brake pad wear indicator
Flashing side marking lights

Pressure monitoring system

The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring by TrailerConnect® immediately possible – if sensors are mounted on the tyre. The system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.

Brake pad wear indicator

Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.

Flashing side marking lights

Side marking lights for enhanced road safety

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash and signal to other road users that the vehicle is about to turn.

Load securing

Restraint

Restraint

Load securing beams

Unpalletised freight can be secured by means of flush-mounted load securing rails. Load securing protection beams can be suspended as required, enabling the interior to be freely used.

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

DIN EN 1264 Code XL
Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
Read more
Read more

Technical data

Internal body length13.62m
Intenal body width2480mm
Internal body height2700mm
Pallet spaces33Euro pallets
