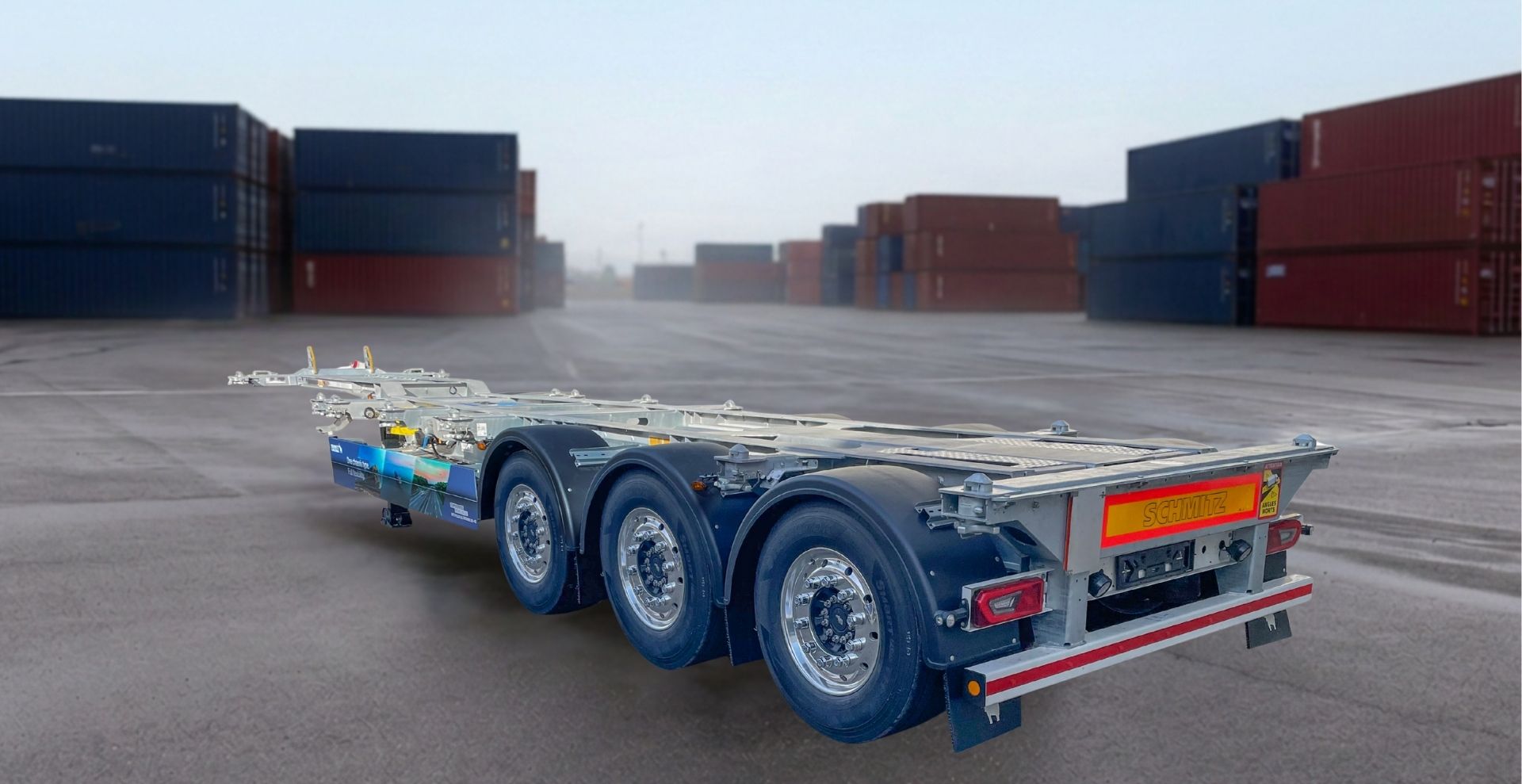

S.CF ALLROUND 20-45

Containerchassis-traileren S.CF ALLROUND 20-45 sørger for fleksibilitet, sikkerhed og rentabilitet. Containere fra 20' til 45' EU-containere med lang tunnel og skrå hjørner sikres ved hjælp af forskellige låsesystemer. Det udskydelige underkøringsværn fås som standard ved S.CF ALLROUND 20-45.

The S.CF Allround 20-45 semi-trailer container chassis delivers flexibility.

Dine fordele

Fleksibel: Forberedt til containere fra 20' til 45' med og uden tunnel
Læs mere
Valgfri: Låse til 40' og 45' containere uden tunnel
Læs mere
Gennemtænkt: 130 mm rammehalshøjde til maksimal 4.000 mm samlet højde
Læs mere
Praktisk: Pneumatisk udtræk bag, mekanisk frontudtræk
Læs mere
Søsikker: 2 par Ferry Lashings
Læs mere

Udstyr

Chassis
Chassis
Låseanordninger
Others

Chassis

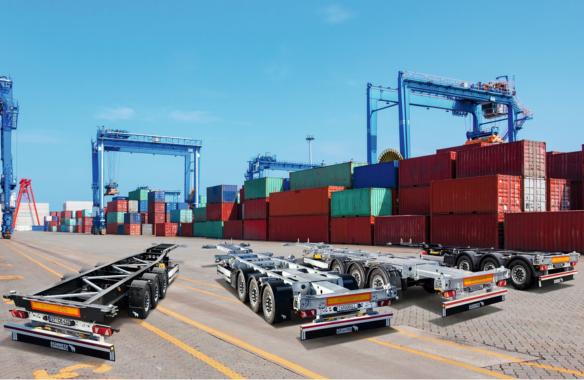

Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

Generelt

Schmitz Cargobull containerchassiser opbygges af højstyrke-stålprofiler og beskyttes systematisk mod korrosion.

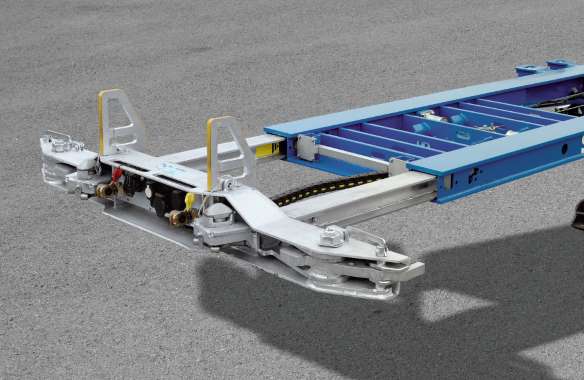

The Schmitz Cargobull spring-mounted, roller-borne front extension.

Frontudtræk

Det fjedrene frontudtræk på ruller til 45' containere er nemt, sikkert og tidsbesparende at betjene.

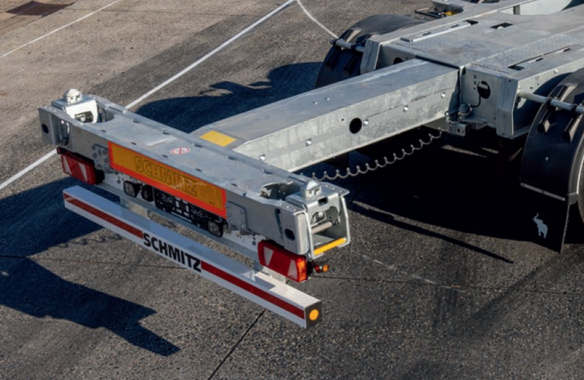

The rear extension can be pneumatically extended to the required container position.

Udtræk bag

Udtrækket i bagenden kan køres ud pneumatisk til den valgte containerposition.

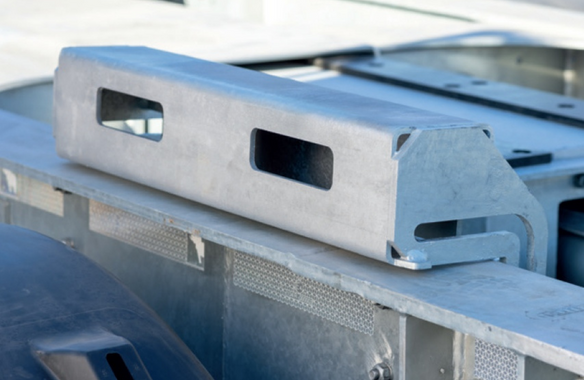

S.CF container support

Containerunderlag

Valgfri: Tre par sammenklappelige containerunderlag til 40'-/45'-containere uden tunnel.

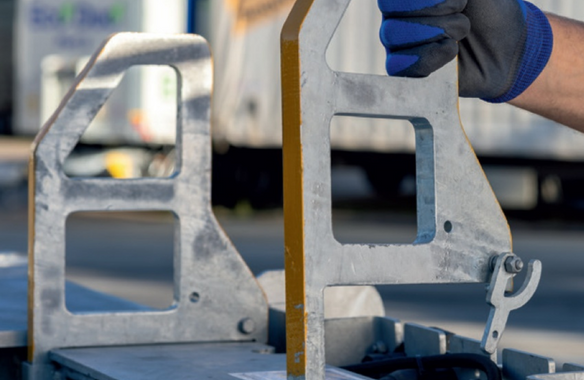

S.CF container guide

Containerføring

Containerføringer, der er sikret med kroge, forenkler nedsætningen af tunnelcontainere.

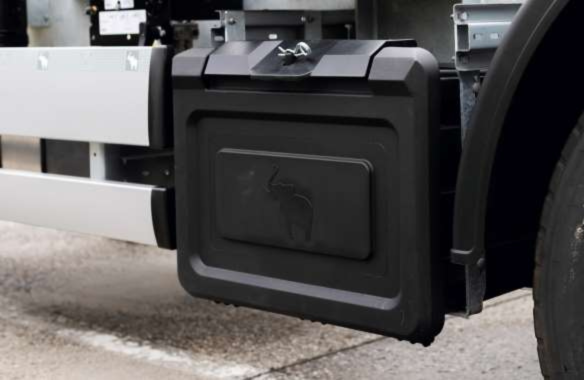

All the required equipment is stored in the tool box.

Værktøjskasse

Alle nødvendige værktøjer opbevares sikkert og ordentligt i den valgfrie, stabile værktøjskasse.

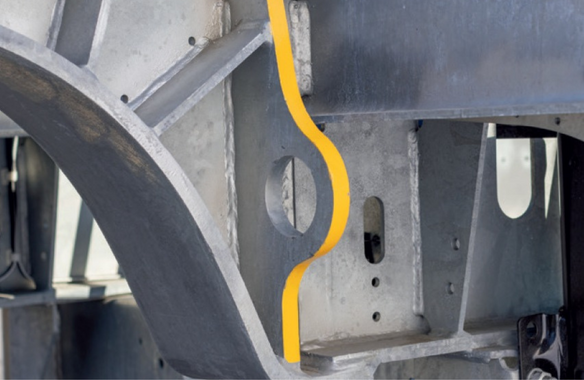

The semi-trailer container chassis can be equipped with ferry lashings for ferry transport.

Ferry lashings

Til færgetransport kan sættevognschassiset udstyres med Ferry Lashings.

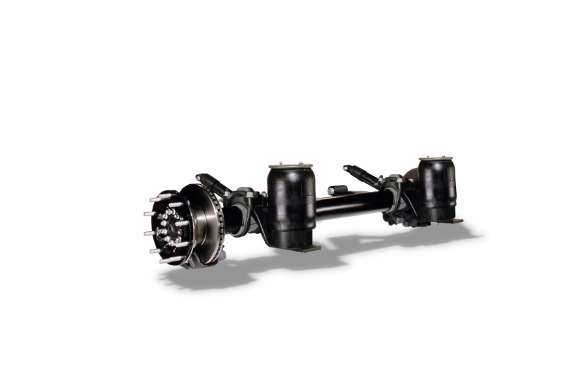

Running gear

Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

ROTOS-hjulophæng

Fremragende køreegenskaber ved hjælp af MRH-luftaffjedring (Multi-Ride-Height) som standardudstyr. De optimalt tilpassede komponenter sørger også i kontinuerlig drift for en pålidelig bremseeffekt.

The lift axle extends the wheelbase, increasing the pressure on the drive axle.

Automatisk aksellift

Den valgfrie liftaksel som starthjælp forlænger akselafstanden og øger dermed trykket på drivakslen.

Låseanordninger

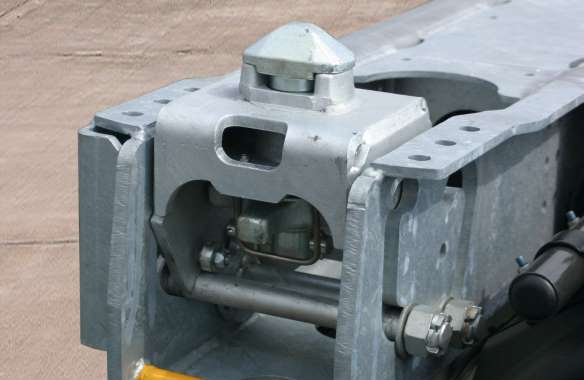

Your semi-trailer container chassis fits to the container in a matter of moments.

STEP LOCKs

STEP LOCKs på udtrækket i bagenden tilpasser containerchassiset med to håndtag til containere med og uden tunnel. Mulighed for nem ændring af låsehøjde.

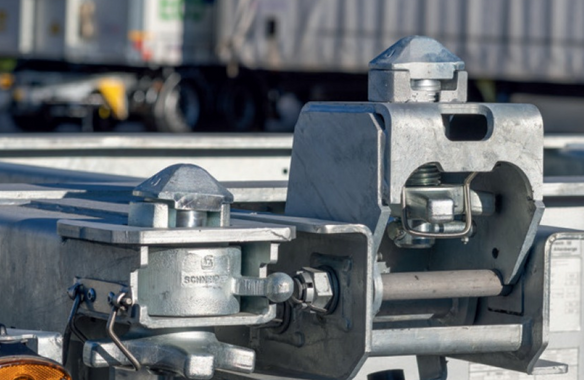

Fold up, let the safety hooks engage and mount the container.

KLAPP LOCKs

Ved læsning med 2x 20'-containere overtager to KLAPP LOCKs den bagerste aflåsning af den forreste container: Klap op, lad sikringskrogen gå i indgreb og containeren kan sættes på.

The Schmitz Cargobull spring-mounted, roller-borne front extension.

MULTI LOCKs

MULTI LOCK låsen på det mekaniske frontudtræk til optagelse af 45'-EF-containere sørger for fuld fleksibilitet.

Others

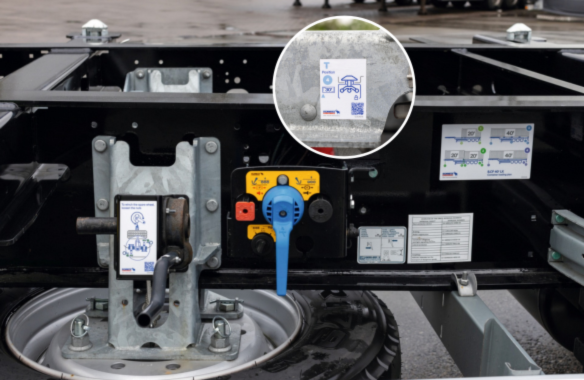

New operating concept

New operating concept with loading plan and clear function and warning notices on locks and extensions.

Brand generator set ex works for supplying power to refrigerated containers

Reliably maintaining the cold chain with containers

Reefer containers (20'/40'/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transportation. Schmitz Cargobull offers a complete ex-works solution for the S.CF ALLROUND 20-45 container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.

Brand generator set ex works for supplying power to refrigerated containers

Reliably maintaining the cold chain with containers

Reefer containers (20'/40'/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transportation. Schmitz Cargobull offers a complete ex-works solution for the S.CF ALLROUND 20-45 container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.

Brief Information: Transport solution for refrigerated containers
Download

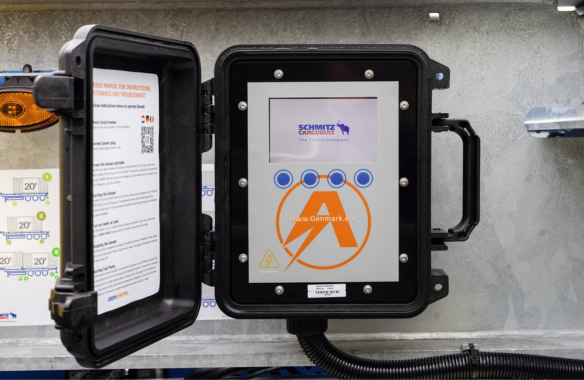

Control panel

The control panel with TFT monitor shows the operating status, consumption, total running time and the next maintenance date, among other things.

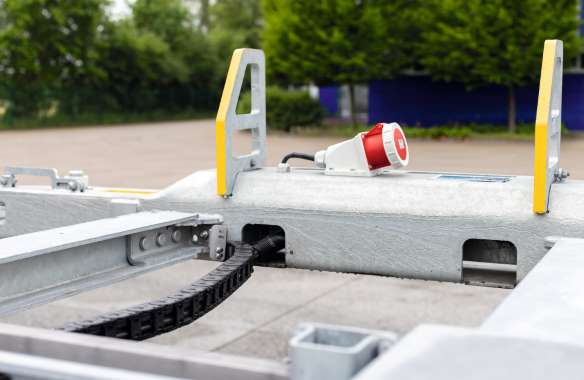

CEE socket

Easy handling: power supply to the refrigerated containers via the CEE socket on the front bar.

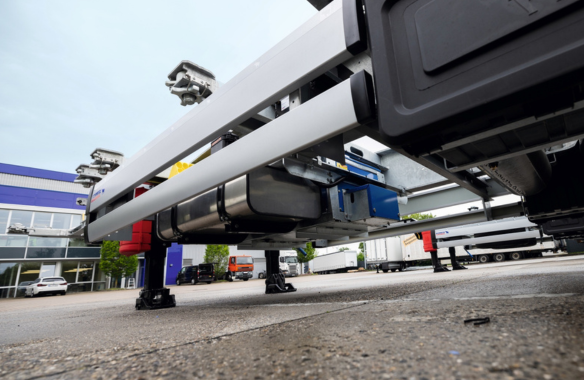

Diesel tank

130 litre diesel tank for continuous operation of refrigerated containers for several days.

Your advantages

One-stop shopping: complete solution ex works without additional effort by retrofitting at the service partner
Customised and reliable thanks to individual adaptation to the S.CF ALLROUND 20-45 container chassis
High ground clearance of approx. 310 mm
Self-sufficient power supply for up to 60 hours from remote units
Branded product with large service network
Immediately available from stock
