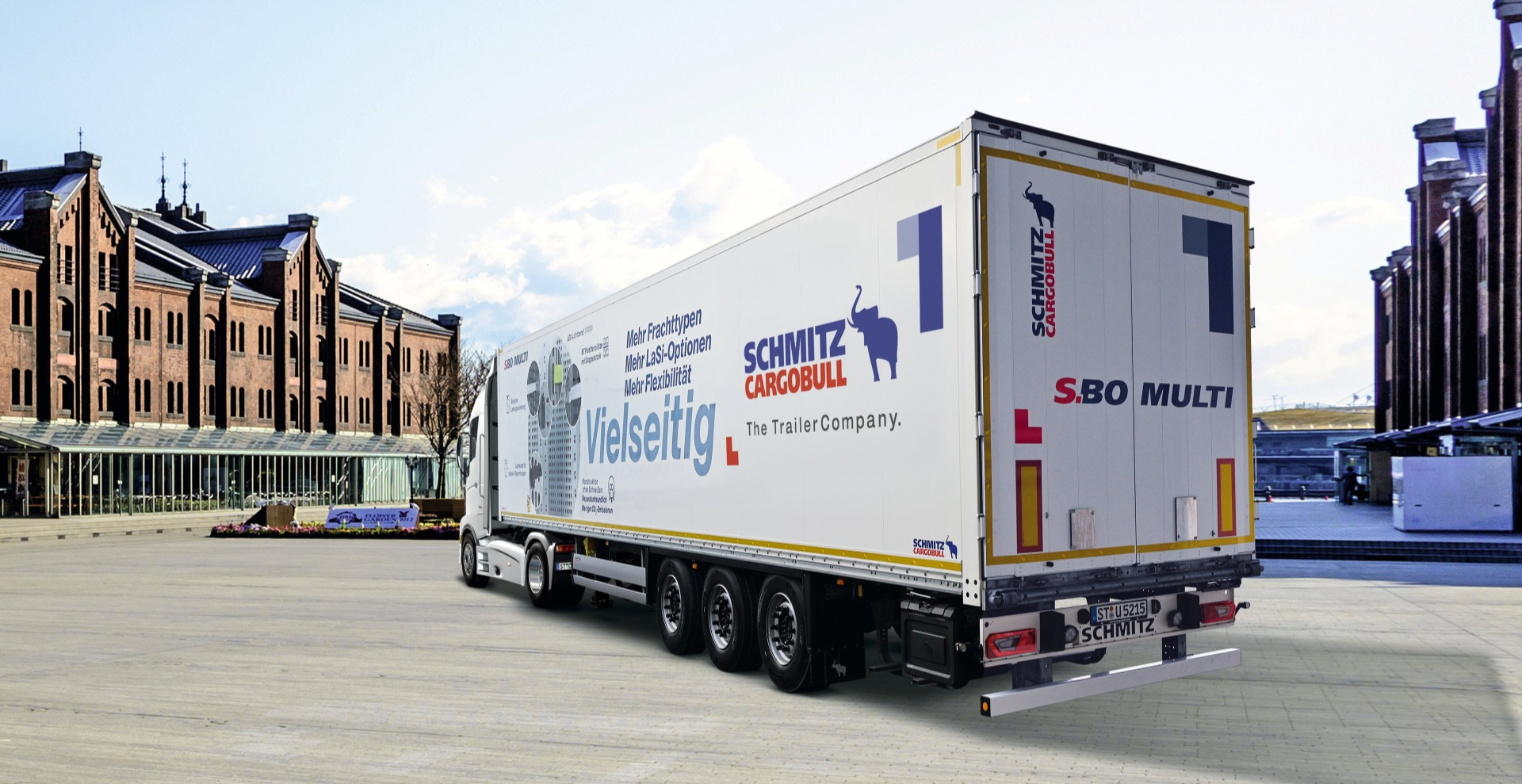

S.BO MULTI

S.BO MULTI

Whether it's palletised goods, general cargo or hanging garments – transporting a wide variety of freight types requires maximum adaptability. With its double-deck system and robust keyhole plates, the S.BO MULTI offers the perfect solution for efficient and safe transport.
Trockenfracht Auflieger S.BO MULTI

Your advantages

  • Robust construction
    Double-walled steel side walls for maximum stability and durability.
    Läs mer
  • Flexible load securing
    Keyhole plates and securing elements for every type of freight.
    Läs mer
  • Certified
    Structural integrity certified according to DIN EN 12642 Code XL.
    Läs mer
  • High transport capacity
    Up to 33 additional Euro pallets thanks to the double-deck system.
    Läs mer
  • Optimised for dry cargo
    Ideal for parcels, general cargo, vehicle parts and hanging garments.
    Läs mer
  • Individual equipment
    For tailor-made solutions, we offer the following options: roller doors, scuff plates, safety package, tail lifts, ventilation grilles and a second loading level.
    Läs mer
  • Intelligent telematics
    TrailerConnect® for real-time data and full transparency.
    Läs mer

Equipment packages

  • DB-utrustning

    Kombinerad trafik är ett effektivt alternativ, särskilt på långa avstånd. För optimal vertikal lastning har trailern greppkanter så att den lätt kan lastas med en lyftkran eller en reachstacker.
    Läs mer

  • Färjeutrustning

    Säker på sjön med färjeutrustning för kopplade och separata transporter. Färjeöglor för att säkra fordonet på färjan, tydligt markerade fästpunkter och ett underkörningsskydd med skena ger ökad säkerhet och skyddar fordonet och varorna.
    Läs mer

  • Gränsöverskridande transporter

    TIR-utrustningspaketet för ökad säkerhet och komfort vid gränsöverskridande godstransporter. Precis vad du behöver för att passera tullklareringen snabbare med kortare väntetider.
    Läs mer

Chassis & Running gear

  • Chassis
  • Running gear
Chassis
The MODULOS chassis offers greater reserves of power

MODULOS-chassi

MODULOS-chassin erbjuder större prestandapotential genom en högre sträcklast och en optimerad vikt. En robust fordonsram med valsprofilerade långbalkar som är tillverkade i ett stycke, ger en ökad stabilitet utan någon termisk förskjutning.
Få reda på mer
Running gear

ROTOS

Enastående köregenskaper genom MRH-luftfjädringen (Multi-Ride-Height) som ingår som standard. Tack vare det innovativa ventilationssystemet uppkommer det mindre värme och bromsbeläggen håller längre.
Få reda på mer

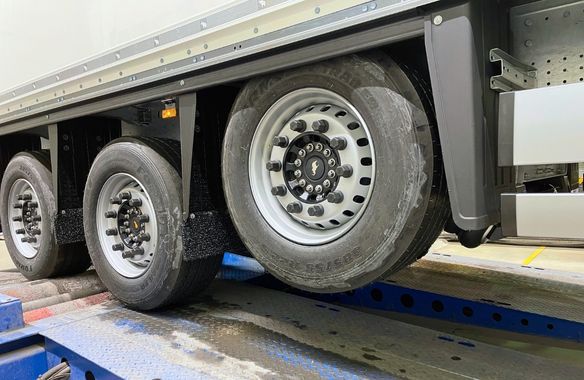

Liftable axle

ROTOS running gears can be optionally equipped with an axle lift function. The axle lift and the starting aid increase efficiency, driving safety and traction and reduce tire wear.

Få reda på mer
The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.
Få reda på mer

Body

  • Side wall
  • Interior
  • Rear
  • Floor
  • Roof
Side wall

Robust side wall for maximum stability

The double-shell steel construction ensures maximum strength and durability. Two different types of integrated columns reinforce the structure: one supports the double-deck rails, the other allows the installation of galvanised keyhole plates for flexible load securing.
Få reda på mer
Interior

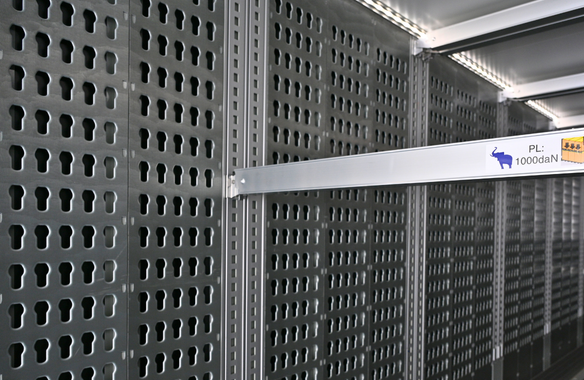

Double-decker system

The double-decker system provides for flexible and greater utilisation of the semi-trailer. The system provides for gap-free loading using two infinitely height-adjustable and split levels. Ideal for non-stackable freight.
Få reda på mer

Robust and corrosion-resistant keyhole plates

The galvanised keyhole plates offer maximum corrosion resistance and reduce rust and the need to replace components. The reinforced curvature provides additional stability when using securing elements such as rods and straps – even under high loads.
Få reda på mer
Rear

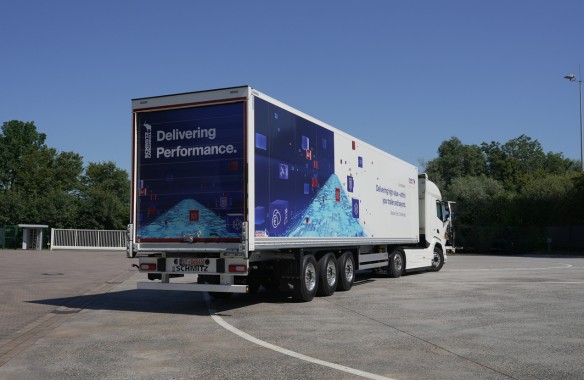

Schmitz Cargobull roller shutter

The roller shutter means that no more time is lost, as the vehicle can be opened after driving up to the ramp. The lightest roller shutter on the market with XL certification according to EN 12642 (payload 27 tonnes).
Få reda på mer

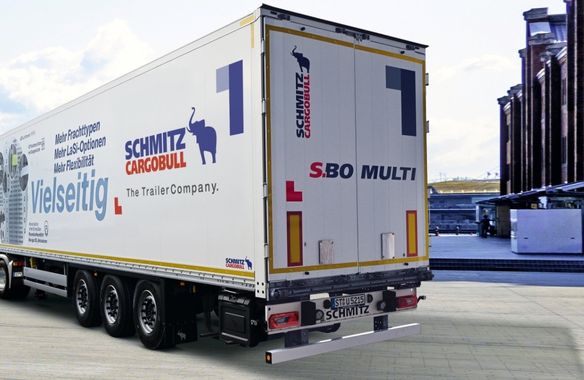

Rear doors

The aluminium rear doors are corrosion-resistant, durable and lightweight.
Få reda på mer

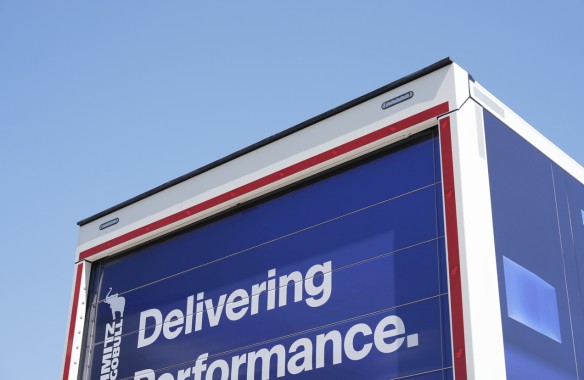

Upper marker lights

Safety light as a combination light in conjunction with marker, rear, brake and indicator lights.
Få reda på mer
Få reda på mer

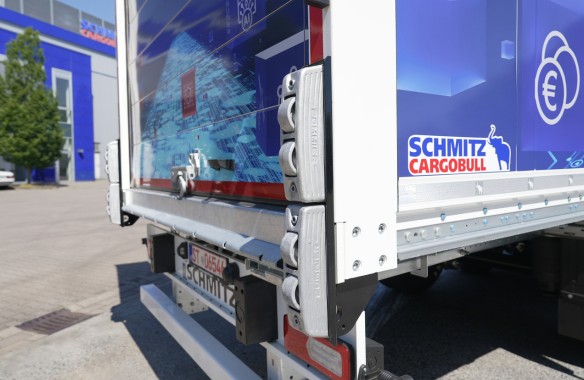

Heavy-duty rear package

The heavy-duty rear package consists of two double duo-rollers and a delta steel ram. This provides more protection for the trailer during loading and unloading.
Få reda på mer

Tail lift

Thanks to its tail lift, loading and unloading is easy even without a ramp. The tail lift enables the trailer to be directly loaded and unloaded.
Få reda på mer
Floor
Bodenblech am Heck

Base plates at the rear portal

When a trailer is frequently loaded by forklift, the rearmost base plate is often exposed to increased wear and tear. To protect it, an additional base plate is fitted at the rear portal, extending the service life of the trailer.
Få reda på mer

Wooden floor

Durable and robust screen-printed floors for various forklift axle loads. Sealed floor panels prevent moisture from reaching the cargo from below.
Få reda på mer

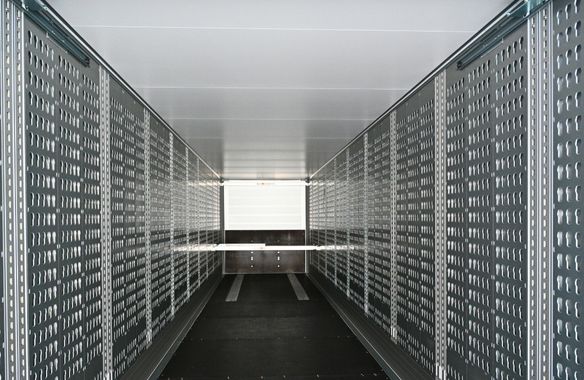

Roof

FERROPLAST® roof

The standard FERROPLAST®-insulated roof comes in various versions, ensuring excellent fuel efficiency and outstanding insulation.
Få reda på mer

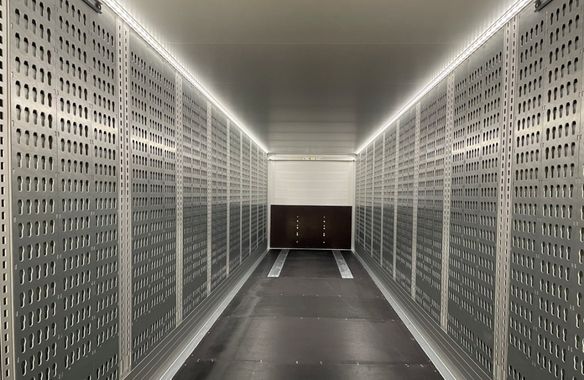

Improved interior lighting for more safety at work

With the new LED light strips is now even better illuminated and ensures more safety when loading and unloading at any time of day.
Få reda på mer

Assist systems

  • Tyre pressure systems
  • Brake pad wear indicator
  • Flashing side marking lights
  • Electronic ramp approach aid
Tyre pressure systems
The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring by TrailerConnect® immediately possible – if sensors are mounted on the tyre. The system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.
Få reda på mer
Control and timely information on tyre pressure with the tyre pressure system

Påfyllningssystem

Däckpåfyllningssystemet kontrollerar däcktrycket och efterfyller vid behov på egen hand. För ett lägre däckslitage och bättre köregenskaper, utan att du själv måste fylla på luft.
Få reda på mer

Brake pad wear indicator

Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.
Få reda på mer
Flashing side marking lights
Få reda på mer
Electronic ramp approach aid
Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.
Få reda på mer

Load securing

  • Load securing options
Load securing options

Load securing beam

Non-palletised freight can be secured using flush-mounted load securing rails. Load securing beams can be hooked in anywhere, leaving the interior space free to use.
Få reda på mer

Tension strap for keyhole plates

For maximum flexibility in load securing, secure the lashing at any position along the keyhole plates.
Få reda på mer

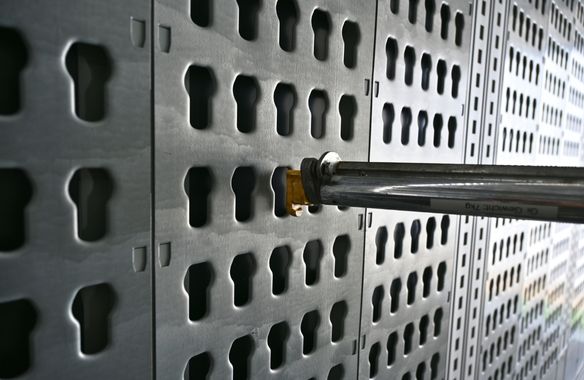

Clothes rails

Ideal for transporting hanging garments. Simply hook it in at one of the flexible points for a secure hold.
Få reda på mer

Tension strap for double-deck rails

Perfect for securing loads on the second level. Quick to attach, reliably fixed.
Få reda på mer

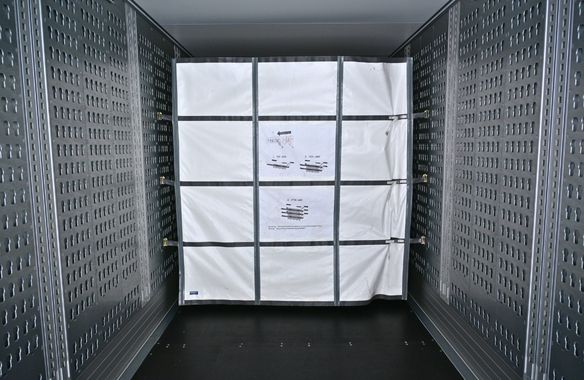

Safety curtain

The safety curtain is used to ensure the safety of the cargo. In addition, the curtain can be secured to the side wall in the load securing rails with the straps provided when the curtain is not needed.
Få reda på mer

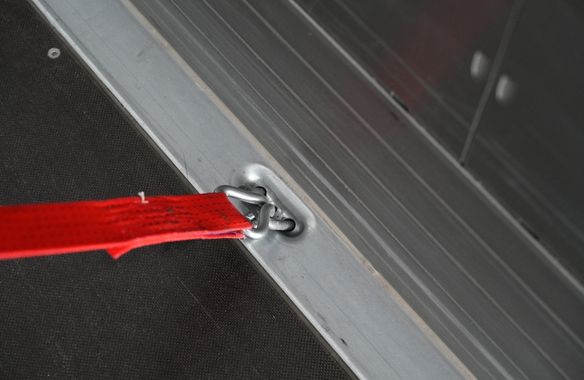

Lashing eyes

The lashing eyes, with a pulling force of up to 2 tonnes, provide flexible load securing points. Fits all common hooks for fast load securing.
Få reda på mer

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

  • DIN EN 1264 kod XL

    Certifierad karosshållfasthet som standard. Med certifieringen enligt DIN EN 12642 kod XL uppfyller påbyggnaderna från Schmitz Cargobull kraven på förstärkta påbyggnader för lastsäkring.
    Läs mer
  • Läs mer

Technical data

  • Internal body length13.62mkg
  • Intenal body width2,480mmmm
  • Internal body height2,700mm and 2,900mm
  • Pallet spacesUp to 67 Euro pallets
