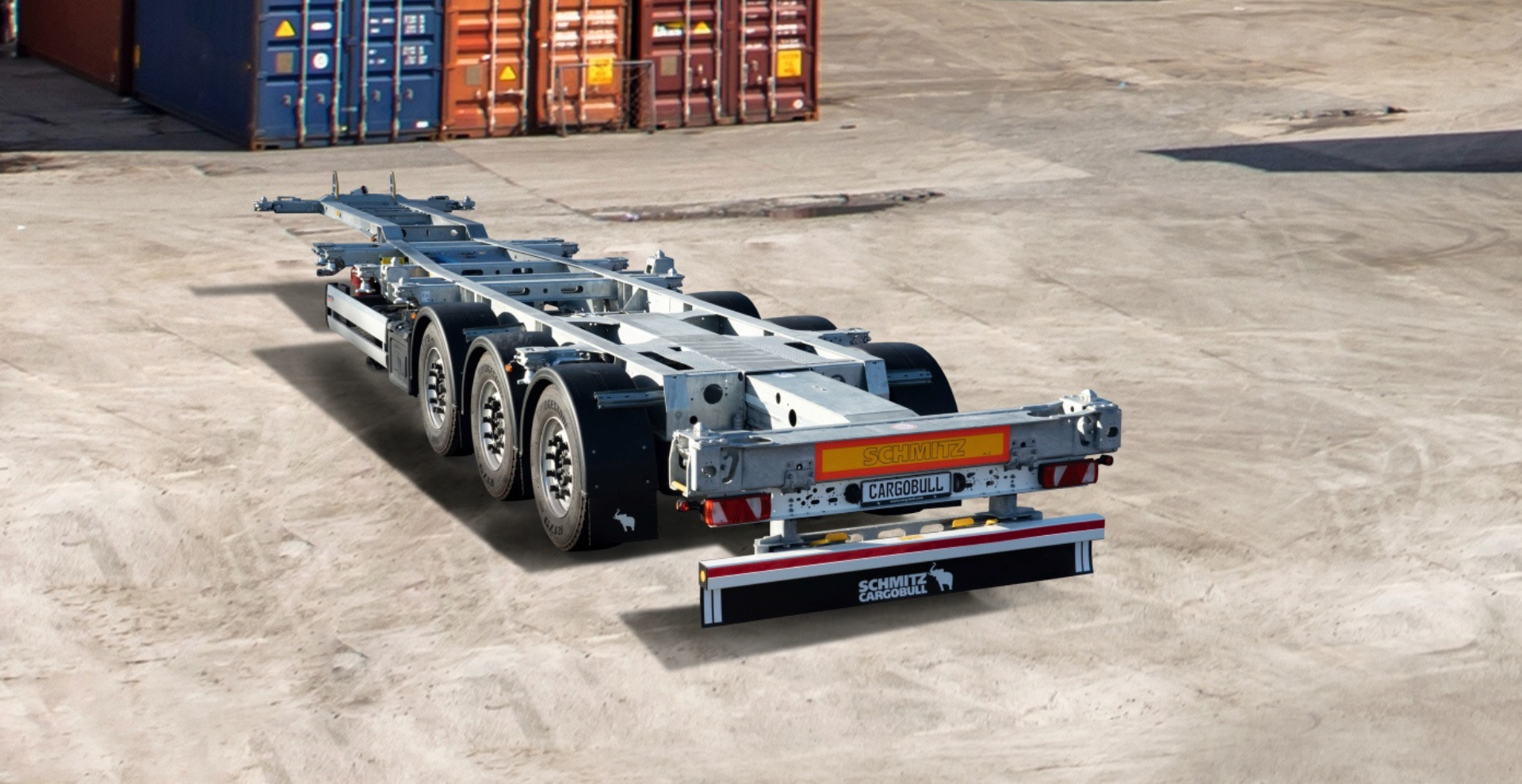

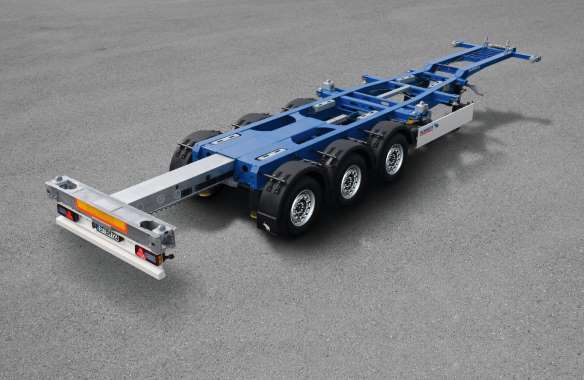

S.CF ALLROUND 20-45

Sadul-konteinerišassii S.CF ALLROUND 20-45 tagab paindlikkuse, turvalisuse ja ökonoomsuse. Pika tunneli ja kaldu nurkadega 20‘ kuni 45‘ EL konteinerid kindlustatakse erinevate lukustussüsteemidega. Väljalükatav allasõidukaitse on S.CF ALLROUND 20-45 puhul olemas seeriaviisiliselt.

The S.CF Allround 20-45 semi-trailer container chassis delivers flexibility.

Teie eelised

Paindlik: tunneliga ja tunnelita 20’ kuni 45’ konteinerite jaoks ette valmistatud
Lugege rohkem
Valikuliselt: lukustused tunnelita 40’ja 45’ konteineritele
Lugege rohkem
Läbi mõeldud: raamikaela kõrgus 130 mm maksimaalselt 4000 mm üldkõrgusele
Lugege rohkem
Praktiline: pneumaatiline tagumine väljalükkeosa, mehaaniline eesmine väljalükkeosa
Lugege rohkem
Merekindel: 2 paari Ferry Lashings
Lugege rohkem

Varustustunnused

Šassii
Veermik
Lukustused
Others

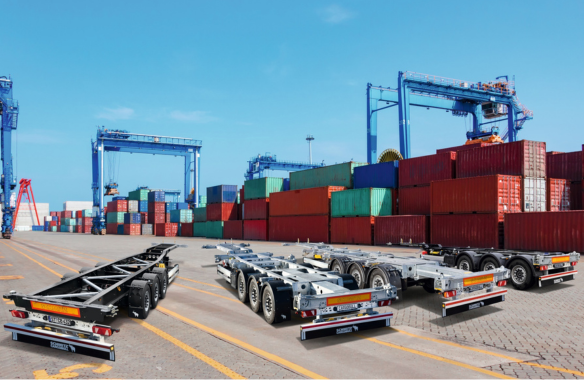

Chassis

Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

Üldist

Schmitz Cargobulli konteinerišassiid koostatakse kõrgtugevatest terasprofiilidest ja kaitstakse süsteemselt korrosiooni vastu.

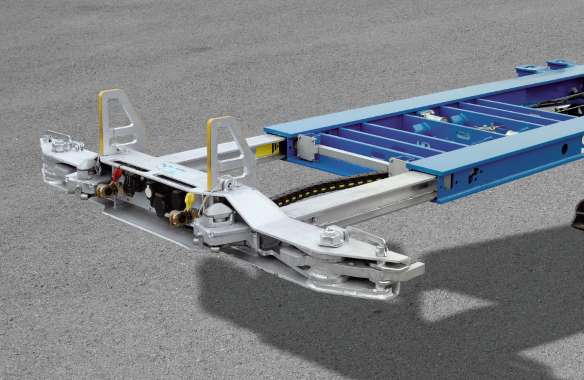

The Schmitz Cargobull spring-mounted, roller-borne front extension.

Eesmine väljalükkeosa

45’ konteinerite jaoks vetruvalt rullidele laagerdatud eesmist väljalükkeosa saab lihtsalt, turvaliselt ja ajasäästlikult käsitseda.

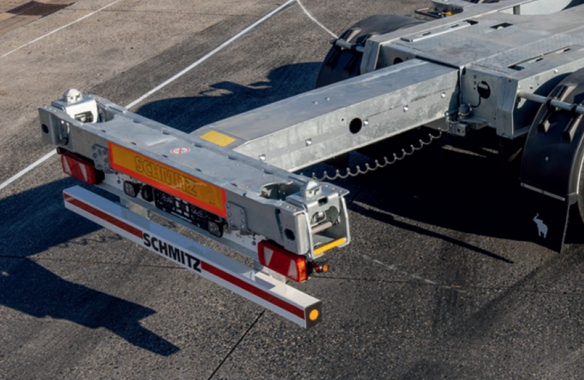

The rear extension can be pneumatically extended to the required container position.

Tagumine väljalükkeosa

Tagumist väljalükkeosa saab pneumaatiliselt valitud konteineripositsiooni välja sõidutada.

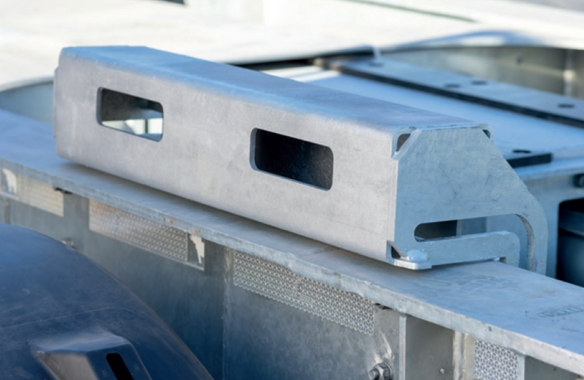

S.CF container support

Konteinerialused

Valikuliselt: Kolm paari klapitavaid konteinerialuseid tunnelita 40'/45' konteinerile.

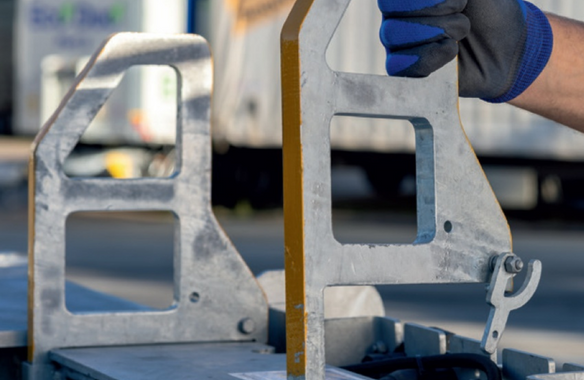

S.CF container guide

Konteinerisuunajad

Konksuga kindlustatud konteinerisuunaja lihtsustavad tunnelkonteinerite pealepanemist.

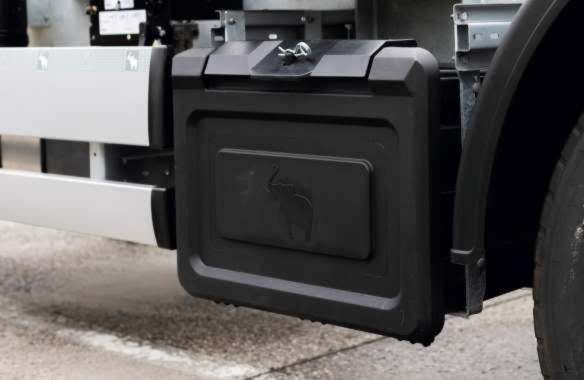

All the required equipment is stored in the tool box.

Tööriistakast

Kõik nõutavad seadiseid säilitatakse turvaliselt ja puhtalt optsionaalses, stabiilses tööriistakastis.

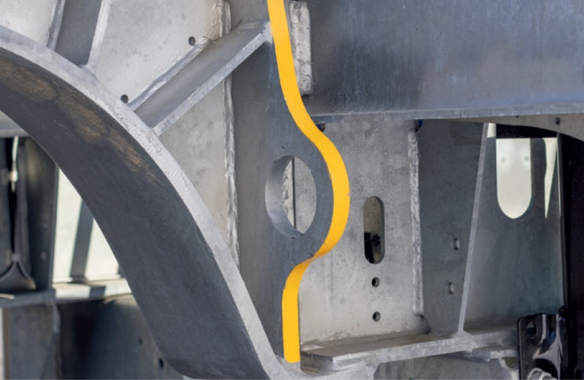

The semi-trailer container chassis can be equipped with ferry lashings for ferry transport.

Ferry Lashings

Praamivedudel kasutamiseks saab varustada sadul-konteinerišassii Ferry Lashings-itega.

Running gear

Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

ROTOS veermik

Suurepärased sõiduomadused seeriaviisilise MRH õhkvedrustuse (Multi Ride Height) tõttu. Optimaalselt kohandatud komponendid hoolitsevad ka püsirežiimis usaldusväärse pidurdusvõimsuse eest.

The lift axle extends the wheelbase, increasing the pressure on the drive axle.

Automaatne teljetõstuk

Optsionaalne tõstetelg kohaltvõtuabina pikendab teljevahet ja suurendab rõhku veoteljele.

Lukustused

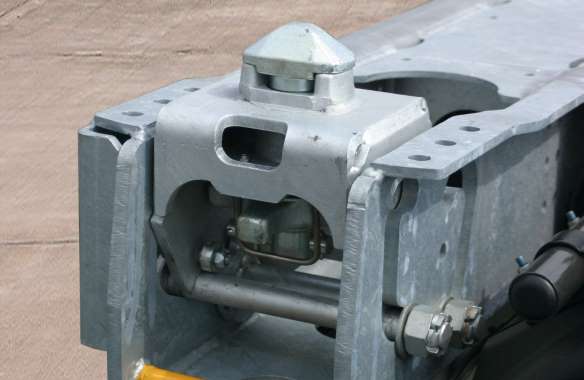

Your semi-trailer container chassis fits to the container in a matter of moments.

STEP LOCKid

STEP LOCKid tagumisel väljalükkeosal sobitavad konteinerišassii kahe võttega tunneliga ja tunnelita konteinerile. Lukustuskõrgust on võimalik lihtsalt vahetada.

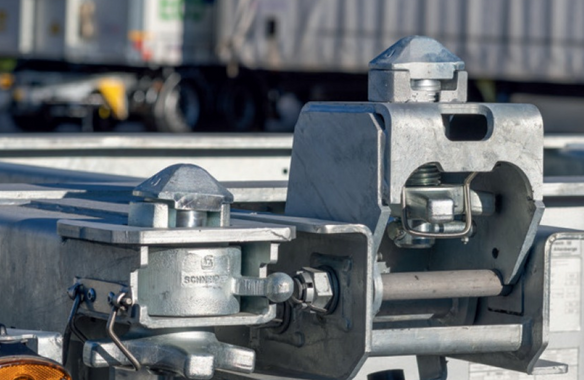

Fold up, let the safety hooks engage and mount the container.

KLAPP LOCKid

2x 20' konteineritega laadimise korral võtavad kaks KLAPP LOCKki üle eesmise konteineri tagumise lukustamise: Klappige üles, fikseerige kindlustuskonks ja konteineri saab peale panna.

The Schmitz Cargobull spring-mounted, roller-borne front extension.

MULTI LOCKid

MULTI LOCK lukustid mehaanilisel eesmisel väljalükkeosal 45‘ EÜ konteinerite vastuvõtmiseks hoolitsevad varieeritavuse eest.

Others

New operating concept

New operating concept with loading plan and clear function and warning notices on locks and extensions.

Brand generator set ex works for supplying power to refrigerated containers

Reliably maintaining the cold chain with containers

Reefer containers (20'/40'/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transportation. Schmitz Cargobull offers a complete ex-works solution for the S.CF ALLROUND 20-45 container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.

Brief Information: Transport solution for refrigerated containers
Download

Control panel

The control panel with TFT monitor shows the operating status, consumption, total running time and the next maintenance date, among other things.

CEE socket

Easy handling: power supply to the refrigerated containers via the CEE socket on the front bar.

Diesel tank

130 litre diesel tank for continuous operation of refrigerated containers for several days.

Your advantages

One-stop shopping: complete solution ex works without additional effort by retrofitting at the service partner
Customised and reliable thanks to individual adaptation to the S.CF ALLROUND 20-45 container chassis
High ground clearance of approx. 310 mm
Self-sufficient power supply for up to 60 hours from remote units
Branded product with large service network
Immediately available from stock
