Poljoprivredna industrija

Poljoprivredni proizvodi ili druga roba male nasipne gustoće mogu se transportirati čisto i sigurno u aluminijskom sandučastom koritu kiper poluprikolice S.KI LIGHT u izvedbi velike zapremnine.

TipKiper poluprikolica
3 m u nadogradnjiSandučasto korito od aluminija
količina38 - 59m³
Duljina tipa8,2 / 9,6 / 10,5
Visina korita1.900 -2.300mm
Osovine3
PodvozjeČelik
UporabaPoljoprivredni proizvodi / rasuti teret male nasipne gustoće (npr. žito, kukuruz, šećerna repa, krumpir) / paletizirana roba

The S.KI LIGHT bulk tipper semi-trailer with aluminium box body for agricultural and forestry goods

Vaše prednosti

Greater cost-effectiveness thanks to low unladen weight.
Pročitajte više
Improved stability and longer service life thanks to new intelligent design.
Pročitajte više
Individualne kombinacije različitih duljina, visina i debljina materijala.
Pročitajte više
Pomoću funkcija telematike TrailerConnect® imate pregled nad svim umreženim komponentama prikolice.
Pročitajte više
Zakrivljena, koljenasta šasija za malu utovarnu visinu i nisko težište za bolju stabilnost vožnje.
Pročitajte više
Za prijevoz komadne robe dostupna i u izvedbi u širini palete.
Pročitajte više
Rješenja za stražnju stranicu specifična za određenu primjenu.
Pročitajte više
Robust, welded steel chassis and off-road chassis.
Pročitajte više
Offset chassis for a low loading height and a lower centre of gravity for improved driving stability
Pročitajte više
10-year warranty against rust-through on the galvanised frame.
Pročitajte više

Šasija i vozni mehanizam

šasija
vozno postolje
Rasvjeta
montažni dijelovi

Chassis

Robust, hot galvanised and weight-optimised EXTRA LIGHT chassis

EXTRA LIGHT chassis

The robust, hot galvanised and weight-optimised EXTRA LIGHT chassis guarantees maximum payload and long-term value retention. Optional hot galvanising for the best possible corrosion protection.

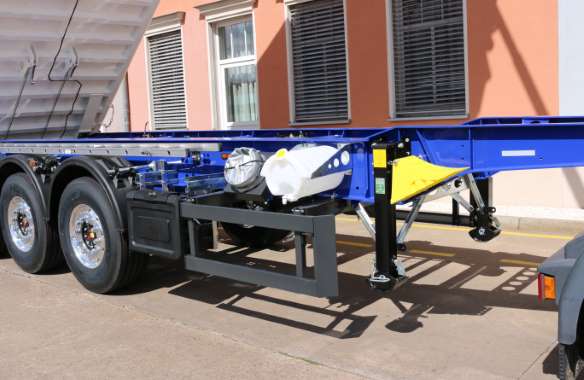

Reduced loading height with the offset EXTRA LIGHT chassis

Zakrivljena X-LIGHT šasija

Zahvaljujući šasiji sa zakrivljenim okvirom visine utovara i težišta manje su u usporedbi s ravnom šasijom za 160 mm. Opcionalno vruće pocinčavanje daje najbolju moguću zaštitu od korozije.

The steel chassis is reliable, durable, low-maintenance and ideal for off-road operation with excellent value retention.

Standardna šasija

Čelična šasija je opteretiva, laka za održavanje i prikladna za terensku vožnju. Konstrukcija otporna na torziju osigurava visoku nagibnu stabilnost šasije. Opcionalno vruće pocinčavanje daje najbolju moguću zaštitu od korozije.

Heavy-duty running gear and chassis for extremely tough road conditions

Heavy-duty chassis

Designed for use on poor-quality roads and extreme winter conditions, the Heavy-Duty running gear delivers maximum value retention and excellent safety. Optional hot galvanising for the best possible corrosion protection.

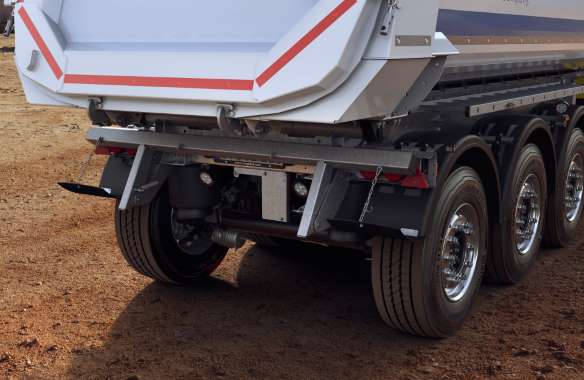

Preklopiva zaštita od podlijetanja

Preklopiva zaštita od podlijetanja - opcionalno preklopiva i na elektropneumatski pogon - i u podignutom stanju omogućuje veći slobodan prostor od poda radi istovara u finišer. Veća sigurnost: izmijenjena zaštita od podlijetanja tj. branik već sada ispunjava zakonske zahtjeve u skladu s ECE-R58.03. Opružni mehanizam za sklapanje olakšava rukovanje.

Više o novoj generaciji šasija

Running gear

Reliable mileage (km) with the ROTOS? axle

ROTOS

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.

Lifting axle for the S.KI tipper semi-trailer

Podizna osovina i pomoć pri pokretanju

Podizna osovina i pomoć pri pokretanju povećavaju učinkovitost, voznu sigurnost i vuču na terenu i stoga kod svake 3-osovinske kiper poluprikolice S.KI spadaju u standardnu opremu.

The paver brake controls the brake pressure during unloading

Paver brake

During operation of the road paver, the truck-trailer combination is pushed during tipping. The paver brake controls the brake pressure, preventing the semi-trailer from rolling away on sloping ground.

Rasvjeta

Lighting

A range of lighting options further ensures the best possible safety on the road and during operations.

Side marking lights for enhanced road safety

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash, signalling to other road users that the vehicle is about to turn.

montažni dijelovi

montažni dijelovi

Montažni dijelovi upotpunjavaju udobnu uporabu vozila i olakšavaju svakodnevni prijevoz. Samo neka od brojnih mogućnosti proširenja.

3 m u nadogradnji

korito, udubljenje
Krov i pokrovi
radna platforma
Stražnja strana
Pod i bočna stranica

korito, udubljenje

Aluminium box body

More payload, less weight: the light aluminium box body made from sturdy system profiles saves weight and increases efficiency. Optionally available with wear plates or plastic lining for additional protection.

Perfect balance of weight and volume – for maximum efficiency in the transport business.

<span style="font-size: 24px;">High-volume version</span>

Maximum loading capacity, excellent payload and, with an offset chassis, the high-volume version has a lower loading height. Various configuration options enable the aluminium box body to be individually tailored to the application.

krov

Roller curtain

The easy-to-use and robust body cover protects the load from moisture and dirt, especially during transport. An optional quick-release fastener saves time and simplifies operation.

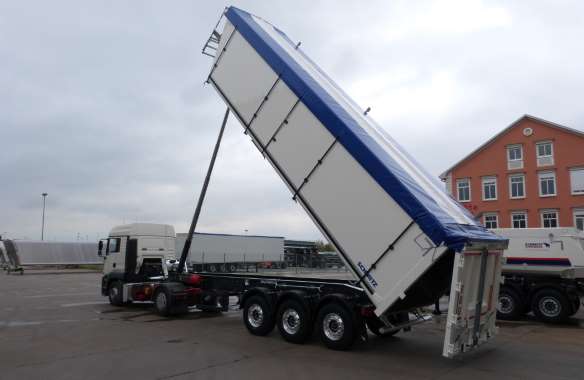

Arc-shaped roller tarpaulin for the S.KI tipper semi-trailer

Rolo krov u obliku luka

Rolo cerada može se brzo zatvoriti s tla pomoću srednjeg steznog remena. Kod ovog sustava krova nije potrebno zatezanje cerade na čeonoj i stražnjoj stranici.

radna platforma

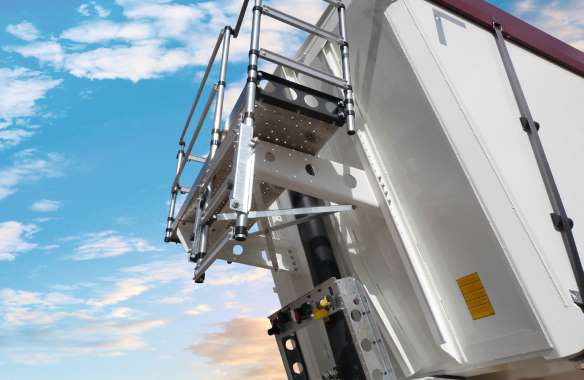

Standard working platform for the S.KI tipper semi-trailer

Radna platforma s podešavanjem visine

Stabilna aluminijska radna platforma optimizirane težine, po želji montirana na čeonu stranicu, pojednostavljuje rukovanje rolo ceradom i omogućuje visoku razinu sigurnosti.Individualno prilagođavanje visine podesta jednostavnim podešavanjem visine.

Rear

Rear

The more robust rear design ensures stability and durability even under heavy use.

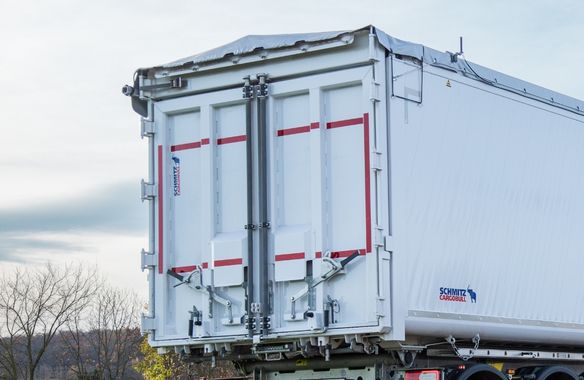

Various rear wall designs for the best possible unloading, optimally adapted to the respective transport task.

<p>Different rear wall versions</p><p></p>

There are a range of different rear wall versions to ensure the best possible unloading, perfectly adapted to every transport task.

Floor

Simply transport more with the aluminium box body of the S.KI LIGHT tipper semi-trailer

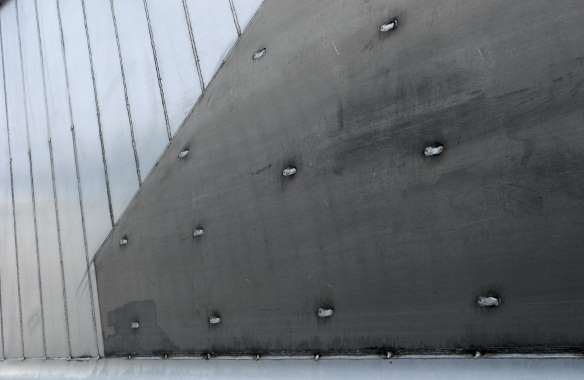

Zaštitni limovi

Kod čestog utovara i istovara pomoću agresivnih materijala posebno opterećena područja korita mogu se opremiti limovima za zaštitu od habanja čime se produžuje vijek trajanja korita.

Floor and side wall thicknesses

The body design features a robust floor and side wall construction that offers maximum stability and functionality even under heavy use. Thanks to the individual adaptation of the floor and side wall thicknesses to your specific application, you benefit from maximum cost-effectiveness and a long service life.

Sustavi pomoći

On-board weighing system
Sustavi tlaka u gumama
indikatora istrošenosti kočnih obloga

On-board weighing system

Digital on-board weighing system

The on-board weighing system enables the driver to determine and document the vehicle's payload at the loading site. There is no need to approach a stationary checkweigher, which saves fuel and time and reduces CO2 emissions. Operation is intuitive and can be carried out via the screen or the beSmart app. The loading data can be called up for the driver directly after the weighing process. With Schmitz Cargobull TrailerConnect® telematics, the data is transferred to the portal for further processing.

Pressure monitoring system

The Schmitz Cargobull tyre pressure control system.

TPMS with autolocation

The tyre pressure monitoring system displays when you need to top up air into a tyre. With autolocation the sensor is assigned to the correct tyre position. The Schmitz Cargobull sensor learns independently and records the tyre pressure and tyre temperature data. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.

S.KI_tyre pressure control_re-pressurisation_system

Tyre re-pressurisation system

The tyre re-pressurisation system checks the tyre pressure and automatically inflates the tyre if required. This results in lower tyre wear and improved driving characteristics.

Brake pad wear indicator

Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.

Naše usluge

Service Contracts

With the right service contract, you retain full control over the costs and we make sure that you stay mobile!

Više o:Service Contracts

Telematic

TrailerConnect® telematics provides you with all the information you need about your vehicles.

Više o:Telematic

Financing

We will provide you with a customized offer with attractive conditions for the entire life cycle of your investment.

Više o:Financing

Mediji

Brošura o kiper poluprikolicama S.KI
Download
Kratke informacije o kiper poluprikolicama S.KI LIGHT Volumen
Download
Brief Information On-Board Weighing system for Tipper-Semi Trailer S.KI
Download
