S.CF ALLROUND 20-45

S.CF ALLROUND 20-45 trailercontainerchassis sikrer fleksibilitet, sikkerhet og økonomi. Containere fra 20 'til 45' EU-containere med lange tunneler og skrånende hjørner er sikret med forskjellige låsesystemer. Den utvidbare underkjøringshindere er standard på S.CF ALLROUND 20-45.

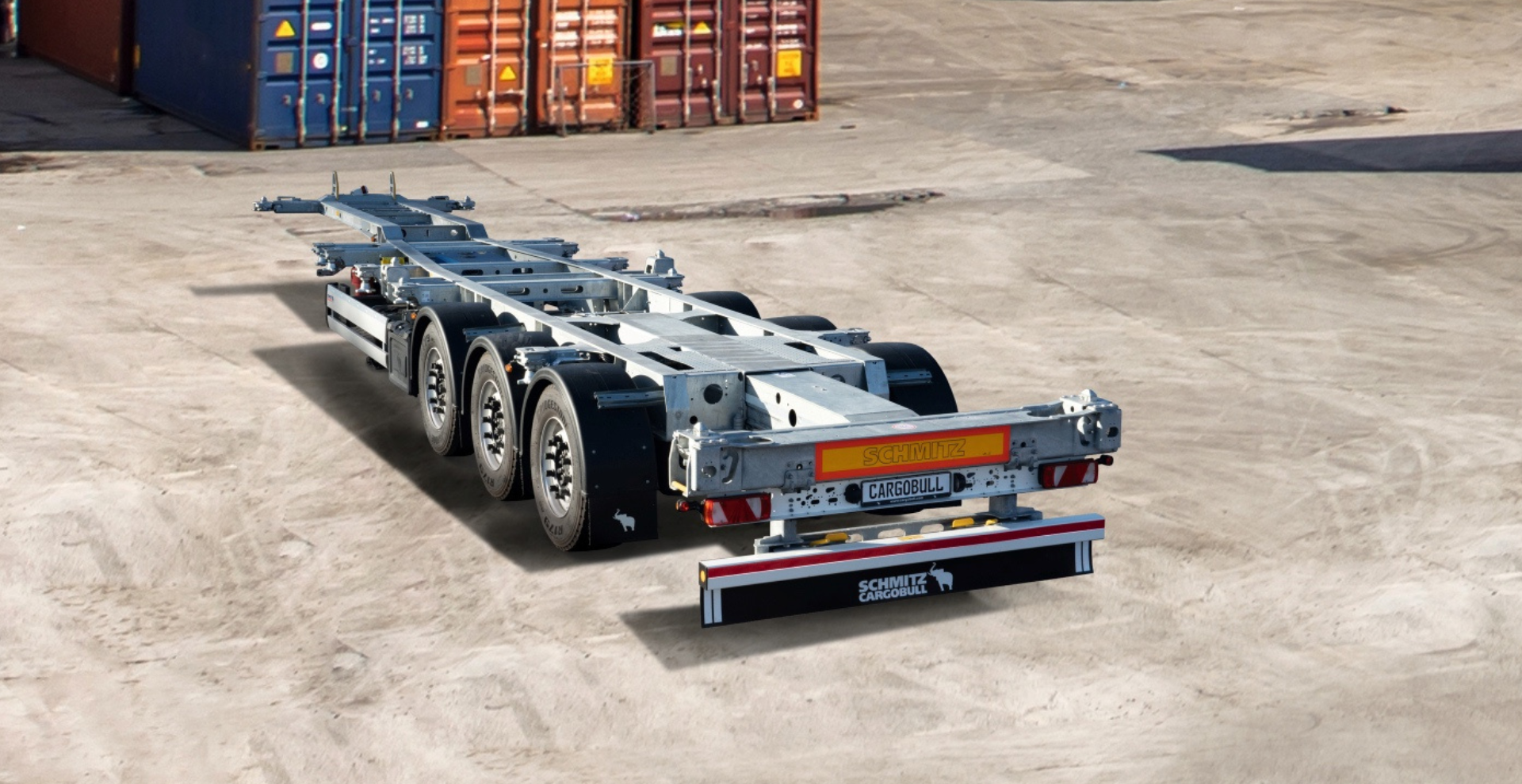

The S.CF Allround 20-45 semi-trailer container chassis delivers flexibility.

Dine fordeler

For a wide range of transport tasks
With mountings for 20' to 45' containers with or without tunnel
Les mer
Fleksibel: tilpasset for containere fra 20’ til 45’ med og uten tunnel
Les mer
Well thought-out
130 mm frame neck height for a maximum 4,000 mm overall height
Les mer
Valgfritt tilleggsutstyr: Låser for 40 'og 45' containere uten tunnel
Les mer
Gjennomtenkt: 130 mm rammehøyde for maksimalt 4 000 mm total høyde
Les mer
Praktisk: pneumatisk hekkekstender, mekanisk forlengelse foran
Les mer
Sjøfart: 2 par fergekroker
Les mer
Weight-optimised
The kerb weight has been reduced by up to 130 kg, increasing the payload and supporting efficient, cost-effective transport operations.
Les mer

Utstyrsfunksjoner

Chassis
Understell
Låsene
Others

Chassis

Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

Generelt

Schmitz Cargobull containerchassis er konstruert av høyfast stålprofiler og er systematisk beskyttet mot korrosjon.

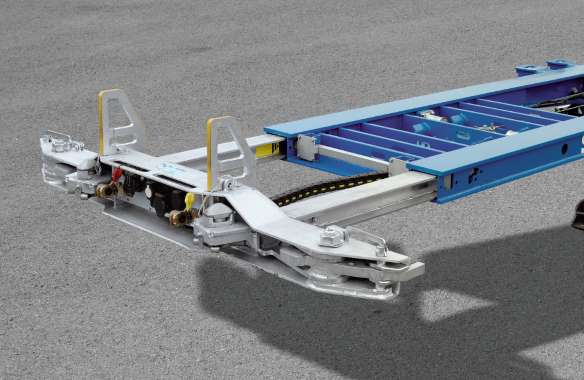

The Schmitz Cargobull spring-mounted, roller-borne front extension.

Front ekstender

Forlengelsen til 45”-containere, som er fjærmontert på ruller, betjenes enkel, sikker og tidsbesparende.

The rear extension can be pneumatically extended to the required container position.

Hekkekstender

Hekkekstenderen kan forlenges pneumatisk til valgt beholderposisjon.

S.CF container support

Containerstøtte

Valgfritt tilleggsutstyr: Tre par sammenleggbare containerstøtter for 40'-/45'-containere uten tunnel.

S.CF container guide

Containerguide

Kroksikrede containerguider forenkler oppsettet av tunnelcontainere.

All the required equipment is stored in the tool box.

Verktøyboks

Alt nødvendig utstyr holdes trygt og rent i den valgfrie, solide verktøykassen.

The semi-trailer container chassis can be equipped with ferry lashings for ferry transport.

Fergekroker

Semi-trailer container chassis kan utstyres med ferjebeslag for bruk i fergetrafikk.

Running gear

Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

ROTOS-akselaggregat

Utmerkede kjøreegenskaper takket være standard MRH luftfjæring (Multi-Ride-Height). De optimalt koordinerte komponentene sikrer pålitelig bremseevne selv ved kontinuerlig drift.

The lift axle extends the wheelbase, increasing the pressure on the drive axle.

Automatisk akselløft

Den valgfrie løfteakselen som starthjelp forlenger akselavstanden og øker derved trykket på drivakselen.

Låsene

Your semi-trailer container chassis fits to the container in a matter of moments.

STEP LOCKs

STEP LOCKs på den bakre forlengelsen tilpasser containerchassiset til containere med og uten tunnel i bare to trinn. Låsehøyden kan enkelt endres.

Fold up, let the safety hooks engage and mount the container.

KLAPP LOCKs

Under lasting med 2x 20'-containere, tar to KLAPP LOCK over baklåsen på den fremre containeren: Brettes oppover, fest sikkerhetskroken på plass, og beholderen kan settes på.

The Schmitz Cargobull spring-mounted, roller-borne front extension.

MULTI LOCKs

MULTI LOCK-låsesystemet på den mekaniske frontforlengelsen for å holde 45 ‘EC-containere sikrer full variasjon.

Others

New operating concept

New operating concept with loading plan and clear function and warning notices on locks and extensions.

Brand generator set ex works for supplying power to refrigerated containers

Reliably maintaining the cold chain with containers

Reefer containers (20'/40'/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transportation. Schmitz Cargobull offers a complete ex-works solution for the S.CF ALLROUND 20-45 container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.

Brand generator set ex works for supplying power to refrigerated containers

Reliably maintaining the cold chain with containers

Reefer containers (20'/40'/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transportation. Schmitz Cargobull offers a complete ex-works solution for the S.CF ALLROUND 20-45 container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.

Brief Information: Transport solution for refrigerated containers
Download

Control panel

The control panel with TFT monitor shows the operating status, consumption, total running time and the next maintenance date, among other things.

CEE socket

Easy handling: power supply to the refrigerated containers via the CEE socket on the front bar.

Diesel tank

130 litre diesel tank for continuous operation of refrigerated containers for several days.

Your advantages

One-stop shopping: complete solution ex works without additional effort by retrofitting at the service partner
Customised and reliable thanks to individual adaptation to the S.CF ALLROUND 20-45 container chassis
High ground clearance of approx. 310 mm
Self-sufficient power supply for up to 60 hours from remote units
Branded product with large service network
Immediately available from stock
