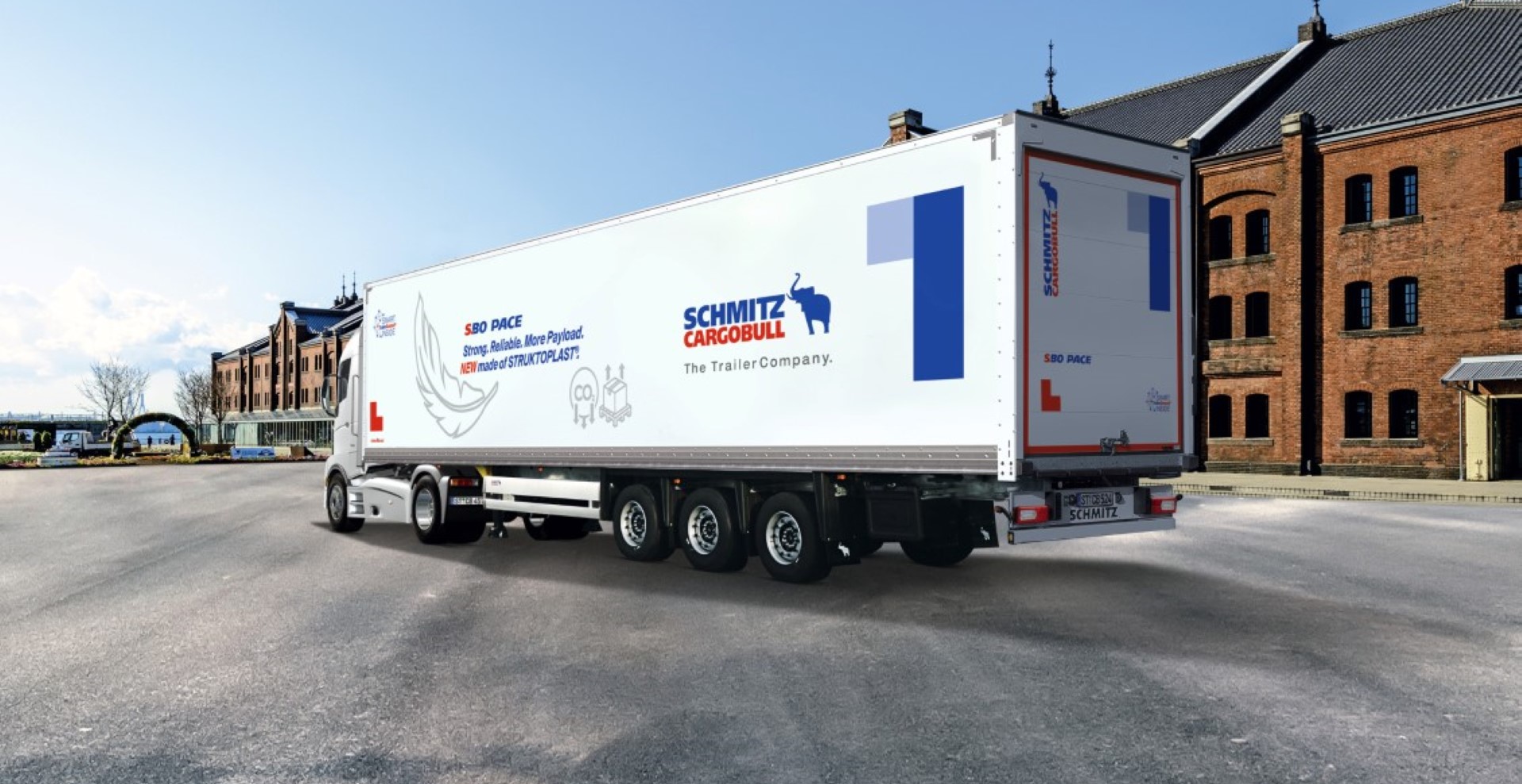

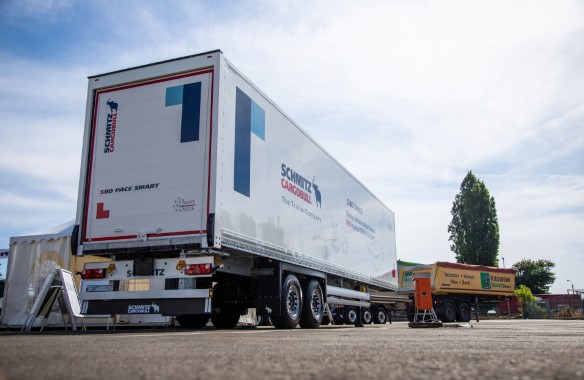

S.BO PACE

CEP transports must be quick, easy and environmentally friendly. You can always transport your goods safely in the S.BO PACE with its robust yet lightweight design. Whether fresh produce, general cargo or safety-relevant goods, the S.BO PACE is flexible. And the integrated telematics ensure complete transparency.

Your benefits

Innovative, stable lightweight body made of STRUKTOPLAST for more payload and less CO₂ emissions due to lower total weight

Les mer
100 % SMART - Integrated telematics TrailerConnect® with the CTU hardware ex works ensures transparent control of the vehicle fleet
Les mer
Optimal equipment for CEP services with roller shutter, light roof and tail lift
Les mer
Galvanised, rolled MODULOS chassis of the new generation - easy to maintain with 10-year warranty against rust-through
Les mer
Simplified load securing with load securing rails
Les mer
ROTOS axle unit with 1,000,000 km or 6-year warranty (excluding wear parts)
Les mer

Equipment packages

Fergeutstyr
Trygt til sjøs med fergeutstyret for ledsaget og uledsaget transport. Fergekroker for å sikre traileren på fergen, tydelig merkede surringspunkter og underkjøringshinder med sladder som sikrer sikkerhet og beskyttelse av traileren og varene.
Les mer

Chassis & running gear

Chassis
Running gear

Chassis

MODULOS - Chassis

Rolled MODULOS chassis has a repairfriendly design based on bolted, hot galvanised technology. It provides high value retention and low total cost of ownership as well as options to easily modify the modular system at any stage.

Running gear

ROTOS

ROTOS axles with disc brakes for high traffic safety and lower total cost of ownership. Six years’ warranty on hub and tube, and more than 1 million ROTOS running gear sold to date.

Axle lift for better traction

Lifting axle

The axles of ROTOS^® running gear can optionally be equipped with a lifting function. The axle lift and starting aid increase efficiency, driving safety and traction, reducing tyre wear.

The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.

Body

Rear
Floor
Roof
Site

Rear

Heavy-duty rear package

The heavy-duty rear package consists of two double duo-rollers and a delta steel ram. This provides more protection for the trailer during loading and unloading.

Aluminium rear door for the S.KO EXPRESS box body semi-trailer

Bakdør

Bakdøren av aluminium er korresjonsbestandig, holdbar og lett.

Upper marker lights

Safety light as a combination light in conjunction with marker, rear, brake and indicator lights.

Fast unloading even without a ramp with a tail lift for the S.KO box body semi-trailer

Løftelem

Med løftelem er lasting og lossing ikke noe problem selv uten en rampe. Løftelemmen muliggjør direkte lasting og lossing.

Schmitz Cargobull roller shutter

The roller shutter means that no more time is lost, as the vehicle can be opened after driving up to the ramp. The lightest roller shutter on the market with XL certification according to EN 12642 (payload 27 tonnes).

Floor

Wooden floor for the S.KO EXPRESS box body semi-trailer

Tregulv

Holdbare og robuste siltrykkgulv for forskjellige belastninger på gaffeltruckene. Forseglede gulvpaneler forhindrer at fuktighet når lasten fra undersiden.

S.KO EXPRESS wear plates at the rear

Gulvplate på bakport

Ved hyppig lasting med en gaffeltruck utsettes den siste gulvplaten for økt slitasje. En ekstra gulvplate er installert på den bakre portalen for beskyttelse, noe som forlenger levetiden.

Roof

Full-length skylight in the S.KO EXPRESS box body semi-trailer for the best possible working conditions

Lettak

Det kontinuerlige lettaket sikrer best mulig arbeidsforhold i traileren.

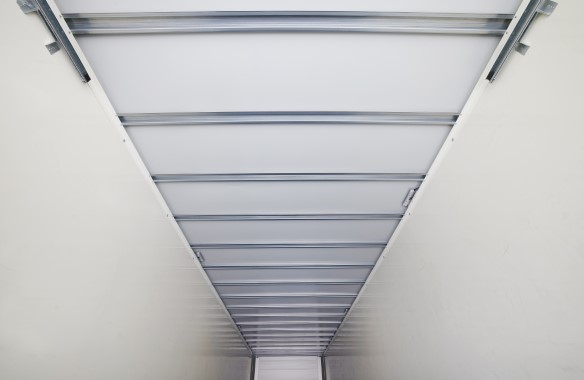

Aluminium roof

The aluminium roof and the reinforcing supports ensure a stable structure.

Site

Side walls made of STRUKTOPLAST

The STRUKTOPLAST® lightweight body reliably protects the goods from the weather and reduces the risk of theft.

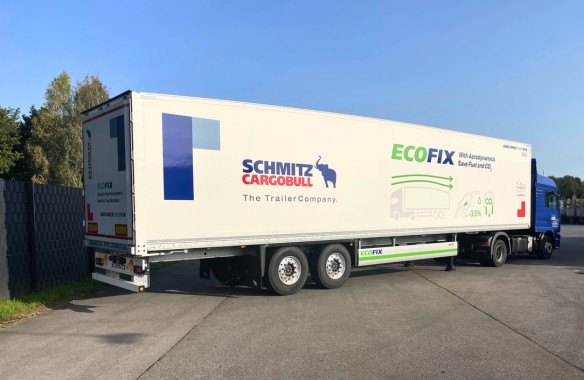

S.BO PACE EcoFIX

S.BO PACE EcoFIX

The S.BO PACE with aerodynamic EcoFIX body – with lowered rear, reduces air resistance, saves up to 3.5 % fuel and reduces CO2 emissions. For sustainable, economical CEP transport.

Assistance systems

Tyre pressure systems
Brake pad wear indicator
Flashing side marker light
Electronic ramp approach aid

Tyre pressure systems

Control and timely information on tyre pressure with the tyre pressure system

Etterfyllingssystem

Dekktrykkpåfyllingssystemet styrer dekktrykket og fyller autonomt om nødvendig. For mindre dekkslitasje og bedre kjøreoppførsel uten å måtte fylle deg selv igjen.

The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring by TrailerConnect® immediately possible – if sensors are mounted on the tyre. The system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.

Brake pad wear indicator

Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.

Flashing side marker light

Side marking lights for enhanced road safety

Sidemarkeringslys

De blinkende sidemarkeringslysene (SML) hjelper til med å forhindre ulykker under svinging. Hvis sjåføren aktiverer blinklysene, blinker også sidemarkeringslysene på semi-traileren og signaliserer til trafikantene under svinging pågår.

Electronic ramp approach aid

Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.

Load securing

Restraint

Restraint

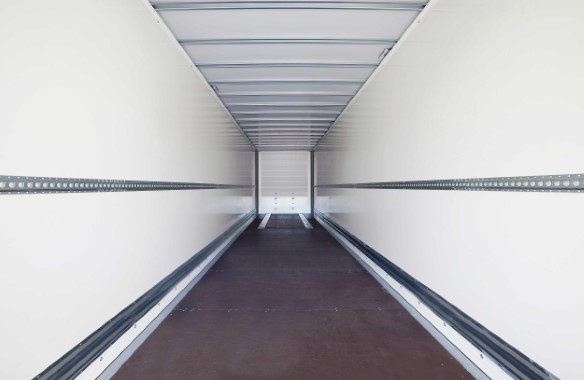

Load securing rails

Unpalletised freight can be secured by means of load securing rails. Load securing protection can be suspended as required, enabling the interior to be freely used.

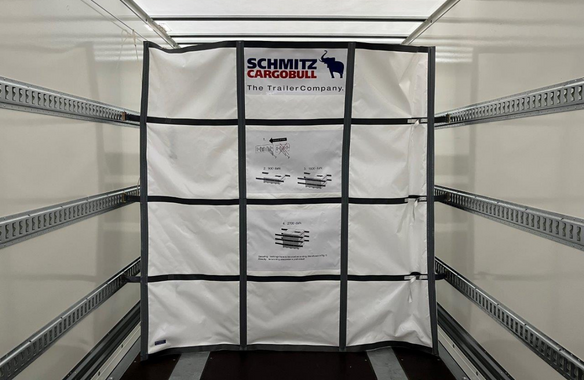

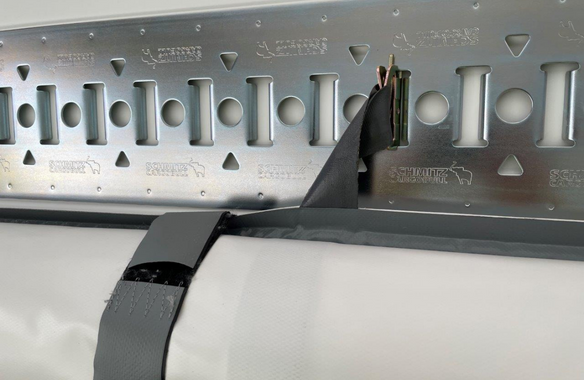

Safety curtain

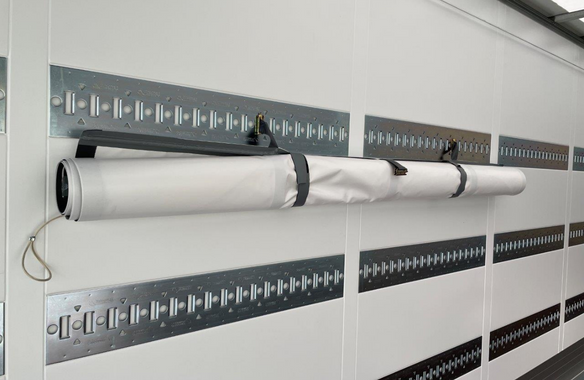

The safety curtain is used to ensure the safety of the cargo. In addition, the curtain can be secured to the side wall in the load securing rails with the straps provided when the curtain is not needed.

Technical data

Internal body length13.62m
Intenal body width2490mm
Interior height2,610, 2,710, 2,810 and 3,210mm
Unladen weightfrom 5,600kg
Aggregate load24,000kg
Saddle load15,000kg
Pallet spaces34Euro-paller

Download

Brief information S.BO PACE
Download
