S.BO MULTI

S.BO MULTI

Whether it's palletised goods, general cargo or hanging garments – transporting a wide variety of freight types requires maximum adaptability. With its double-deck system and robust keyhole plates, the S.BO MULTI offers the perfect solution for efficient and safe transport.

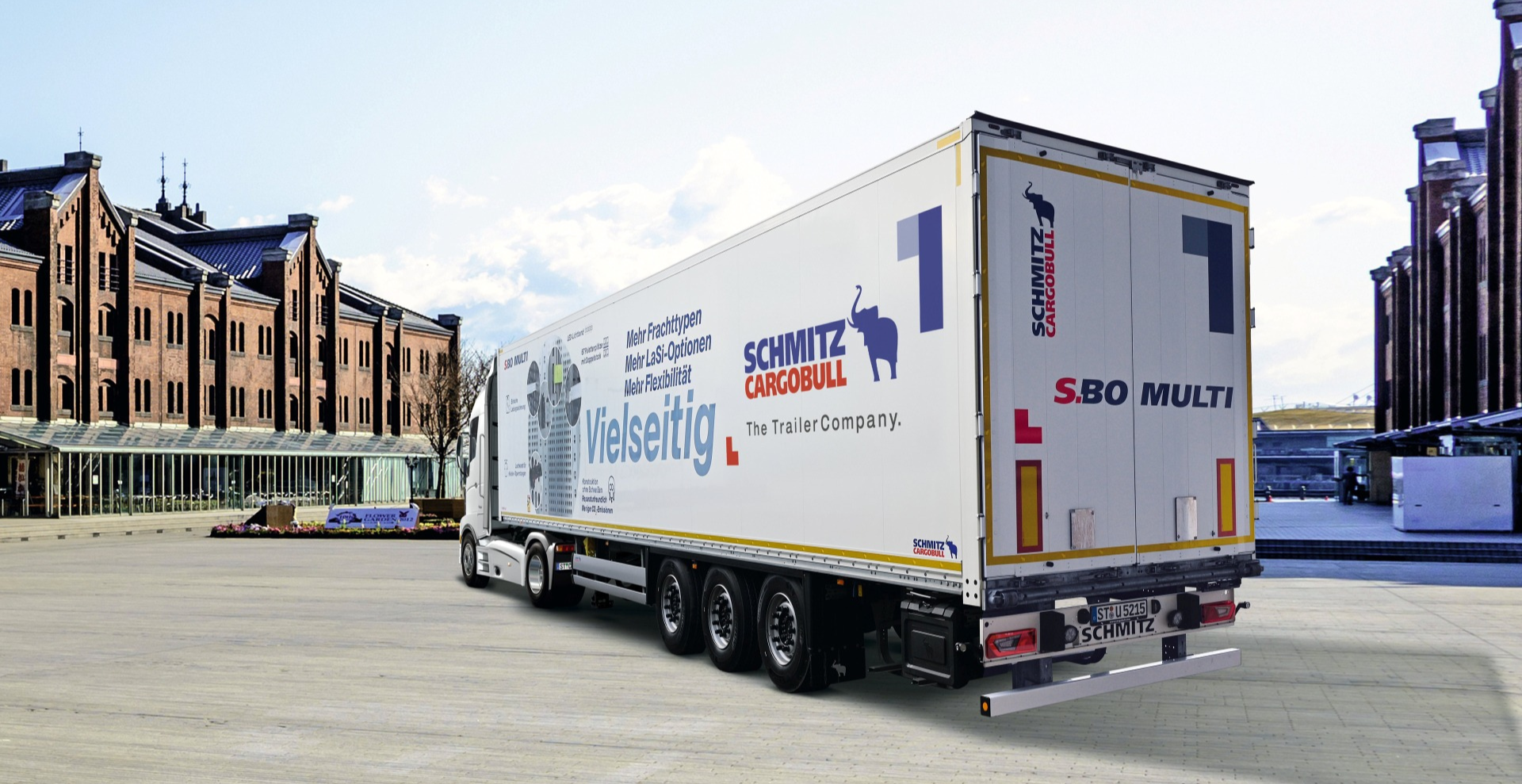

Trockenfracht Auflieger S.BO MULTI

Your advantages

  • Robust construction
    Double-walled steel side walls for maximum stability and durability.
    Les mer
  • Flexible load securing
    Keyhole plates and securing elements for every type of freight.
    Les mer
  • Certified
    Structural integrity certified according to DIN EN 12642 Code XL.
    Les mer
  • High transport capacity
    Up to 33 additional Euro pallets thanks to the double-deck system.
    Les mer
  • Optimised for dry cargo
    Ideal for parcels, general cargo, vehicle parts and hanging garments.
    Les mer
  • Individual equipment
    For tailor-made solutions, we offer the following options: roller doors, scuff plates, safety package, tail lifts, ventilation grilles and a second loading level.
    Les mer
  • Intelligent telematics
    TrailerConnect® for real-time data and full transparency.
    Les mer

Equipment packages

  • DB-utstyr

    Kombinert transport er et økonomisk alternativ, spesielt over lange avstander. For optimal vertikal håndtering har trailerne gripekanter som tilhengerne enkelt kan lastes med en kran eller rekkeviddestabler.
    Les mer

  • Fergeutstyr

    Trygt til sjøs med fergeutstyret for ledsaget og uledsaget transport. Fergekroker for å sikre traileren på fergen, tydelig merkede surringspunkter og underkjøringshinder med sladder som sikrer sikkerhet og beskyttelse av traileren og varene.
    Les mer

  • Grenseoverskridende trafikk

    TIR utstyrspakke for mer sikkerhet og komfort i grenseoverskridende godstrafikk. Nøyaktig hva du trenger hvis du ønsker å komme deg raskere gjennom grenseklaringen med kortere ventetid.
    Les mer

Chassis & Running gear

  • Chassis
  • Running gear
Chassis
The MODULOS chassis offers greater reserves of power

MODULOS-chassis

MODULOS-chassiset gir større strømreserver på grunn av høyere linjelastning og optimalisert vekt. En robust trailerramme med rulleprofilerte lange elementer laget i ett stykke sikrer høy stabilitet uten termisk forvrengning.
Lær mer
Running gear

ROTOS

Utmerkede kjøreegenskaper takket være standard MRH luftfjæring (Multi-Ride-Height). Det innovative ventilasjonssystemet skaper mindre varme og bremseklossene holder seg lenger.
Lær mer

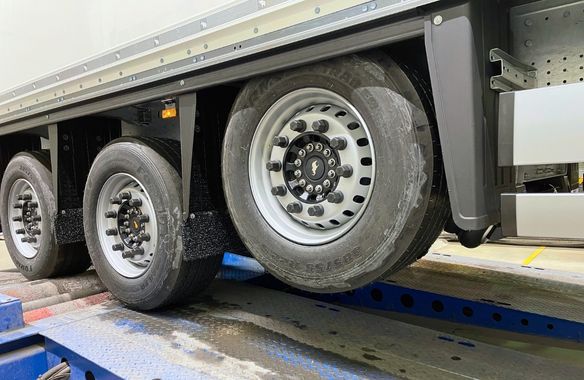

Liftable axle

ROTOS running gears can be optionally equipped with an axle lift function. The axle lift and the starting aid increase efficiency, driving safety and traction and reduce tire wear.

Lær mer
The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.
Lær mer

Body

  • Side wall
  • Interior
  • Rear
  • Floor
  • Roof

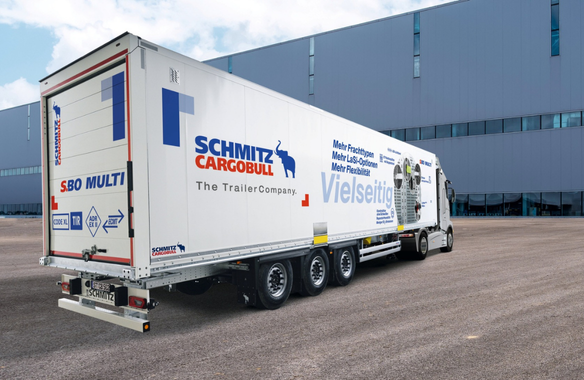

Side wall

Robust side wall for maximum stability

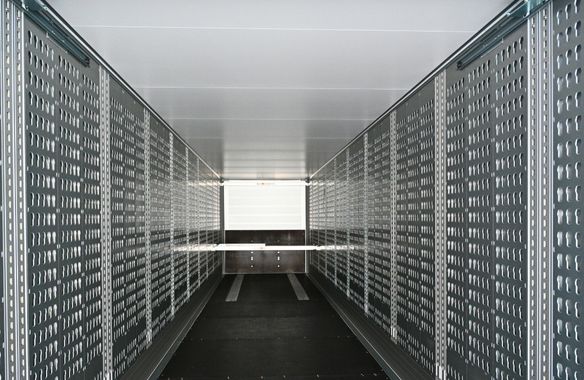

The double-shell steel construction ensures maximum strength and durability. Two different types of integrated columns reinforce the structure: one supports the double-deck rails, the other allows the installation of galvanised keyhole plates for flexible load securing.
Lær mer
Interior

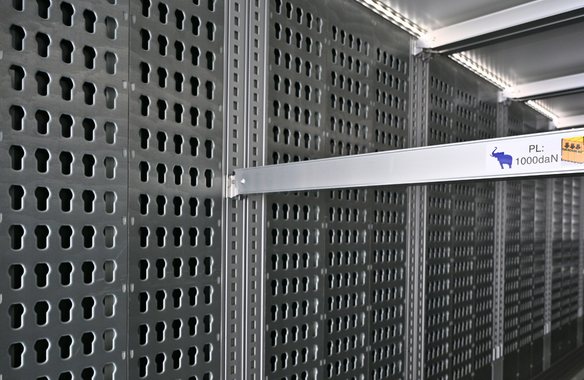

Double-decker system

The double-decker system provides for flexible and greater utilisation of the semi-trailer. The system provides for gap-free loading using two infinitely height-adjustable and split levels. Ideal for non-stackable freight.
Lær mer

Robust and corrosion-resistant keyhole plates

The galvanised keyhole plates offer maximum corrosion resistance and reduce rust and the need to replace components. The reinforced curvature provides additional stability when using securing elements such as rods and straps – even under high loads.
Lær mer
Rear

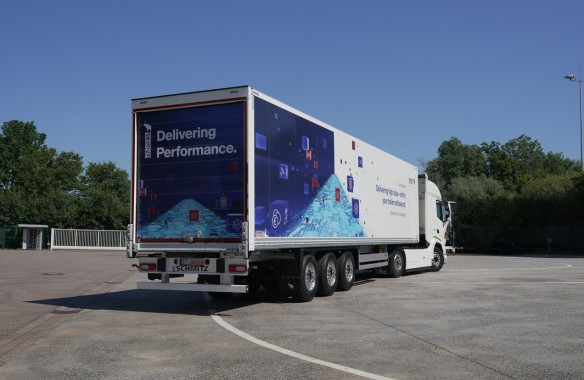

Schmitz Cargobull roller shutter

The roller shutter means that no more time is lost, as the vehicle can be opened after driving up to the ramp. The lightest roller shutter on the market with XL certification according to EN 12642 (payload 27 tonnes).
Lær mer

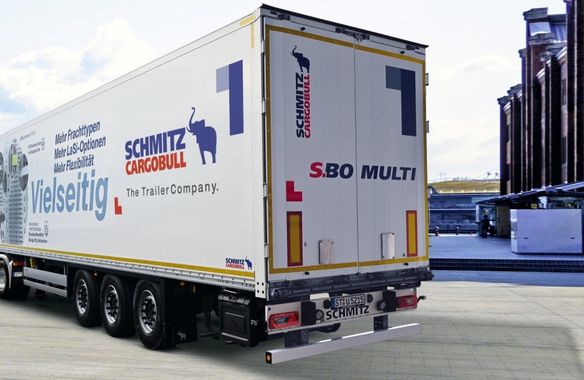

Rear doors

The aluminium rear doors are corrosion-resistant, durable and lightweight.
Lær mer

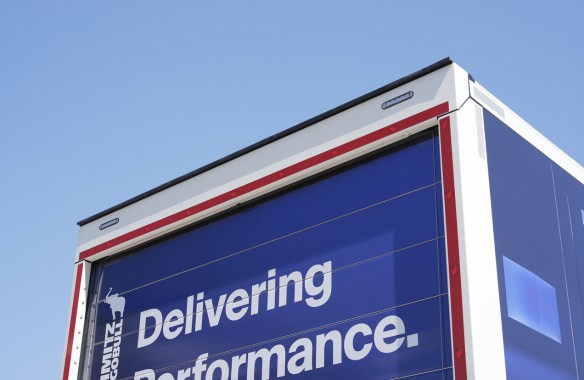

Upper marker lights

Safety light as a combination light in conjunction with marker, rear, brake and indicator lights.
Lær mer
Lær mer

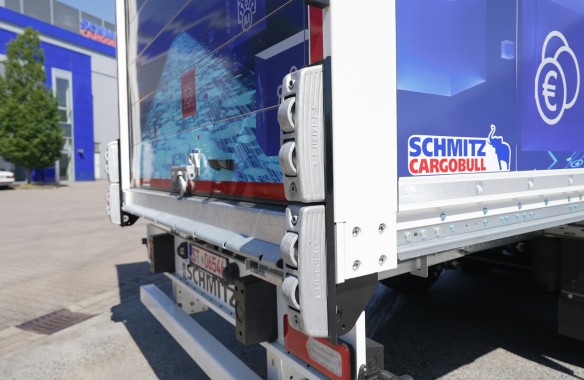

Heavy-duty rear package

The heavy-duty rear package consists of two double duo-rollers and a delta steel ram. This provides more protection for the trailer during loading and unloading.
Lær mer

Tail lift

Thanks to its tail lift, loading and unloading is easy even without a ramp. The tail lift enables the trailer to be directly loaded and unloaded.
Lær mer
Floor
Bodenblech am Heck

Base plates at the rear portal

When a trailer is frequently loaded by forklift, the rearmost base plate is often exposed to increased wear and tear. To protect it, an additional base plate is fitted at the rear portal, extending the service life of the trailer.
Lær mer

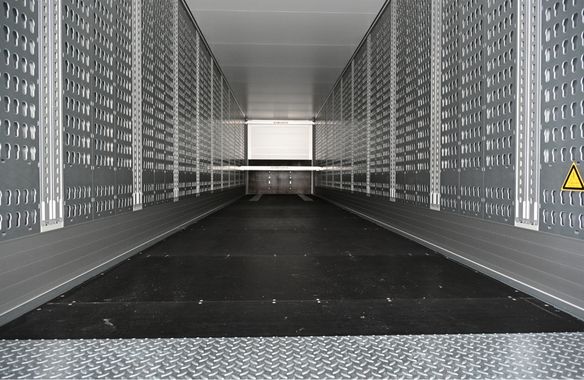

Wooden floor

Durable and robust screen-printed floors for various forklift axle loads. Sealed floor panels prevent moisture from reaching the cargo from below.
Lær mer
Roof

FERROPLAST® roof

The standard FERROPLAST®-insulated roof comes in various versions, ensuring excellent fuel efficiency and outstanding insulation.
Lær mer

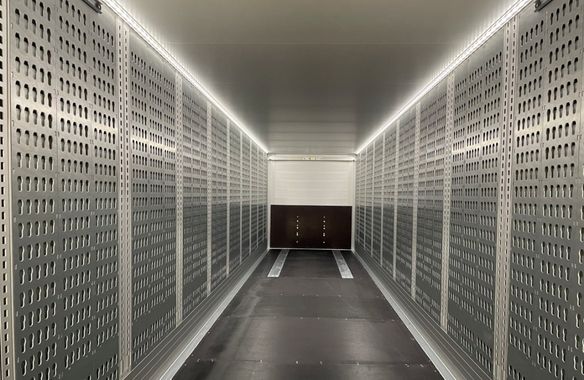

Improved interior lighting for more safety at work

With the new LED light strips is now even better illuminated and ensures more safety when loading and unloading at any time of day.
Lær mer

Assist systems

  • Tyre pressure systems
  • Brake pad wear indicator
  • Flashing side marking lights
  • Electronic ramp approach aid
Tyre pressure systems
The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring by TrailerConnect® immediately possible – if sensors are mounted on the tyre. The system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.
Lær mer
Control and timely information on tyre pressure with the tyre pressure system

Etterfyllingssystem

Dekktrykkpåfyllingssystemet styrer dekktrykket og fyller autonomt om nødvendig. For mindre dekkslitasje og bedre kjøreoppførsel uten å måtte fylle deg selv igjen.
Lær mer

Brake pad wear indicator

Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.
Lær mer
Flashing side marking lights
Lær mer
Electronic ramp approach aid
Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.
Lær mer

Load securing

  • Load securing options
Load securing options

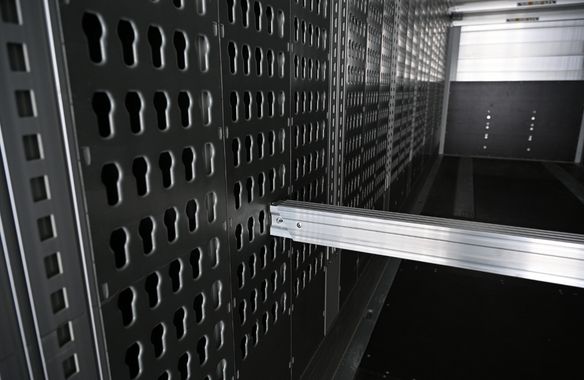

Load securing beam

Non-palletised freight can be secured using flush-mounted load securing rails. Load securing beams can be hooked in anywhere, leaving the interior space free to use.
Lær mer

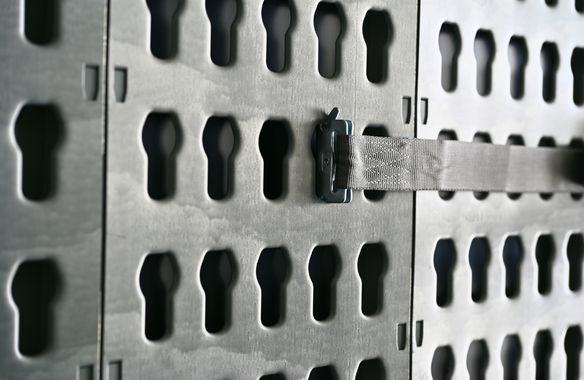

Tension strap for keyhole plates

For maximum flexibility in load securing, secure the lashing at any position along the keyhole plates.
Lær mer

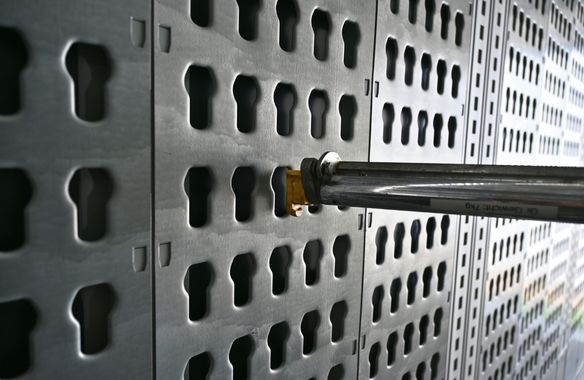

Clothes rails

Ideal for transporting hanging garments. Simply hook it in at one of the flexible points for a secure hold.
Lær mer

Tension strap for double-deck rails

Perfect for securing loads on the second level. Quick to attach, reliably fixed.
Lær mer

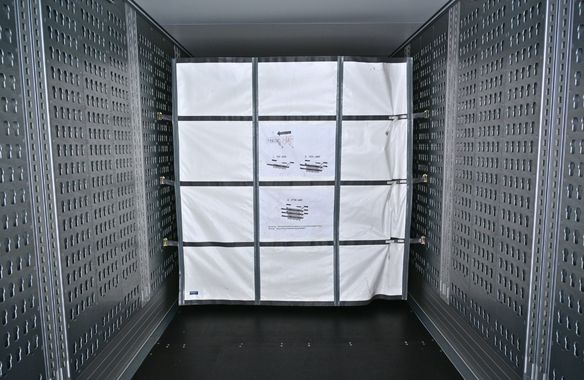

Safety curtain

The safety curtain is used to ensure the safety of the cargo. In addition, the curtain can be secured to the side wall in the load securing rails with the straps provided when the curtain is not needed.
Lær mer

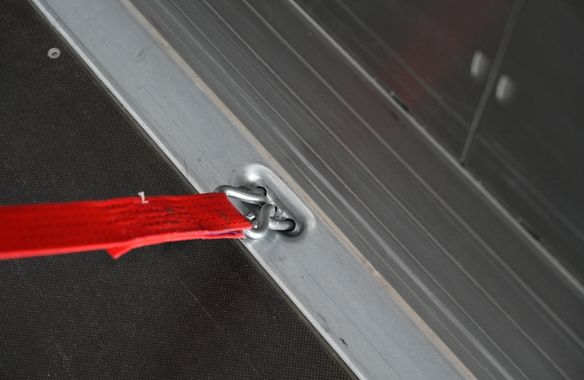

Lashing eyes

The lashing eyes, with a pulling force of up to 2 tonnes, provide flexible load securing points. Fits all common hooks for fast load securing.
Lær mer

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

  • DIN EN 1264 Code XL

    Sertifisert strukturell styrke som standard. Med sertifisering i henhold til DIN EN 12642 Code XL oppfyller karosseriene fra Schmitz Cargobull kravene til forsterkede karosserier for sikring av last.
    Les mer
  • Les mer

Technical data

  • Internal body length13.62mkg
  • Intenal body width2,480mmmm
  • Internal body height2,700mm and 2,900mm
  • Pallet spacesUp to 67 Euro pallets
