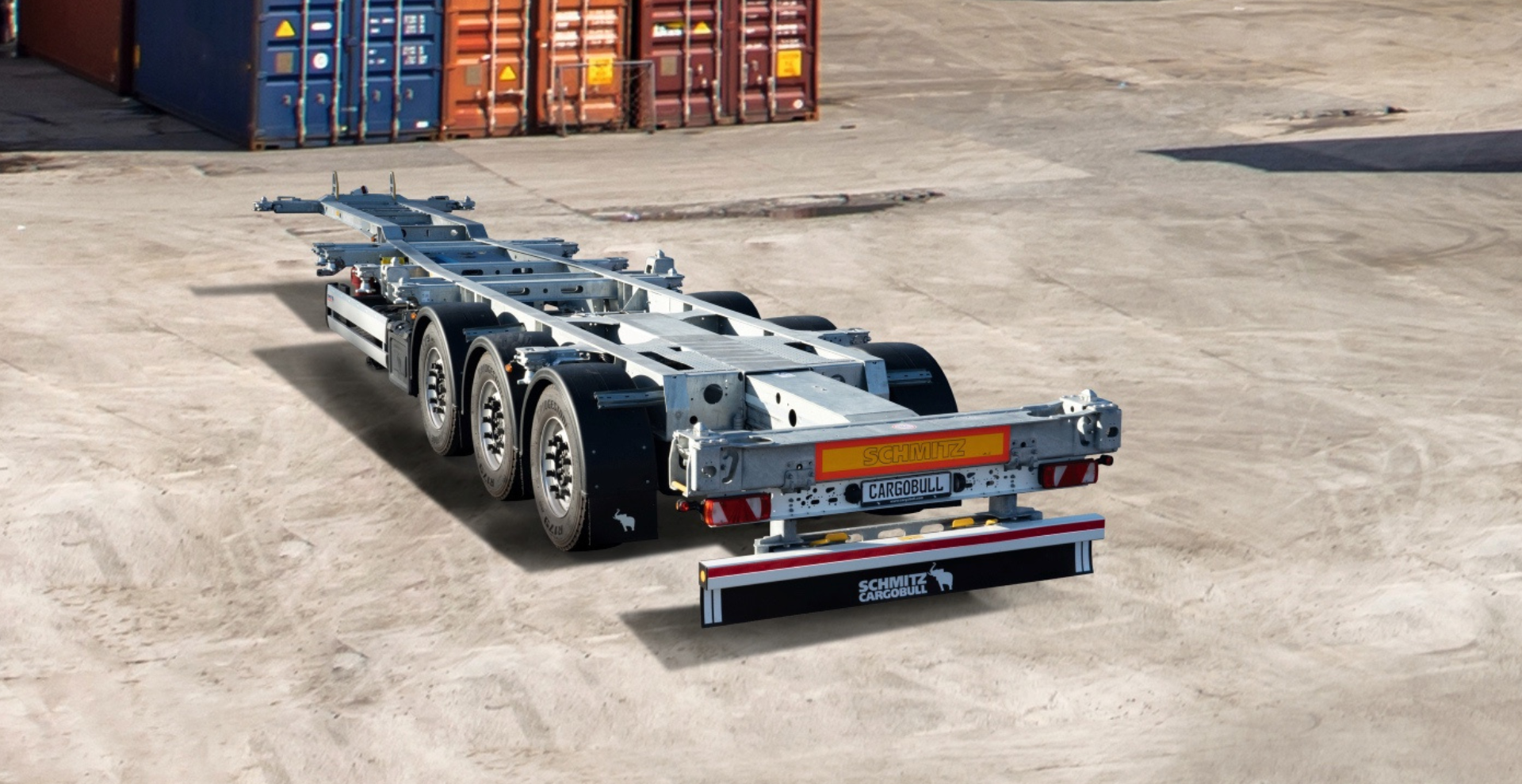

S.CF ALLROUND 20-45

Podvozje kontejnerskega polpriklopnika S.CF ALLROUND 20-45 skrbi za fleksibilnost, varnost in gospodarnost. Kontejnerji dolžine 20‘ do 45‘ EU Container z dolgim predorom in poševnimi vogali se varujejo z različnimi sistemi varoval. Pri S.CF ALLROUND 20-45 je izvlečna naletna zaščita serijsko vgrajena.

The S.CF Allround 20-45 semi-trailer container chassis delivers flexibility.

Vaše prednosti

For a wide range of transport tasks
With mountings for 20' to 45' containers with or without tunnel
Preerite več
Prilagodljivo: Pripravljeno za kontejnerje od 20' do 45' z/brez vrat na obeh koncih
Preerite več
Well thought-out
130 mm frame neck height for a maximum 4,000 mm overall height
Preerite več
Dodatna oprema: Zapirala za kontejnerje 40' in 45' brez vrat na obeh koncih
Preerite več
Premišljeno: 130 mm višine vratu okvira za največjo skupno višino 4.000 mm
Preerite več
Praktično: pnevmatski podaljšek zadaj, mehanski podaljšek spredaj
Preerite več
Primerno za morje: 2 para privezov za trajekte
Preerite več
Weight-optimised
The kerb weight has been reduced by up to 130 kg, increasing the payload and supporting efficient, cost-effective transport operations.
Preerite več

Značilnosti opreme

Podvozje
Vozni mehanizem
Zaklepanja
Others

Chassis

Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

Splošno

Kontejnerska šasija Schmitz Cargobull je izdelana iz jeklenih profilov visoke trdnosti in sistemsko zaščitena pred korozijo.

The Schmitz Cargobull spring-mounted, roller-borne front extension.

Izvlek spredaj

Izvlek spredaj, uležajen vzmeteno na kolescih, za kontejnerje dolžine 45’, je mogoče upravljati enostavno varno in hitro.

The rear extension can be pneumatically extended to the required container position.

Izvlek zadaj

Izvlek zadaj je mogoče izvleči na želeni položaj kontejnerja s pomočjo pnevmatike.

S.CF container support

Nastavki za kontejnerje

Dodatna oprema: Trije pari zložljivih nastavkov za kontejnerje za 40'/45' brez predora.

S.CF container guide

Uvajalniki kontejnerjev

S kavlji zavarovani uvajalniki kontejnerjev poenostavijo postavljanje predornih kontejnerjev.

All the required equipment is stored in the tool box.

Zaboj z orodjem

Vse potrebne naprave in orodja so varno in čisto spravljeni v stabilnem zaboju za orodje.

The semi-trailer container chassis can be equipped with ferry lashings for ferry transport.

Ferry Lashings

Za uporabo pri transportu s trajekti je mogoče podvozje kontejnerskega polpriklopnika opremiti s Ferry Lashings.

Running gear

Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

Podvozje ROTOS

Odlične vozne lastnosti zaradi serijskega zračnega vzmetenja MRH (Multi-Ride-Height). Optimalno med seboj usklajene komponente zagotavljajo zanesljivo zaviranje pri trajnem delovanju.

The lift axle extends the wheelbase, increasing the pressure on the drive axle.

Samodejni dvig osi

Izbirna dvižna os kot pripomoček za speljevanje poveča razdaljo do osi kolesa in s tem pritisno silo na pogonsko os.

Zaklepanja

Your semi-trailer container chassis fits to the container in a matter of moments.

STEP LOCK

Zaklepi STEP LOCK na zadnjem izvleku prilagodijo kontejnersko šasijo z dvema ročajem na kontejnerju z ali brez predora. Možna je enostavna menjava višine zaklepanja.

Fold up, let the safety hooks engage and mount the container.

KLAPP LOCK

Pri natovarjanju dveh kontejnerjev dolžine 20' je zadnje zaklepanje sprednjega kontejnerja izvedeno z dvema zaklepoma KLAPP LOCK: Preklopite navzgor, zataknite varovalni kavelj in že lahko spustite kontejner na tovorno površino.

The Schmitz Cargobull spring-mounted, roller-borne front extension.

MULTI LOCK

Zaklepanje MULTI LOCK na mehanskem sprednjem izvleku za pritrditev kontejnerjev 45‘-EG omogoča popolno variabilnost.

Others

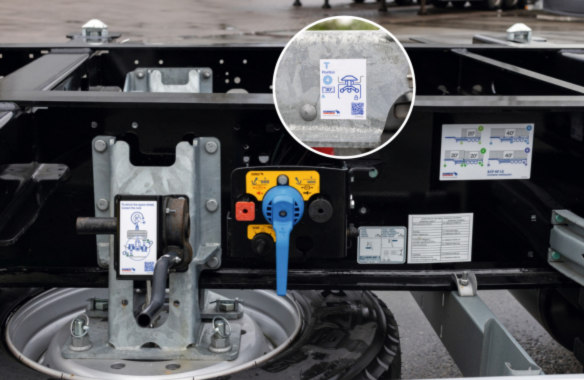

New operating concept

New operating concept with loading plan and clear function and warning notices on locks and extensions.

Brand generator set ex works for supplying power to refrigerated containers

Reliably maintaining the cold chain with containers

Reefer containers (20'/40'/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transportation. Schmitz Cargobull offers a complete ex-works solution for the S.CF ALLROUND 20-45 container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.

Brand generator set ex works for supplying power to refrigerated containers

Reliably maintaining the cold chain with containers

Reefer containers (20'/40'/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transportation. Schmitz Cargobull offers a complete ex-works solution for the S.CF ALLROUND 20-45 container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.

Brief Information: Transport solution for refrigerated containers
Download

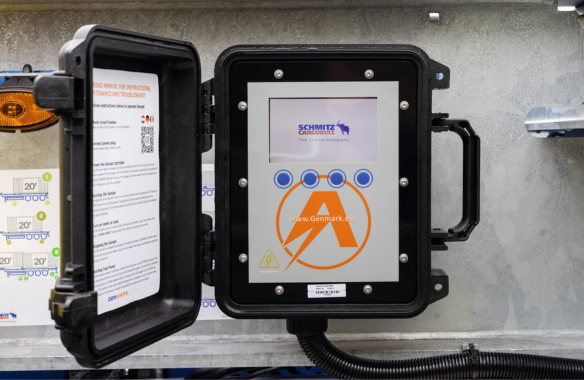

Control panel

The control panel with TFT monitor shows the operating status, consumption, total running time and the next maintenance date, among other things.

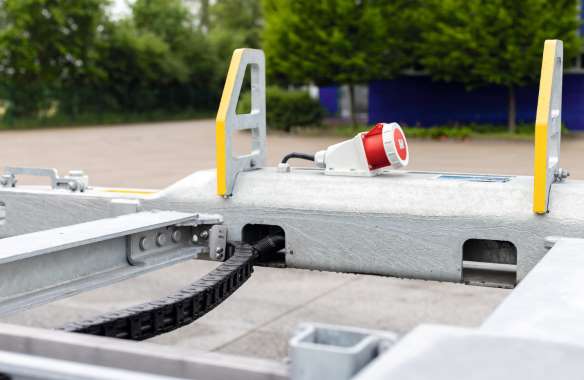

CEE socket

Easy handling: power supply to the refrigerated containers via the CEE socket on the front bar.

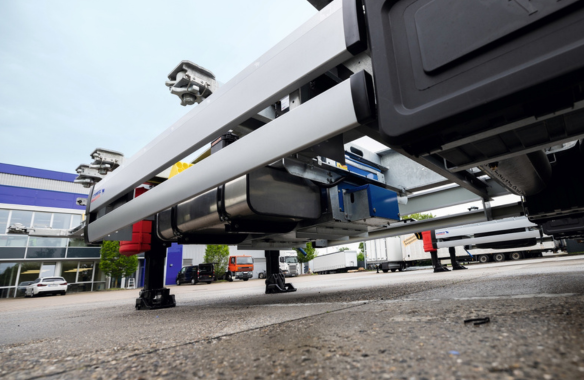

Diesel tank

130 litre diesel tank for continuous operation of refrigerated containers for several days.

Your advantages

One-stop shopping: complete solution ex works without additional effort by retrofitting at the service partner
Customised and reliable thanks to individual adaptation to the S.CF ALLROUND 20-45 container chassis
High ground clearance of approx. 310 mm
Self-sufficient power supply for up to 60 hours from remote units
Branded product with large service network
Immediately available from stock
