S.CF ALLROUND 20-45

S.CF ALLROUND 20-45

Le châssis porte-conteneurs S.CF ALLROUND 20-45 assure de la flexibilité, de la sécurité et de la rentabilité. Les conteneurs de 20‘ à 45‘ avec tunnel long et coins biseautés sont bloqués par différents systèmes de verrouillage. La barre anti-encastrement télescopique est de série sur le S.CF ALLROUND 20-45.
The S.CF Allround 20-45 semi-trailer container chassis delivers flexibility.

Your benefits

  • For a wide range of transport tasks
    With mountings for 20' to 45' containers with or without tunnel
    Continuer à lire
  • For a wide range of transport tasks

    Flexible loading of 2 x 20’, 20’ centre-aligned, 30’ rear-flush, as well as 40’ and 45’ tunnel containers.

    Continuer à lire
  • Well thought-out

    130 mm frame neck height for a maximum 4,000 mm overall height

    Continuer à lire
  • Optimised locking systems

    MULTI LOCK and KLAPP LOCK ensure secure container locking for a wide range of applications.

    Continuer à lire
  • Greater flexibility
    Fold-down container supports enable the transport of containers without tunnel extensions.
    Continuer à lire
  • TrailerConnect® included

    The tyre pressure monitoring system provides important vehicle data in real time, reduces tyre wear and supports cost-effective operation.

    Continuer à lire
  • For greater versatility

    Accommodates 40’ and 45’ containers without tunnel extensions thanks to the height-adjustable STEP LOCK®.

    Continuer à lire
  • Weight-optimised

    The kerb weight has been reduced by up to 130 kg, increasing the payload and supporting efficient, cost-effective transport operations.

    Continuer à lire

Equipment features

  • Châssis
  • Train roulant
  • Verrouillages
  • Others
Chassis
Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

General

Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.
En savoir plus
The Schmitz Cargobull spring-mounted, roller-borne front extension.

Front extension

Front beam can be overloaded at the front for transporting 45' containers.
En savoir plus
The rear extension can be pneumatically extended to the required container position.

Rear extension

The rear extension can be pneumatically extended to the required container position.
En savoir plus
S.CF container support

Container supports

Optional: three pairs of folding container supports for 40'/45' containers without tunnel.
En savoir plus
S.CF container guide

Container guides

Easily replaceable container guides for tunnel containers on the front beam.
En savoir plus

Toolbox

All the required tools and equipment are safely and tidily stored in the optional, sturdy toolbox.
En savoir plus
The semi-trailer container chassis can be equipped with ferry lashings for ferry transport.

Ferry lashings

For use in ferry traffic, the semi-trailer chassis  can be equipped with ferry lashings.
En savoir plus


The new in-house developed underride guard for better handling

Mechanical front extension for 45‘ containers is spring-mounted on rollers and is easy and safe to handle.
Body
Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

ROTOS? running gear

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. Ideally matched components ensure reliable brake performance even in continuous operation.
En savoir plus

Automatic axle lift

The optional lift axle as a starting aid extends the  wheelbase and thus increases the pressure on  the drive axle. Unloaded in the lifted position, tire  wear is reduced.
En savoir plus
Locking mechanisms

STEP LOCKs

The STEP LOCKs on the rear extension let you adjust your container chassis to containers with or without a tunnel in a matter of moments. The locking height can be changed with ease.
En savoir plus
Fold up, let the safety hooks engage and mount the container.

KLAPP LOCKs

Two KLAPP LOCKs are used to lock the rear end of the front container when transporting 2 x 20' containers: fold up, let the safety hooks engage and mount the container.
En savoir plus

MULTI LOCKs

The MULTI LOCK locking mechanism on the mechanical front extension to accommodate 45' Euro containers for total versatility.
En savoir plus
Others

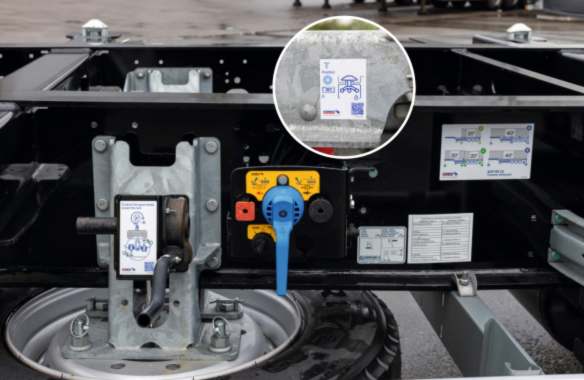

New operating concept

New operating concept with loading plan and clear function and warning notices on locks and extensions.
En savoir plus

Simple explanations via QR code

QR codes with operating videos support handling. Positioned clearly visible and easily accessible. Scan the QR code and get quick help for various handling situations.

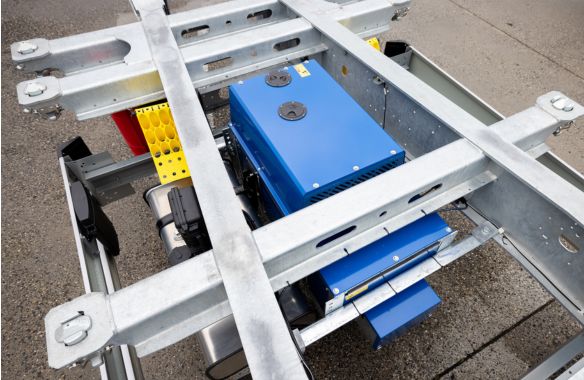

Brand generator set ex works for supplying power to refrigerated containers

Reliably maintaining the cold chain with containers

Reefer containers (20'/40'/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transportation. Schmitz Cargobull offers a complete ex-works solution for the S.CF ALLROUND 20-45 container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.
En savoir plus

Brand generator set ex works for supplying power to refrigerated containers

Reliably maintaining the cold chain with containers

Reefer containers (20'/40'/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transportation. Schmitz Cargobull offers a complete ex-works solution for the S.CF ALLROUND 20-45 container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.
En savoir plus
  • Brief Information: Transport solution for refrigerated containers
    Download

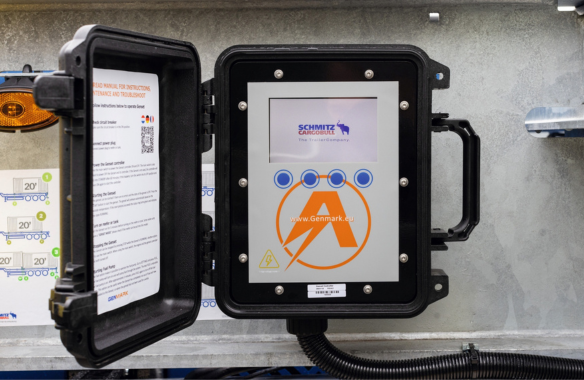

Control panel

The control panel with TFT monitor shows the operating status, consumption, total running time and the next maintenance date, among other things.
En savoir plus

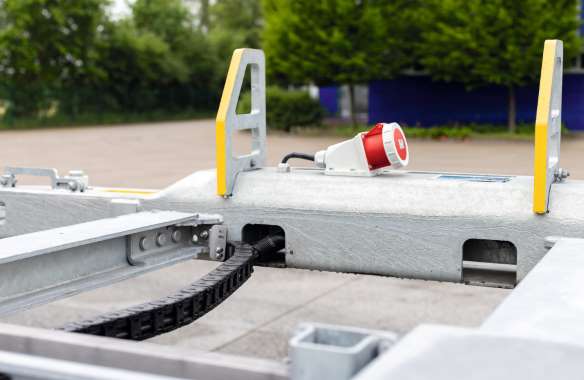

CEE socket

Easy handling: power supply to the refrigerated containers via the CEE socket on the front bar.
En savoir plus

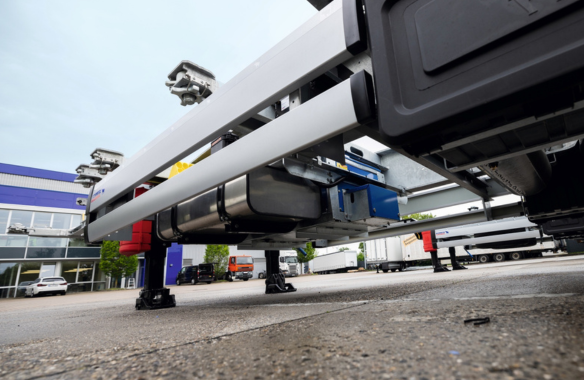

Diesel tank

130 litre diesel tank for continuous operation of refrigerated containers for several days.
En savoir plus

Your advantages

  • One-stop shopping: complete solution ex works without additional effort by retrofitting at the service partner
  • Customised and reliable thanks to individual adaptation to the S.CF ALLROUND 20-45 container chassis
  • High ground clearance of approx. 310 mm
  • Self-sufficient power supply for up to 60 hours from remote units
  • Branded product with large service network
  • Immediately available from stock
