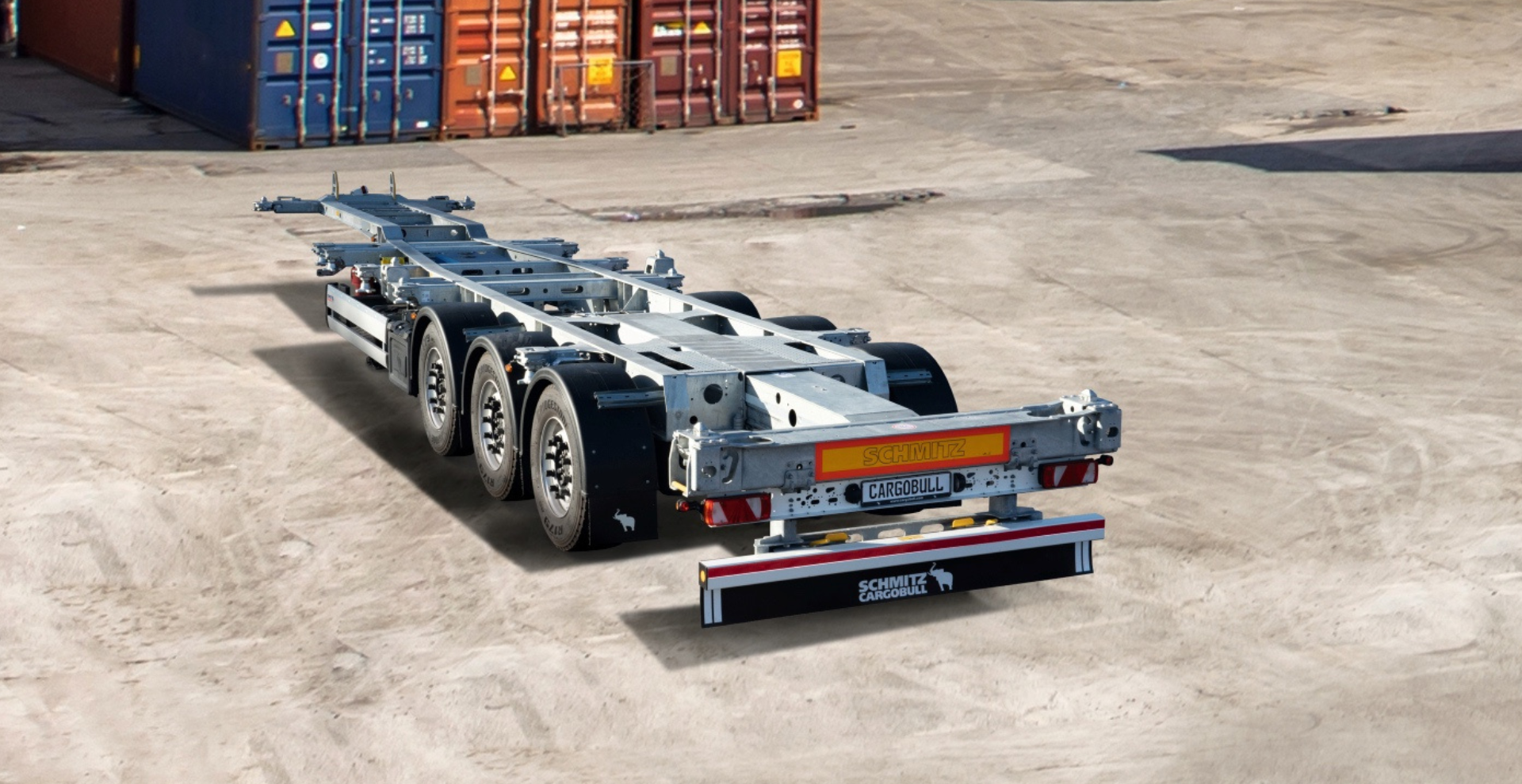

S.CF 45' EURO

The S.CF 45' EURO semi-trailer container chassis delivers flexibility, safety and efficiency. Containers from 20' to 45' Euro containers with long tunnels and angular corners are secured in place with a series of locking systems. Extendible underride guards are supplied as standard with the S.CF EURO.

The S.CF EURO 45 semi-trailer container chassis delivers flexibility.

Your benefits

Flexible: with mountings for 20' to 45' containers with or without tunnel
Read more
Optional: Locking systems for 40' and 45' containers without tunnel
Read more
Well thought-out: 130 mm frame neck height for a maximum 4,000 mm overall height
Read more
Practical: pneumatic rear extension, mechanical front extension
Read more
Seaworthy: 2 pairs of ferry lashings
Read more

Schmitz Cargobull lock, running gear and chassis.

Equipment features

Chassis
Running gear
Locking mechanisms

Chassis

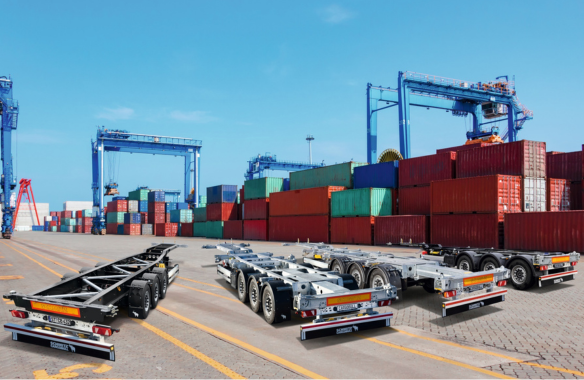

Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

General

Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

The Schmitz Cargobull spring-mounted, roller-borne front extension.

Front extension

The spring-mounted, roller-borne front extension for 45' containers can be simply and easily operated to save time.

The rear extension can be pneumatically extended to the required container position.

Rear extension

The rear extension can be pneumatically extended to the required container position.

S.CF container support

Container supports

Optional: three pairs of folding container supports for 40'/45' containers without tunnel.

S.CF container guide

Container guides

Hook-secured container guides simplify the positioning of tunnel containers.

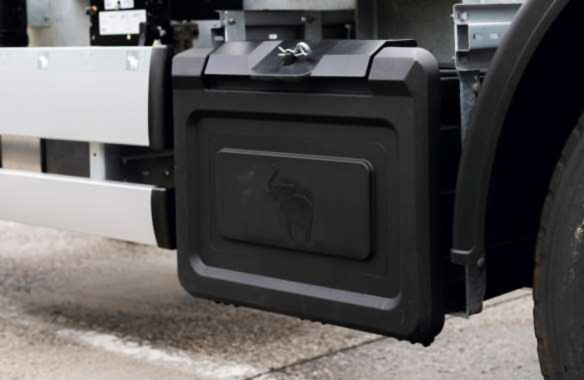

All the required equipment is stored in the tool box.

Toolbox

All the required tools and equipment are safely and tidily stored in the optional, sturdy toolbox.

The semi-trailer container chassis can be equipped with ferry lashings for ferry transport.

Ferry lashings

The semi-trailer container chassis can be equipped with ferry lashings.

Running gear

Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

ROTOS? running gear

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. Ideally matched components ensure reliable brake performance even in continuous operation.

The lift axle extends the wheelbase, increasing the pressure on the drive axle.

Automatic axle lift

The optional lift axle as a starting aid extends the wheelbase, increasing the pressure on the drive axle.

Locking mechanisms

Faster container swaps through efficient locking mechanisms.

General

Faster container swaps through efficient locking mechanisms. Greater convenience with the best material quality, simple handling, minimised risk of errors and two patented locking systems.

Your semi-trailer container chassis fits to the container in a matter of moments.

STEP LOCKs

The STEP LOCKs on the rear extension let you adjust your container chassis to containers with or without a tunnel in a matter of moments. The locking height can be changed with ease.

Fold up, let the safety hooks engage and mount the container.

KLAPP LOCKs

Two KLAPP LOCKs are used to lock the rear end of the front container when transporting 2 x 20' containers: fold up, let the safety hooks engage and mount the container.

The Schmitz Cargobull spring-mounted, roller-borne front extension.

MULTI LOCKs

The MULTI LOCK locking mechanism on the mechanical front extension to accommodate 45' Euro containers for total versatility.
