Central axle curtainsiders

Central axle curtainsiders

Z.CS central axle curtainsider trailers are an excellent addition to the M.CS curtainsider truck or S.CS curtainsider semi-trailer.
MCS with POWER CURTAIN

Your benefits

  • POWER CURTAIN - ease of handling and greater safety when loading and unloading without the need for support laths.
    Read more
  • Height-adjustable lifting roof for simple loading and unloading with flexible internal heights.
    Read more
  • Available as the M.CS/Z.CS high-volume truck body and trailer combination when combined with the Z.CS central axle curtainsider trailer.
    Read more
  • Excellent structural rigidity of the body, DIN EN 12642 Code XL-certified, optionally certified to the DL Directive 9.5 and VDI Directive for beverage transport and with tyre certificate.

    Read more
M.CS Z.CS truck body and trailer combination

Overview

Chassis & running gear

  • Chassis
Chassis

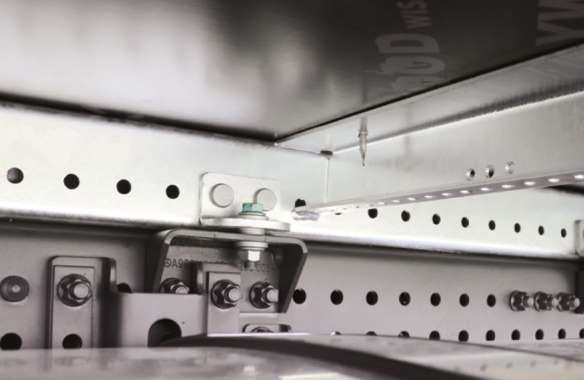

M.CS curtainsider truck body subframe

Chassis

Optimum corrosion protection with hot galvanised underbody and fittings for greater durability and value retention.
Find out more

Body

  • Page
  • Equipment for through-loading trailers
  • Rear
  • Roof
  • Height adjustment
Page

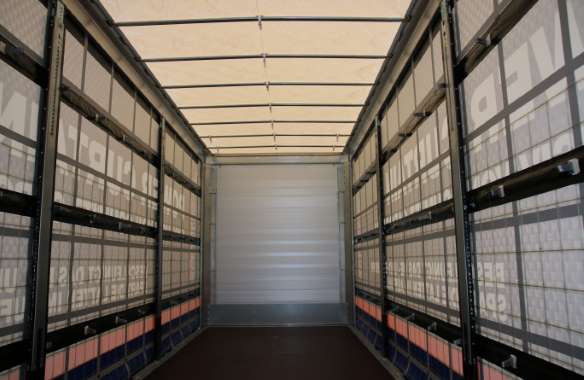

M.CS POWER CURTAIN body

POWER CURTAIN

Fast and safe loading and unloading with the lath-free body. Loops recessed in the curtain enable flexible rear load securing with full certification.

Find out more
The standard tarpaulin used on the curtainsider is extremely smooth-running and so can be opened and closed quickly and easily using only one hand.

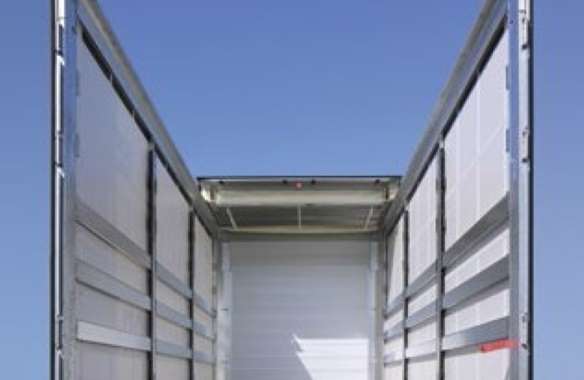

Standard body

The standard curtain used on the curtainsider is extremely smooth-running and so can be opened and closed quickly and easily using only one hand.
Find out more
Equipment for through-loading trailers

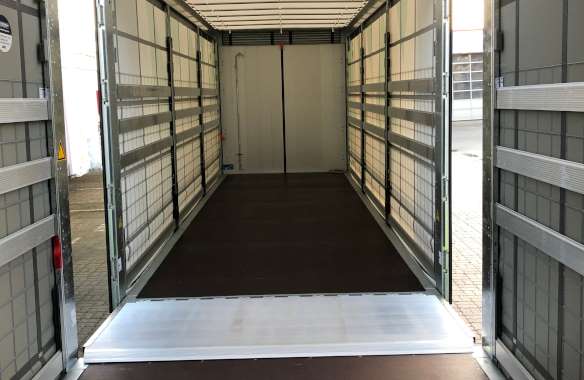

Equipment for the M.CS_Z.CS through-loading truck

Through-loading trailer equipment

Short loading times with through-loading trucks that can be loaded by forklift M.CS/Z.CS or M.KO/Z.KO. Up to 38 Euro pallets can be loaded and unloaded without the trailers needing to be uncoupled.
Find out more
Rear

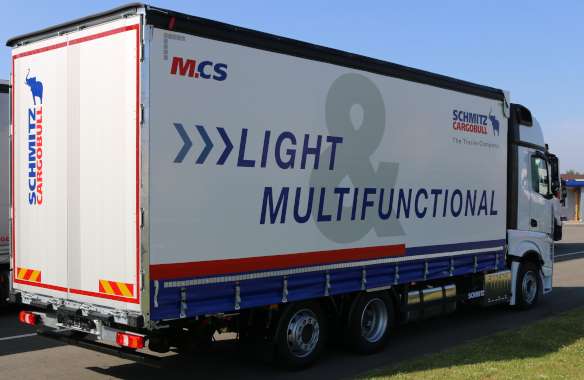

Einfacher Zugang zur Ware mit der Doppelflügeltür

Double wing door

The anodised aluminium profile rear wall doors are lightweight, durable and corrosion-resistant.
The doors' profile construction means that they can be simply repaired in the event of damage.

Find out more
The rubber bumpers protect the semi-trailer body when approaching the ramp

Standard rubber bumper

Various high-quality rubber bumper designs protect the rear when the semi-trailer is reversing up to a ramp.
Find out more
The rubber bumpers prevent damage to the rear portal of the curtainsider semi-trailer

Roller corner bumper

Roller corner bumpers compensate for vertical motion during loading and unloading on the ramp. The rubber bumpers prevent damage to the rear portal, protecting the semi-trailer.
Find out more
Roof

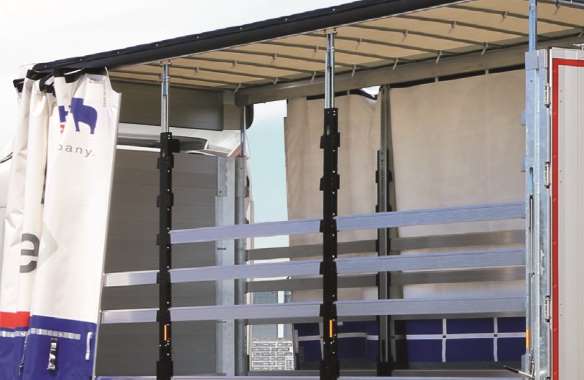

M.CS lifting roof for ease of loading and unloading

Lifting roof

The roof can be raised to increase the side through-loading height. This provides for convenient loading and unloading, preventing damage to the load and roof.

Find out more
Excellent body strength with the Schmitz Cargobull Safety Roof

Safety Roof

The standard Safety Roof also contributes to the strength of the trailer body. The Safety Roof can be slid forward or backwards and stopped in an open position for loading and unloading by crane.
Find out more

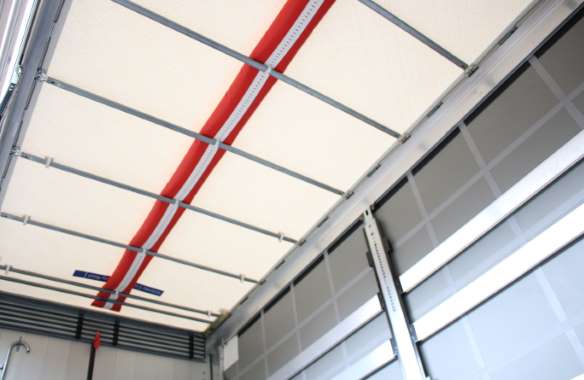

Transport safely with the Roof Safety Airbag

Roof Safety Airbag

The Roof Safety Airbag (RSAB) improves safety in traffic. When inflated, the RSAB creates a bulge in the roof, causing water to run off and preventing ice formation in winter.
Find out more
Height adjustment

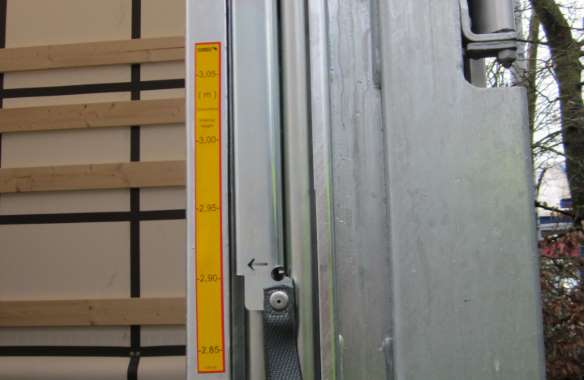

Adjustment of the body to the load volume with the VARIOS body

VARIOS

Use the height-adjustable TÜV Centre-certified body flexibly with different coupling heights. If required, the load volume grows with your requirements, while always remaining below the permitted overall height
Find out more

Load securing

  • Restraint
  • Lashing points and aids
Restraint

Flexible load securing system

The flexible load securing system stands out on account of its high test forces. Its ease of handling is impressive and it can be flexibly positioned within the trailer.
Recessed load securing loops in the POWER CURTAIN

Load securing loops

The curtain loops integrated in the POWER CURTAIN curtain provide flexible load securing options with excellent blocking forces, while being easy to use.
Find out more
Lashing points and aids

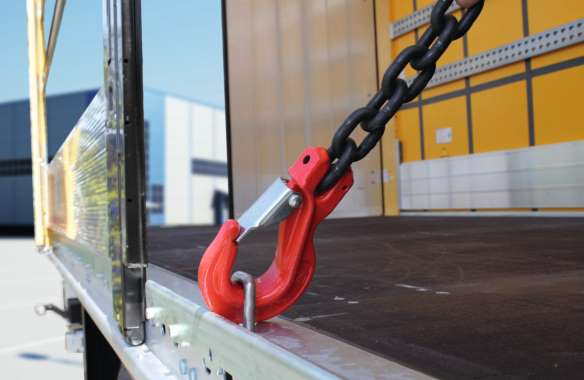

Lashing eyes with a pulling force of up to 5 tonnes

Lashing eyes

Lashing eyes for up to 2 tonnes provide flexible load securing points, and the load can be quickly secured due to the efficient combination of load securing equipment.
Find out more

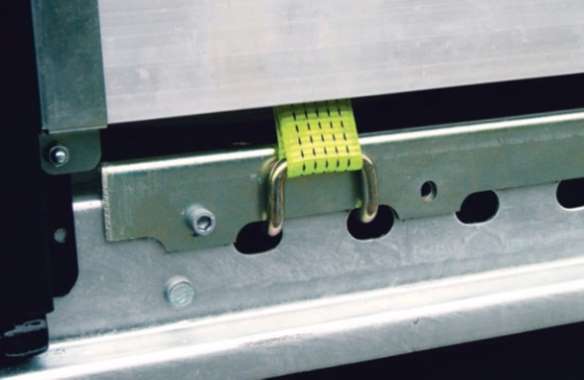

M.CS Z.CS lashing holes

Full-length lashing holes

These standard continuous lashing holes in the outer frame mean that your load can be very quickly, efficiently and flexibly secured. The lashing holes fit all popular hooks.
Find out more

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

  • DIN EN 12642 Code XL

    Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
    Read more

  • Daimler Directive 9.5

    Daimler AG has its own separate directive for binding load securing methods for the correct and proper transport of goods to and from its factories. The Daimler Directive 9.5 is increasingly used for all transportation work in the automotive sector.
    Read more

  • Beverages

    Trailer bodies that confirm to DIN EN 12642 Code XL with the addition "suitable for beverage transport" meet the special requirements governing well pallets and drums. Suitable for one- or two-layer beverage transport.
    Read more

  • Tyres

    Loose tyres that need to be transported interlocked with each other settle when they are transported and press heavily against the side walls. Body stability is ensured with additional fittings in accordance with DIN EN 12642 Code XL.
    Read more
