Central axle tipper trailers Z.KI

Central axle tipper trailers Z.KI

Back again: redesigned, lighter and easier to handle with pallet-width body and folding side walls as standard.
  • TypeCentral axle tipping trailer designed as three-way tipper
  • StructureThree-way tipper bridge made of steel
  • Volume10m³
  • Type length4.900 mm
  • Dropside height900mm
  • ChassisSteel
  • UseBulk goods, general cargo, palletized freights, technical equipment, machines
Hero

Your benefits

  • Very good maneuverability in confined spaces due to central axis
    Read more
  • Efficient with approx. 10 m³ loading volume
    Read more
  • Maintenance and repair-friendly design with a weight advantage of up to 60- kg compared to its predecessor.
    Read more
  • Pallet-wide version as standard for special flexibility in everyday transport. Convenient loading thanks to a clear loading width of 2,420 mm.
    Read more
  • Robust and stable: wear-resistant drop sides and trough floor made of fine-grained steel (HB 450)
    Read more
  • Lower fuel consumption and rolling resistance due to lift axle
    Read more
  • Designed for easy maintenance and repair, with a weight advantage of up to 60 kg to the previous model
    Read more
  • Safe transport and easy load securing through additionally available lashing eyes (according to DIN EN 12640) in the hollow bottom
    Read more
ZKI

Chassis & running gear

  • Chassis
  • Attachment Parts
  • Lightning

Chassis

Long value retention, low maintenance and high value stability thanks to galvanised chassis with high corrosion protection.

Folding underride guard

When folded up, the folding underride guard provides better ground clearance for unloading into the road paver.

Attachment parts

Mounting parts complete the comfortable use of the vehicle and make everyday transport easier. Just a few of the many extension possibilities.

Lighting

Best possible traffic and work safety with the flashing side marker light and multi-chamber light with protective cover.

Body

  • Body
  • Rear

Steel body

The pallet-wide hollow body with steel side walls and a height of 900 mm offers a capacity of 10 m³.

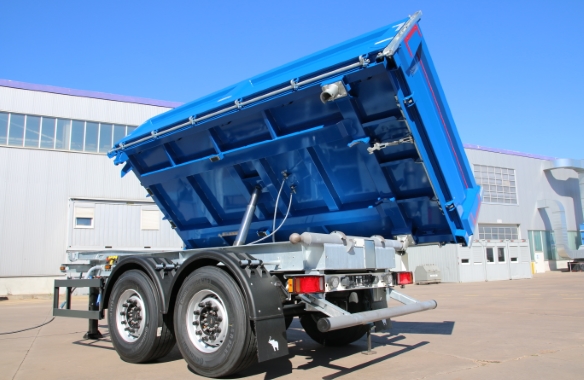

Hydraulics

The steel dumping body can be hydraulically tilted to three sides.


Tailboard

Flexible loading and unloading with the durable pendulum and foldable side walls. The side walls can optionally be equipped with a lifting spring mechanism for easy folding up and down for loading and unloading from the side.


Rear wall door

Large opening cross-section due to raised self-aligning bearing on the rear door.

Load securing

  • Lashing points and aids

Lashing eyes

Safe transport of general cargo and small construction machinery: The optional lashing eyes in the floor of the trough enable simple and flexible load securing thanks to additional lashing points.
