M.KI with thermal insulation

M.KI with thermal insulation

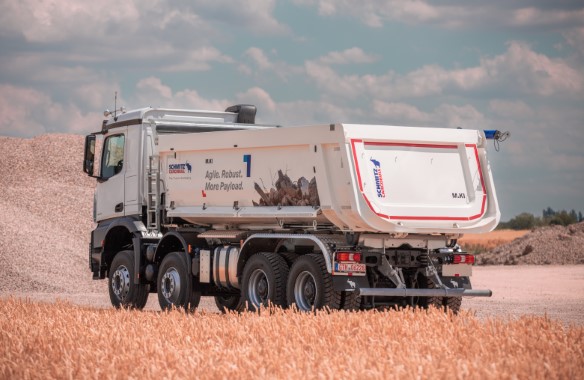

M.KI truck tipper bodies have a rounded steel body and full thermal insulation in compliance with DIN 70001, enabling the transportation of smaller quantities of asphalt for road construction.
  • TypeRigid truck with rear tipping body
  • BodyRounded steel body with full insulation
  • Volume18m³
  • Type length5,5
  • Body depth1.460mm
  • ChassisSteel
  • UseMix (asphalt)

Your benefits

  • Universal use, also next to the asphalt transport business

    Read more

  • Low maintenance requirements

    Read more

  • High payload by light thermal insulation

    Read more

  • Segmented structure with very good insulation performance

    Read more

  • Side opening for four-point temperature measurement from the ground as standard

    Read more

  • Optional mounting for electronic measurement technology

    Read more

  • Low centre of gravity and high tipping stability thanks to wide body floor

    Read more

Chassis & running gear

  • Chassis
  • Attachment parts
Chassis

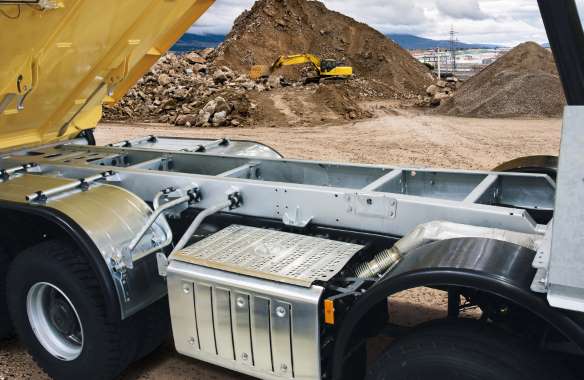

The galvanised and extremely torsion-resistant subframe enables it to be fitted to all popular manufacturers' trucks

Steel subframes and chassis

Tipper bodies can be perfectly matched with the selected rigid truck chassis. Their galvanised and extremely torsionally rigid subframes enable the bodies to be attached to all popular manufacturers' trucks, transforming the vehicle into a highly durable, safe and efficient unit.
Find out more

Folding underride guard

The folding underride guard ensures improved unloading ground clearance with road pavers when retracted.
Attachment parts

Attachment parts

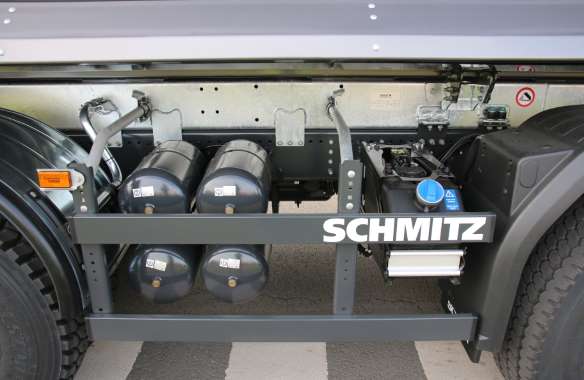

Attachments help to make everyday transport operations easier. Just a few of the many options available.

Body

  • Body
  • Rear
  • Roof
Body


Thermal insulation

The thermal insulation ensures excellent heat retention properties. As standard, the body offers a four-point temperature measurement through side openings. Optional: Mounting for an electronic measuring system.

Rounded steel body

Robust tipper body with low centre of gravity and high tipping stability thanks to the broad floor of the well.
The torsion-resistant subframe transforms the truck and body into a single extremely durable, safe and efficient vehicle.
Find out more
Rear

Different rear wall versions

There are a range of different rear wall versions to ensure the best possible unloading, perfectly adapted to every transport task.
Roof

Sliding tarpaulin

Comfortable and safe roof system. The electric roof covering can be opened and closed quickly and easily by remote control.

Certificates

Comprehensive certifications for your safety in everyday transport.

  • Thermal insulation       according to DIN 70001

    With DIN 70001 compliance, the thermal insulation meets all required technical criteria for asphalt transport.
    Read more

Our services

Service Partners keep you mobile and minimise your downtimes.

Service Contracts

With the right service contract, you retain full control over the costs and we make sure that you stay mobile!
Find out more
TrailerConnect? telematics provides you with all the information you need on your trailers.

Telematic

TrailerConnect® telematics provides you with all the information you need about your vehicles.
Find out more
Individual quote with attractive terms and conditions for the entire lifecycle of your investment.

Financing

We will provide you with a customized offer with attractive conditions for the entire life cycle of your investment.
Find out more

Media

  • Brief Information - Truck Tipper Body M.KI with Thermal Insulation
