M.CS

Short journey times and optimum utilisation of the cargo area are crucial in general cargo transport. The M.CS curtainsider truck is extremely efficient, combining a high load capacity with outstanding manoeuvrability. Well though-out loading and unloading solutions deliver further time-savings.

MCS with POWER CURTAIN

Your benefits

Simple coordination of the chassis thanks to the pre-agreed box body, and suitable for use with the chassis requirements of all leading vehicle manufacturers.
Read more
Optionally available as a through-loading trailer for rear loading and unloading.
Read more
Flexible solution for general cargo transport that is not possible with semi-trailer vehicles.
Read more
POWER CURTAIN - ease of handling and greater safety when loading and unloading without the need for support laths.
Read more
Available as the M.CS/Z.CS high-volume truck body and trailer combination when combined with the Z.CS central axle curtainsider trailer - loading and unloading in a single operation with through-loading equipment.

Read more
Height-adjustable lifting roof for simple loading and unloading with flexible internal heights.
Read more

Chassis & running gear

Chassis

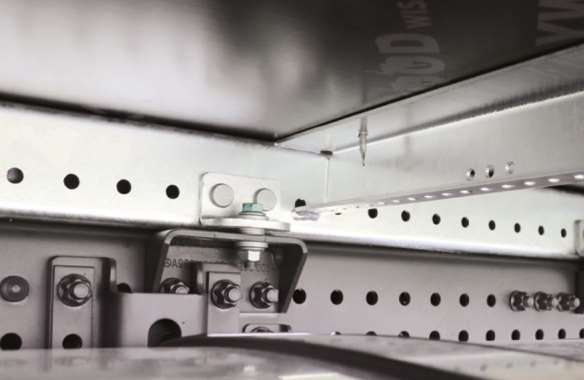

M.CS curtainsider truck body subframe

Chassis

Optimum corrosion protection with hot galvanised underbody and fittings for greater durability and value retention.

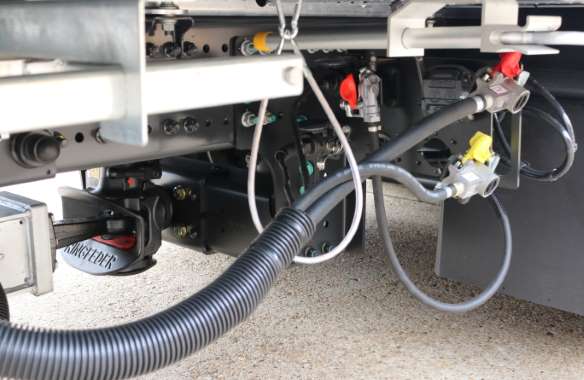

Pneumatically-operated trailer coupling

Trailer coupling

Convenient operation of the trailer coupling with pneumatic actuation on the coupling head.

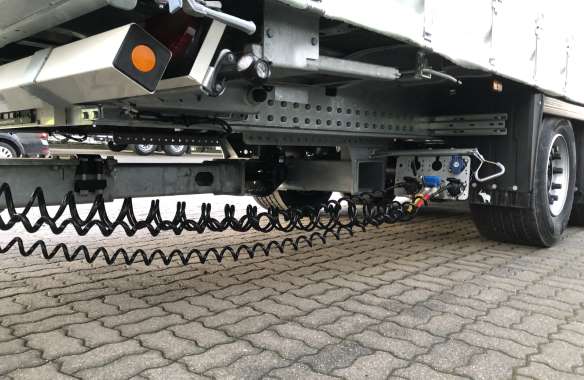

Folding underride guard for the truck curtainsider

Underride guard

Folding underride guard for flexible use as a stand-alone semi-trailer or as a high-volume truck body and trailer combination.

Body

Page
Equipment for through-loading trailers
Rear
Floor
Roof
Height adjustment

Page

POWER CURTAIN

The body is built without support laths for fast and secure loading and unloading. The tarpaulin is equipped with loops for flexible rear load securing combined with comprehensive certification.

The standard tarpaulin used on the curtainsider is extremely smooth-running and so can be opened and closed quickly and easily using only one hand.

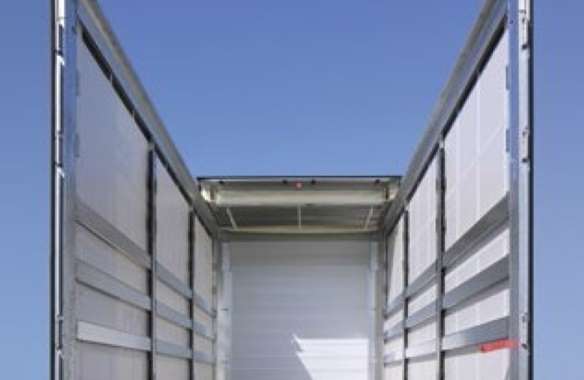

Standard body

The standard curtain used on the curtainsider is extremely smooth-running and so can be opened and closed quickly and easily using only one hand.

Equipment for through-loading trailers

Equipment for the M.CS_Z.CS through-loading truck

Through-loading trailer equipment

Short loading times with through-loading trucks that can be loaded by forklift M.CS/Z.CS or M.KO/Z.KO. Up to 38 Euro pallets can be loaded and unloaded without the trailers needing to be uncoupled.

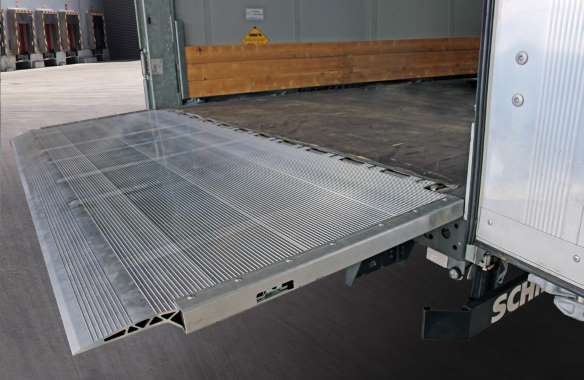

The spring-mounted bridge enables loading and unloading in one go

Bridge

The spring-loaded bridge can be folded down with minimal effort. The entire width of the body can be used, thanks to locking mechanisms directly in the corner stanchions.

Rear

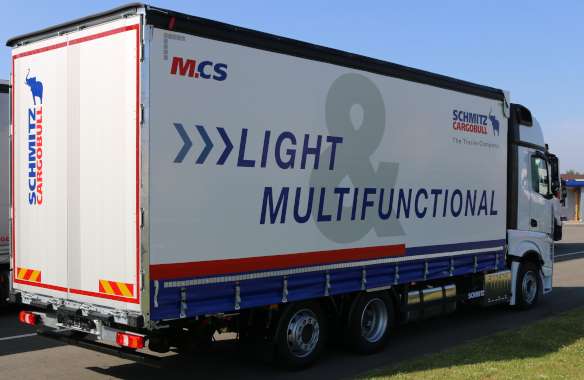

Einfacher Zugang zur Ware mit der Doppelflügeltür

Double wing door

The anodised aluminium profile rear wall doors are lightweight, durable and corrosion-resistant.
The doors' profile construction means that they can be simply repaired in the event of damage.

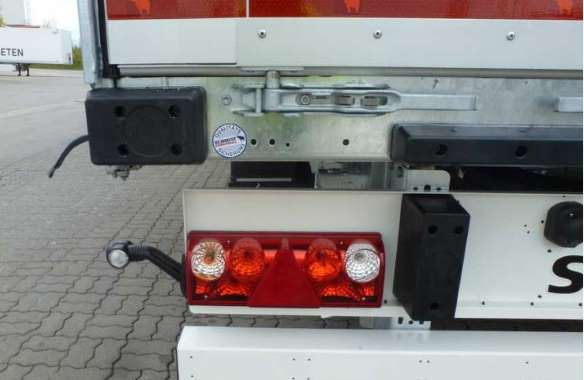

The rubber bumpers protect the semi-trailer body when approaching the ramp

Standard rubber bumper

Various high-quality rubber bumper designs protect the rear when the semi-trailer is reversing up to a ramp.

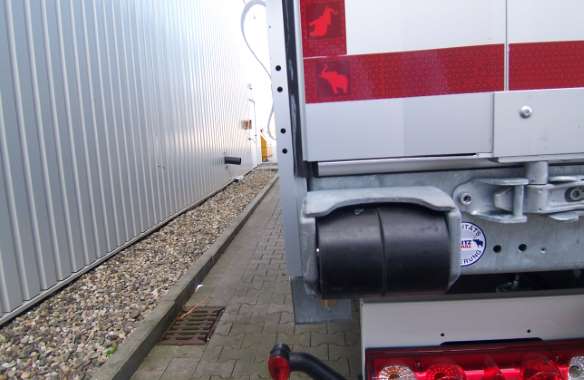

The rubber bumpers prevent damage to the rear portal of the curtainsider semi-trailer

Roller corner bumper

Roller corner bumpers compensate for vertical motion during loading and unloading on the ramp. The rubber bumpers prevent damage to the rear portal, protecting the semi-trailer.

Floor

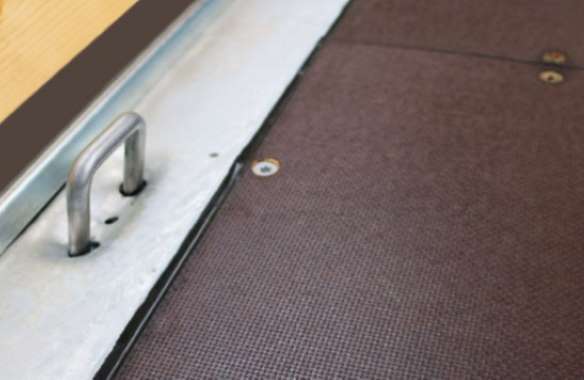

M.CS curtainsider truck body wooden floor

Plywood floor

Stable plywood floor with a stacker axle load of up to 5,460 kg.

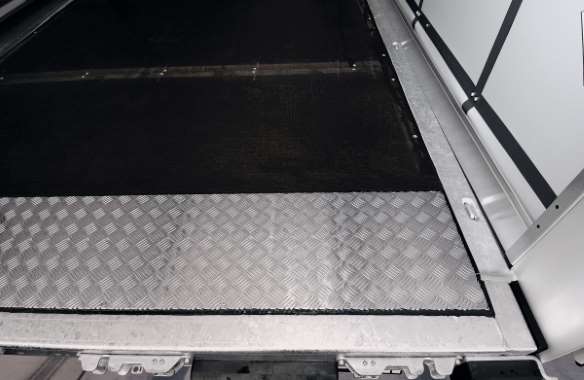

Protection of the rear portal with frequent loading and unloading

Base plates at the rear portal

When a trailer is frequently loaded by forklift, the rearmost base plate is often exposed to increased wear and tear. To protect it, an additional base plate is fitted at the rear portal, extending the service life of the trailer.

Roof

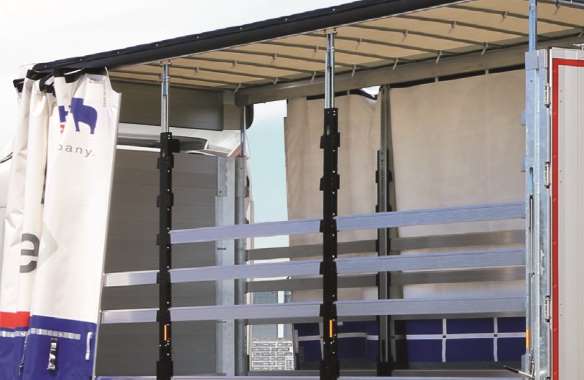

M.CS lifting roof for ease of loading and unloading

Lifting roof

The roof can be raised to increase the side through-loading height. This provides for convenient loading and unloading, preventing damage to the load and roof.

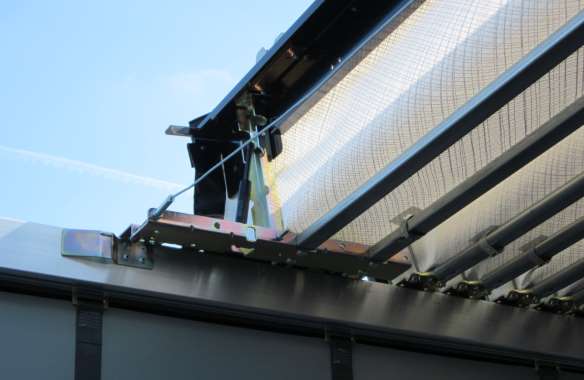

Excellent body strength with the Schmitz Cargobull Safety Roof

Safety Roof

The standard Safety Roof also contributes to the strength of the trailer body. The Safety Roof can be slid forward or backwards and stopped in an open position for loading and unloading by crane.

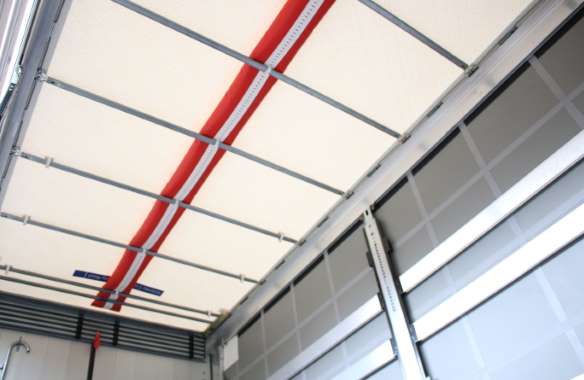

Transport safely with the Roof Safety Airbag

Roof Safety Airbag

The Roof Safety Airbag (RSAB) improves safety in traffic. When inflated, the RSAB creates a bulge in the roof, causing water to run off and preventing ice formation in winter.

Height adjustment

Adjustment of the body to the load volume with the VARIOS body

VARIOS

Use the height-adjustable TÜV Centre-certified body flexibly with different coupling heights. If required, the load volume grows with your requirements, while always remaining below the permitted overall height

Load securing

Restraint
Lashing points and aids

Restraint

Flexible load securing system

The flexible load securing system stands out on account of its high test forces. Its ease of handling is impressive and it can be flexibly positioned within the trailer.

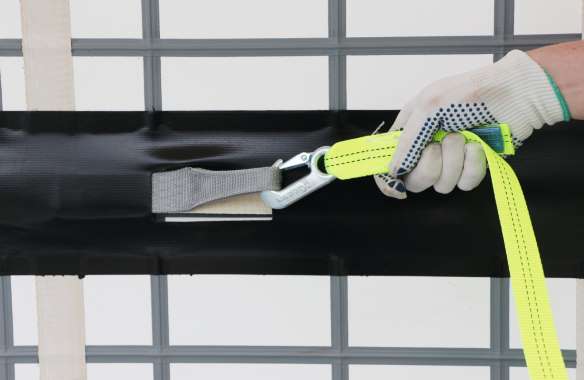

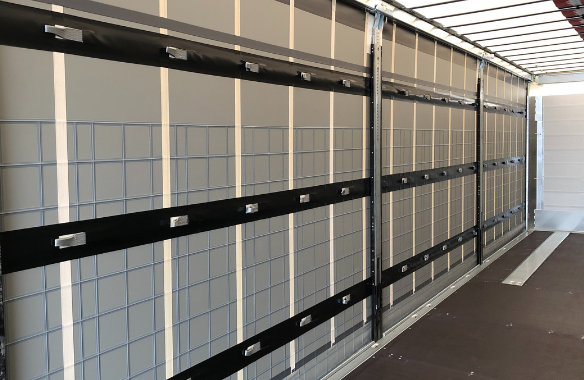

Recessed load securing loops in the POWER CURTAIN

Load securing loops

The curtain loops integrated in the POWER CURTAIN curtain provide flexible load securing options with excellent blocking forces, while being easy to use.

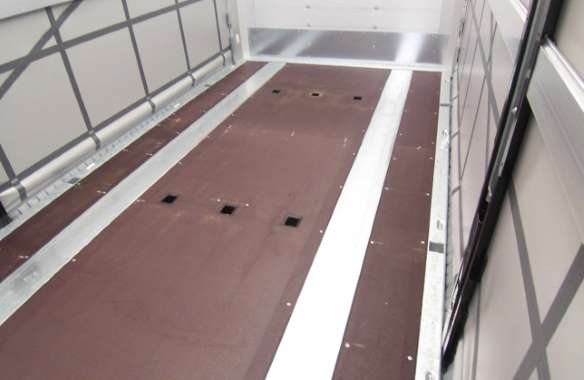

Stanchions inserted into the floor provide for form-fitting load securing

Stanchion pockets

The stanchions inserted in the floor can be used for form-fitting loading, providing yet another flexible load securing option. They efficiently secure in place longer materials, among other bulky goods.

Lashing points and aids

Lashing eyes with a pulling force of up to 5 tonnes

Lashing eyes

Lashing eyes for up to 2 tonnes provide flexible load securing points, and the load can be quickly secured due to the efficient combination of load securing equipment.

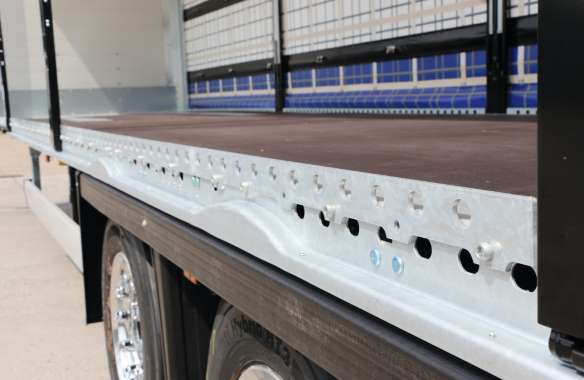

Lashing holes to fit all popular hooks to efficiently secure your load

Full-length lashing holes

These standard lashing holes in the outer frame or optionally in the pallet stop mean that your load can be very quickly, efficiently and flexibly secured. The lashing holes fit all popular hooks.

DIN EN 12642 Code XL
Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
Read more
Daimler Directive 9.5
Daimler AG has its own separate directive for binding load securing methods for the correct and proper transport of goods to and from its factories. The Daimler Directive 9.5 is increasingly used for all transportation work in the automotive sector.
Read more
Beverages
Trailer bodies that confirm to DIN EN 12642 Code XL with the addition "suitable for beverage transport" meet the special requirements governing well pallets and drums. Suitable for one- or two-layer beverage transport.
Read more
Tyres
Loose tyres that need to be transported interlocked with each other settle when they are transported and press heavily against the side walls. Body stability is ensured with additional fittings in accordance with DIN EN 12642 Code XL.
Read more
