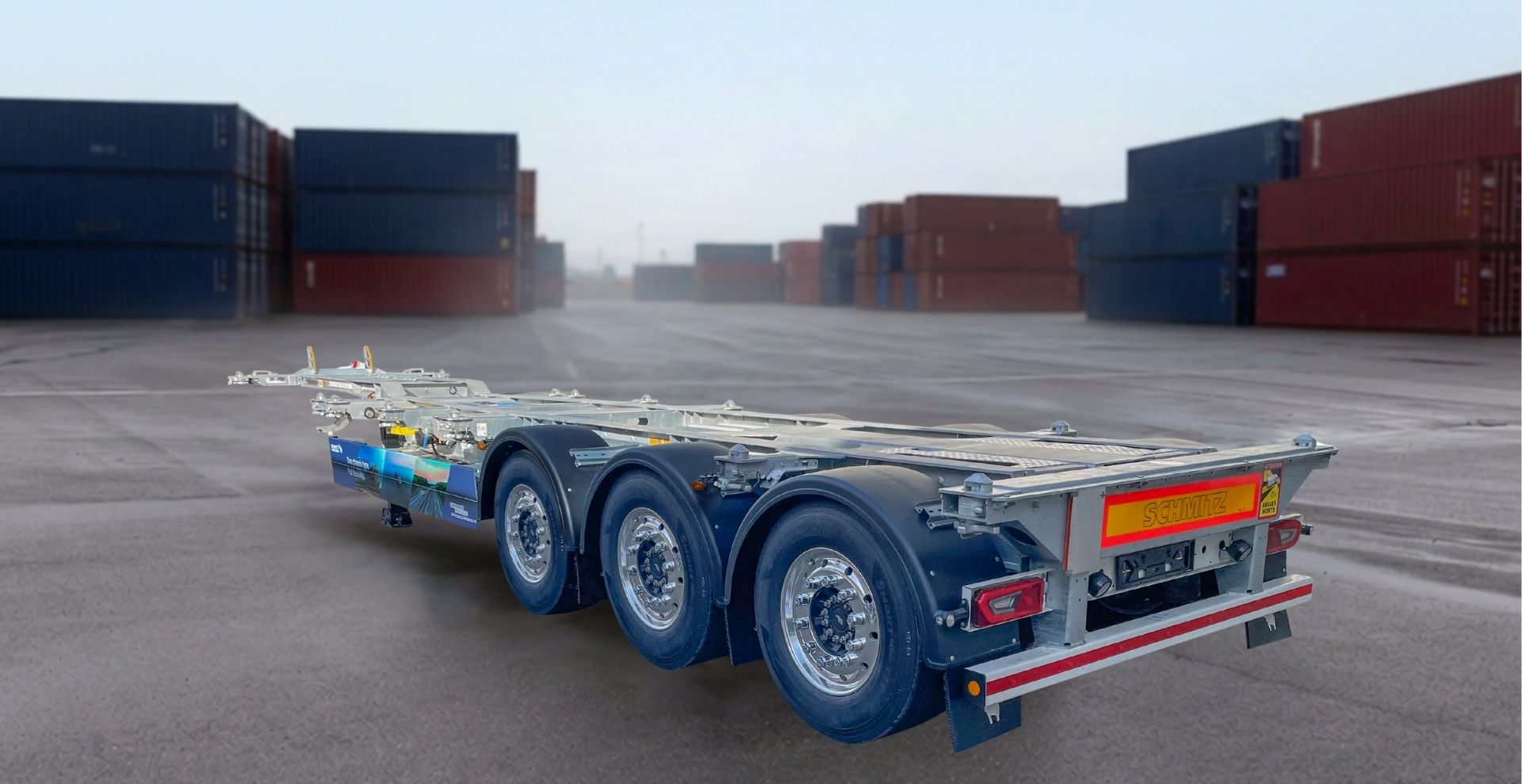

S.CF ALLROUND 20-45

S.CF ALLROUND 20-45

The S.CF ALLROUND 20-45 semi-trailer container chassis delivers flexibility, safety and efficiency.

Adjustable rear

NEW: Flat rear

  • Fleksibilna: pripremljena za kontejnere od 20' do 45' sa i bez tunela
    Pročitajte više
  • Fleksibilna: pripremljena za kontejnere od 20' do 45' sa i bez tunela
    Pročitajte više
  • Fleksibilna: pripremljena za kontejnere od 20' do 45' sa i bez tunela
    Pročitajte više
  • Opcija: Zabravljivanje za 40' i 45' kontejnere bez tunela
    Pročitajte više
  • Osmišljeno: 130 mm visok vrat rama za ukupnu visinu 4.000 mm
    Pročitajte više
  • Praktična: pneumatski zadnji produžetak, mehanički prednji produžetak
    Pročitajte više
  • Spreman za prevoz trajektom: 2 para zakački za vezivanje pri transportu trajektom
    Pročitajte više
  • Spreman za prevoz trajektom: 2 para zakački za vezivanje pri transportu trajektom
    Pročitajte više

Your benefits

  • Versatile use

    Front and rear extension mechanisms allow easy adaptation to different container sizes from 20’ to 45’

    Pročitajte više
  • Secure locking

    The height-adjustable KLAPP LOCK locks the front container when loading 2 x 20’ containers.

    Pročitajte više
  • Easy handling

    Mechanical front extension, pneumatic rear extension and intuitive user guidance ensure efficient operation in day-to-day use.

    Pročitajte više
  • Seaworthy

    2 pairs of ferry lashings

    Pročitajte više

Karakteristike opreme

  • Šasija
  • Vozno postolje
  • Zabravljivanje
  • Others
Chassis
Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

Opšte

Schmitz Cargobull kontejnerske šasije izrađuju se čeličnih profila visoke čvrstoće i sistematski se zaštićuju od korozije.
Saznajte više
The Schmitz Cargobull spring-mounted, roller-borne front extension.

Front extension

Front beam can be overloaded at the front for transporting 45' containers.
Saznajte više
The rear extension can be pneumatically extended to the required container position.

Zadnji produžetak

Zadnji produžetak može se pneumatski izvući na željenu poziciju kontejnera.
Saznajte više
S.CF container support

Nosači kontejnera

Opcija: Tri para preklopnih nosača kontejnera za 40'/45’ kontejnere bez tunela.
Saznajte više
S.CF container guide

Pozicioneri kontejnera

Pozicioneri osigurani kukama olakšavaju postavljanje kontejnera sa tunelom.
Saznajte više
All the required equipment is stored in the tool box.

Kutija za alat

Sve potrebne uređaje možete bezbedno i čisto čuvati u opcionoj, stabilnoj kutiji za alat.
Saznajte više
The semi-trailer container chassis can be equipped with ferry lashings for ferry transport.

Zakačke za vezivanje pri transportu trajektom

Šasija kontejnerske poluprikolice može se opremiti zakačkama za vezivanje pri transportu trajektom za primenu u transportu trajektom.
Saznajte više


The new in-house developed underride guard for better handling

Mechanical front extension for 45‘ containers is spring-mounted on rollers and is easy and safe to handle.
Body
Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

ROTOS? running gear

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. Ideally matched components ensure reliable brake performance even in continuous operation.
Saznajte više

Automatic axle lift

The optional lift axle as a starting aid extends the  wheelbase and thus increases the pressure on  the drive axle. Unloaded in the lifted position, tire  wear is reduced.
Saznajte više
Zabravljivanje
Saznajte više
Your semi-trailer container chassis fits to the container in a matter of moments.

STEP LOCK mehanizmi

STEP LOCK mehanizmi na zadnjem produžetku omogućuju vam da podesite kontejnersku šasiju prema kontejneru sa i bez tunela. Moguća je jednostavna promena visine zabravljivanja.
Saznajte više
Fold up, let the safety hooks engage and mount the container.

KLAPP LOCK mehanizmi

Dva KLAPP LOCK mehanizma preuzimaju zabravljivanje zadnjeg dela prednjeg kontejnera kod utovara 2x 20' kontejnera: Podignite ih, pustite da se uglave sigurnosne kuke i postavite kontejner.
Saznajte više

MULTI LOCKs

The MULTI LOCK locking mechanism on the mechanical front extension to accommodate 45' Euro containers for total versatility.
Saznajte više
Others

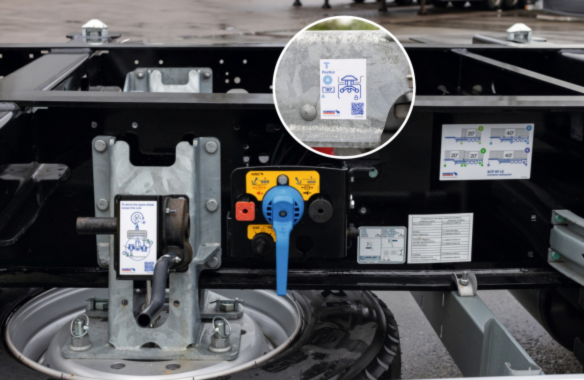

New operating concept

New operating concept with loading plan and clear function and warning notices on locks and extensions.
Saznajte više

Simple explanations via QR code

QR codes with operating videos support handling. Positioned clearly visible and easily accessible. Scan the QR code and get quick help for various handling situations.

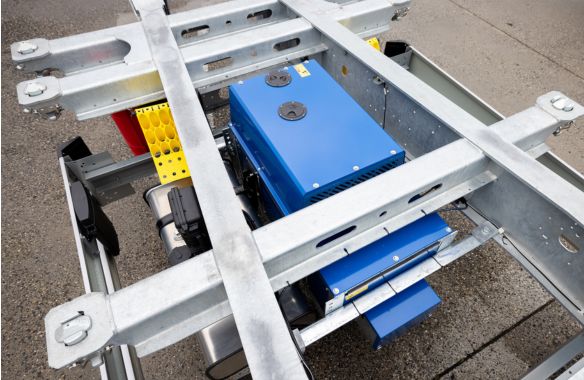

Brand generator set ex works for supplying power to refrigerated containers

Genset financing offer

Refrigerated containers (20/40/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transport. Schmitz Cargobull offers a complete ex-works solution for the S.CF 45' EURO container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.

Finance the generator set including CEE socket 32A/3h with Schmitz Cargobull Finance from 263 euros per month and benefit from numerous advantages.

  • Brief Information: Transport solution for refrigerated containers
    Download

Control panel

The control panel with TFT monitor shows the operating status, consumption, total running time and the next maintenance date, among other things.
Saznajte više

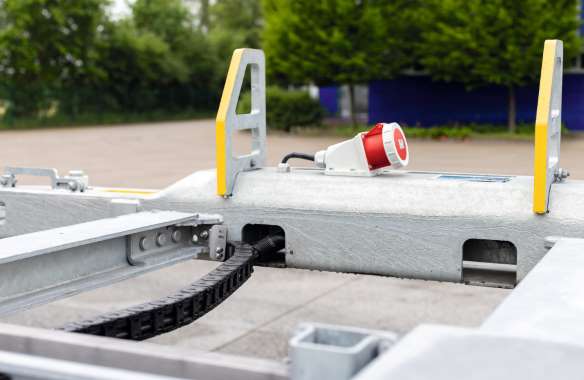

CEE socket

Easy handling: power supply to the refrigerated containers via the CEE socket on the front bar.
Saznajte više

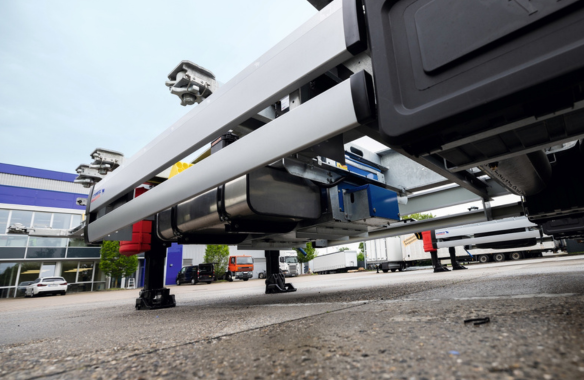

Diesel tank

130 litre diesel tank for continuous operation of refrigerated containers for several days.
Saznajte više

Your advantages

  • One-stop shopping: complete solution ex works without additional effort by retrofitting at the service partner
  • Customised and reliable thanks to individual adaptation to the S.CF ALLROUND 20-45 container chassis
  • High ground clearance of approx. 310 mm
  • Self-sufficient power supply for up to 60 hours from remote units
  • Branded product with large service network
  • Immediately available from stock

Naše usluge

Service Contracts

With the right service contract, you retain full control over the costs and we make sure that you stay mobile!
Više o temi:Service Contracts

Telematic

TrailerConnect® telematics provides you with all the information you need about your vehicles.
Više o temi:Telematic

Financing

We will provide you with a customized offer with attractive conditions for the entire life cycle of your investment.
Više o temi:Financing

Mediji

  • Brief Information Container Chassis S.CF ALLROUND 20-45
    Download
