S.BO OPENSIDER

With its fully side-opening doors, versatile usage options and improved accessibility, the S.BO OPENSIDER offers an efficient, safe and flexibl solution for te transport of non-refrigerated goods.

Prednosti

Faster loading and unloading:
The side access allows for quick loading and unloading, especially in narrow or crowded areas.
Pročitajte više
Increased security:
Reduces the risk of injury by minimizing climbing into the truck.
Pročitajte više
Improved accessibility:
Side access to the load is ideal for urban environments or locations with limited rear access.
Pročitajte više
Certified safety and stability:
Structural strength in accordance with DIN EN 12642 Code XL for the safe transport of demanding dry freight.
Pročitajte više
Time and work efficiency:
Shortens turnaround time at loading bays and reduces dependence on specific loading bay configurations.
Pročitajte više
Better use of space:
Allows easy organization and access to specific items without having to unload everything.
Pročitajte više
Maximum flexibility in the loading process:
The S.BO OPENSIDER is available with either one-sided or two-sided opening side walls.
Pročitajte više
Proven dry freight performance:
The robust FERROPLAST® box body reliably protects goods from te weather and theft.
Pročitajte više

Šasija i vozno postolje

Šasija
Vozno postolje

Chassis

The MODULOS chassis offers greater reserves of power

MODULOS šasija

MODULOS šasija pruža veće rezerve snage zahvaljujući većem raspodeljenom opterećenju i optimizovanoj težini. Robustan ram vozila sa valjanim profilima podužnih nosača izrađen iz jednog komada obezbeđuje veću stabilnost bez termičkog krivljenja.

Running gear

ROTOS

Odlične karakteristike vožnje usled serijskog MRH vazdušnog oslanjanja (Multi-Ride-Height). Zahvaljujući inovativnom sistemu za ventilaciju, nastaje manje toplote i kočione obloge drže duže.

Axle lift for better traction

Lifting axle

The axles of ROTOS^® running gear can optionally be equipped with a lifting function. The axle lift and starting aid increase efficiency, driving safety and traction, reducing tyre wear.

The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.

Nadgradnja

Sidewall
Frontwall
Duplo paletiranje
Zadnji deo
Pod
Krov

Side

Sidewall

The sidewall system allows fast and convenient handling, enabling the entire side to be opened or closed in under one minute, which reduces downtime and speeds up loading processes. Five interconnected door segments on each side ensure stable operation, with secure locking mechanisms at the front and rear of the semi-trailer body. Optionally for the European version a double-sided foldable wall is available, offering loading and unloading from both sides for greater flexibility in everyday transport operations.

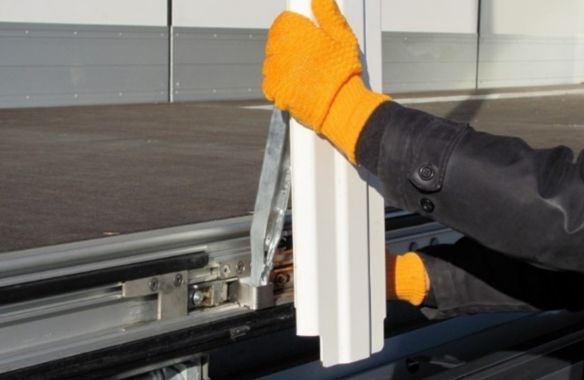

Sliding middle post 1

Sliding middle post

The sliding middle post design ensures longer durability of the side doors and allows easy, precise positioning. The sliding middle post can be detached from its central position and repositioned across the full width of the trailer for maximun flexibility during loading.

Frontwall

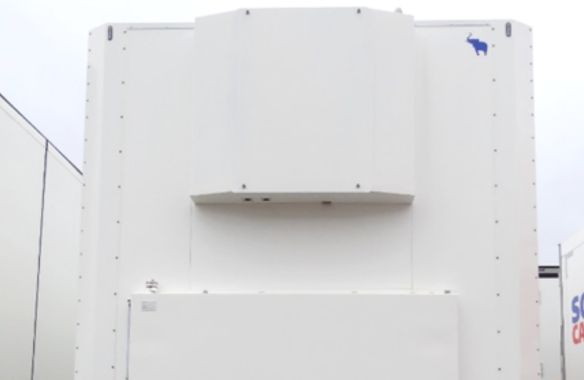

Heating unit

Heating unit

The heating unit option was developed to transporting temperature-sensitive goods in cold climates. It ensures consistently positive temperature inside the trailer body, making it suitable for products such as electronics, beverages, paints and various construction materials.

Interior

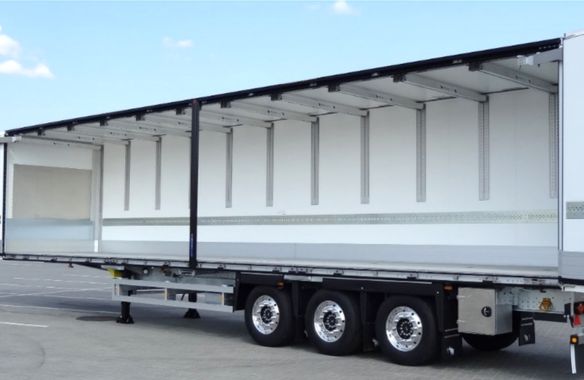

Double-decker system

Double-decker system

The double-decker system provides for flexible and greater utilization of the semi-trailer. The system provides for gap-free loading using two infinitely height-adjustable and split levels. Ideal for non-stackable freight.

Rear

Aluminium rear door for the S.KO EXPRESS box body semi-trailer

Zadnja vrata

Zadnja vrata od aluminijuma su otporna na koroziju, dugovečna i lagana.

Insulated roller shutter for the S.KO box body semi-trailer

Rolo vrata

Zahvaljujući izolovanim rolo vratima, nema više gubitka vremena i rashlađenosti, jer se vozilo može otvoriti nakon navoženja na rampu.

Dynamic Ramp Protection System (DRP) offers protection when approaching the ramp

Dinamička zaštita za rampe

Sistem štiti nadgradnju kad vozilo udari od rampu. Istovremeno valjkasti odbojnici od plemenitog čelika izjednačavaju promene visine vozila usled vožnje viljuškara.

Reversing camera

A reversing camera assists the driver when reversing. Whether docking to ramps, manoeuvring within a confined space or in narrow streets, visibility to the rear provides greater safety and avoids damage.

Fast unloading even without a ramp with a tail lift for the S.KO box body semi-trailer

Podizna platforma

Zahvaljujući utovarnoj platformi, utovar i istovar bez rampe ne predstavlja problem. Utovarna platforma omogućuje direktan utovar i istovar.

Floor

S.KO EXPRESS wear plates at the rear

Podni limovi u zadnjem delu

Kod čestih utovara sa viljuškarom je zadnja podna ploča izložena povećanom habanju. Radi zaštite je na zadnjem delu ugrađen dodatni podni lim, čime se produžava vek trajanja.

Wooden floor for the S.KO EXPRESS box body semi-trailer

Drveni pod

Dugovečan i robustan protivklizni pod od višeslojnih ploča za različita osovinska opterećenja viljuškara. Zahvaljući zaptivenim podnim oplatama, na tovar ne dospeva vlaga odozdo.

Krov

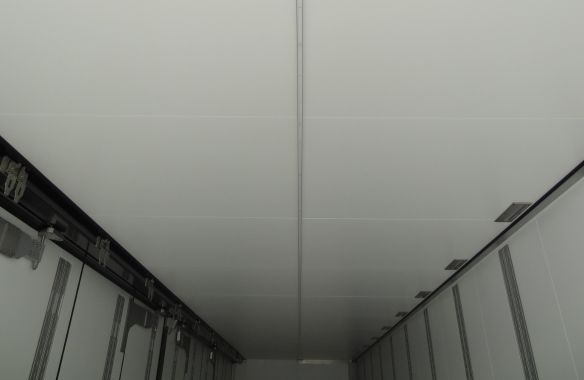

FERROPLAST® roof

The standard FERROPLAST^®-insulated roof ensuring excellent fuel efficiency and outstanding insulation.

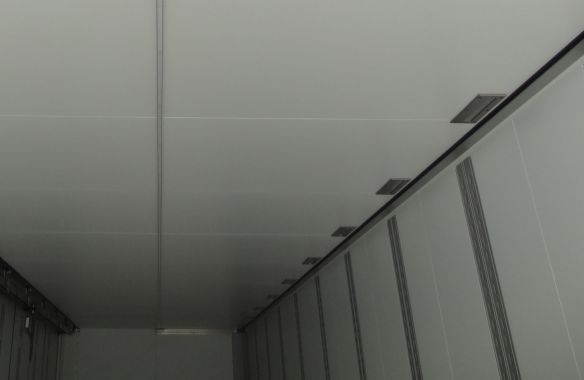

Improved interior lighting

With the new LED light strips, the interior is now even better illluminated, ensuring more safety when loading and unloading at any time of day.

Sistemi za pomoć

Sistemi za kontrolu pritiska u pneumaticima
Indikator istrošenosti kočionih obloga
Trepćuće bočno markirno svetlo

Pressure monitoring system

The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring by TrailerConnect® immediately possible – if sensors are mounted on the tyre. The system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.

Brake pad wear indicator

Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.

Flashing side marking lights

Obezbeđenje tereta

Obezbeđenje

Obezbeđenje

Grede za obezbeđenje tereta

Nepaletiran tovar može se obezbediti pomoću šina za obezbeđenje tereta postavljenih u ravni površine. Grede za obezbeđenje tereta mogu se proizvoljno umetnuti, a unutrašnji prostor se može slobodno koristiti.

Sertifikati

Sveobuhvatno sertifikovanje radi vaše bezbednosti u svakodnevnom transportu.

DIN EN 1264 Code XL
Serijski sertifikovana čvrstoća nadgradnje. Kroz sertifikaciju prema standardu DIN EN 12642 Code XL nadgradnje preduzeća Schmitz Cargobull ispunjavaju zahteve za ojačane nadgradnje u svrhu obezbeđenja tereta.
Pročitajte više
Pročitajte više

Tehnički podaci

Internal body length13.62m
Intenal body width2,475mm
Internal body height2,650mm
Pallet spaces34EUR palete
