Cooling units for perfect temperature-controlled freight transport

Cooling units for perfect temperature-controlled freight transport

Our cooling units are economical, lightweight and quiet. Extremely precise temperature control, optimum heat output and reduced defrosting cycles are just a few of their excellent properties. MonoTemp and MultiTemp versions offer long maintenance intervals and excellent availability at low cost. The cooling units are also suitable for the transport of pharmaceutical products.

Your benefits

  • Up to 15% less fuel consumption*, especially in partial load operation
    Read more
  • Optimised temperature control for sensitive goods transport
    Read more
  • Innovative and reliable design with extended maintenance cycles
    Read more
  • Complies with the new EU Exhaust Gas Regulation
    Stage V
    Read more
  • Proactive service through real-time monitoring of the cooling unit
    Read more
  • Short defrost cycles and high heating capacity for fast defrosting
    Read more

  • Greater comfort and lower noise levels thanks to a newly developed decoupling of the drive unit

    Read more
  • Europe-wide service network with trained specialist workshops
    Read more
  • Over-the-air updates, control and monitoring of technical functions with TrailerConnect®
    Read more

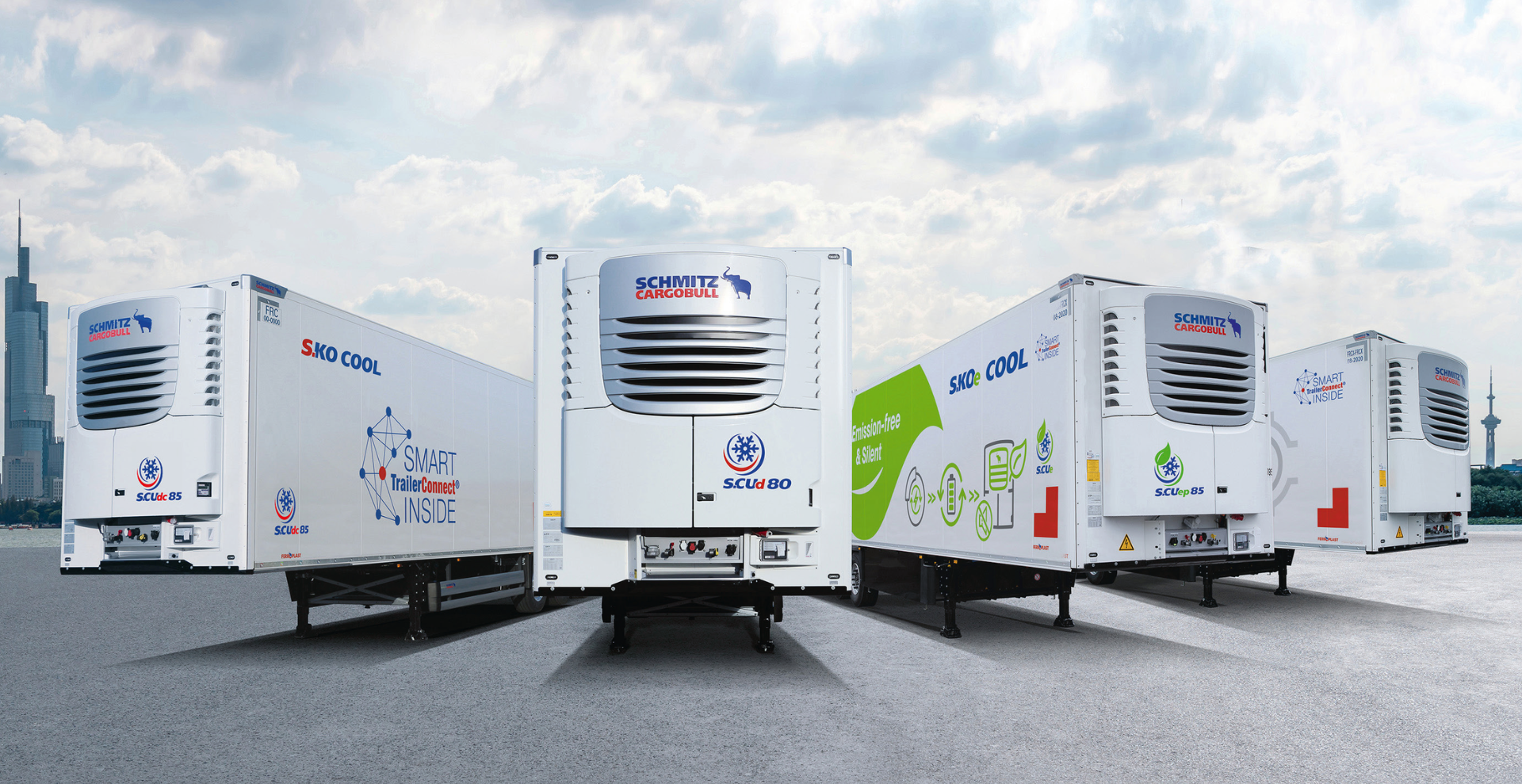

S.CU d80 and S.CU V2.0 cooling unit

The right product for every requirement

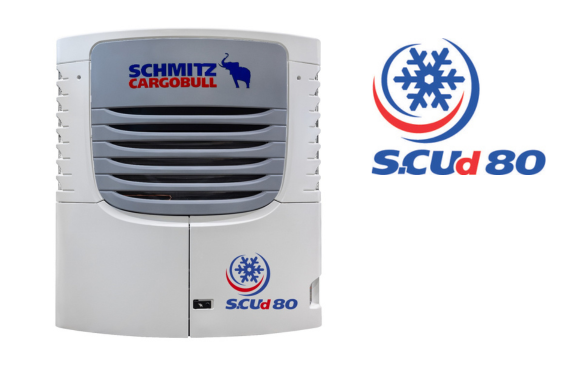

S.CU d80

New, quiet transport refrigeration machine also for low fuel quality

  • Proven, robust, emission-optimized diesel engine
  • Optimized refrigeration circuit with scroll technology and microchannel condenser for higher operational reliability at increased outside temperatures
  • Quietest transport refrigeration machine on the market: 94.9 dB(A)
  • Up to 14,000 watts cooling capacity, up to 10,500 watts heating capacity
  • Reduced refrigerant charge for greater sustainability
  • Available in MonoTemp version

S.CU V2.0 with performance mode

Powerful transport refrigeration machine with MultiTemp option

  • Highly efficient common rail diesel engine and optimized generator with precise temperature management
  • Performance mode with three selectable modes for efficient operation: Power, Normal and Eco
  • Start/stop in electric mode
  • Save up to 15% fuel with Performance Mode
  • Highest cooling and heating capacity for fast pre-cooling and heating up
  • 15,900 watts cooling capacity, 12,500 watts heating capacity
  • Maximum flexibility - available as Mono- and MultiTemp

Applies to all cooling units S.CU:

  • Performance
  • Comfort
  • Service

Performance

S.CU Kältemaschine Schmitz Cargobull

Energy savings

Up to 50% fewer defrosting cycles for greater energy savings. The cooling fins are arranged in an offset pattern. This slows down the freezing process, saving fuel and protecting the refrigeration chain.
Find out more
Teillastregelung

Partial load control

Intelligent partial load control in the cooling unit reduces temperature fluctuations to a minimum. An even, precise cooling output is also guaranteed in MultiTemp mode for all temperature zones.
Find out more
S.CU Kühlgerät von Innen

S.CU drive unit

The new generation of S.CU cooling units lowers fuel consumption due to the improved combination of diesel engine and generator. The intelligent partial load operation of the latest drive unit ensures that there is only minimal deviation from the cold storage temperature setpoint, combined with the most efficient use of resources.
Find out more
Schmitz Cargobull S.CU cooling unit

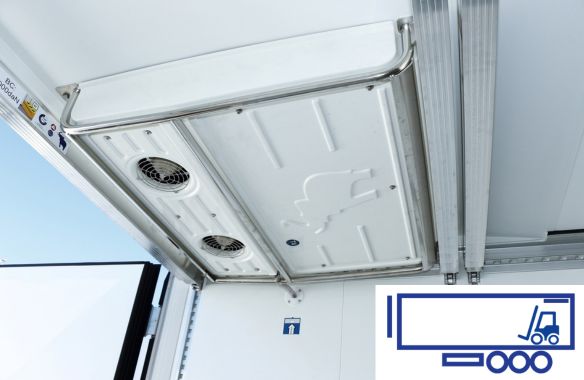

Additional roof evaporator for MultiTemp operation

Due to its power, only one additional evaporator is needed for the second temperature zone. Its shallow dimensions provide greater loading height under the unit. As over half the trailer width always remains free, you benefit from the full loading height for fast and reliable handling when loading with forklift trucks.
Find out more
S.CU Kältemaschine - Temperaturzonen

Temperature zones

Safe and efficient transport with two separate temperature zones. Precise temperature control for frozen goods down to -20C and up to +10C.
Find out more

Comfort

S.CU Kältemaschine Schmitz Cargobull

Control panel

The cooling unit control panel can be used to configure all the important transport settings and display the current status in 17 European languages. A PIN protects against unauthorised access.
Find out more

Remote Control

With integrated Schmitz Cargobull telematics and the TrailerConnect® portal, it is possible to command the refrigeration machine remotely and with just a few clicks at any time.

Find out more
Temperaturdrucker

Temperature printer

With the Schmitz Cargobull temperature printer you can quickly and easily create a paper printout of the certified temperature values directly on the vehicle.
The printout can be configured using the free beSmart App. This is a simple and convenient way of setting and changing, for example, the printing period or the language of the printout.


The temperature printer is an optional feature of the Smart Trailer.

Find out more

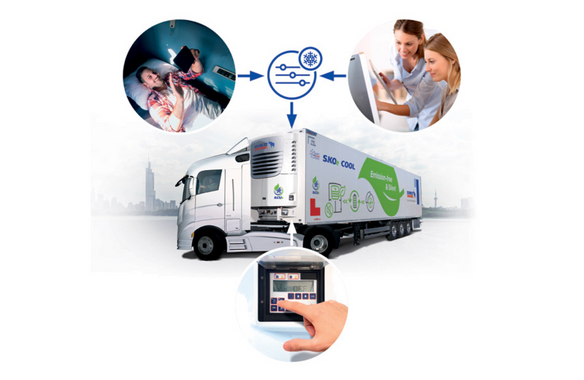

Schmitz Cargobull CargoSets

With pre-configured operating modes for the Schmitz Cargobull refrigeration machine (S.CU), you can now ensure that the temperature of the goods to be transported is always correct for every journey.
This is achieved in no time at all thanks to simple creation of the Cargosets in the TrailerConnect® portal, direct transmission of the Cargosets "over the air" to the refrigeration machine and even simpler activation for the driver via the S.CU display. Simple system, direct transmission without a workshop visit and flexible selection of different operating modes are guaranteed to leave no room for manual operating errors in the future. More planning and efficiency is not possible.

Find out more

Service

Pro-active monitoring 2.0

A properly functioning cooling unit is absolutely essential for temperature-controlled goods. However, failures can also occur here and then quick action is required. Thanks to Schmitz Cargobull's pro-active monitoring, you automatically receive a call from Cargobull Euroservice when an alarm message occurs. This means that you can react quickly and avoid damage to the goods.

* Offer is included in the EXECUTIVE package.



Find out more

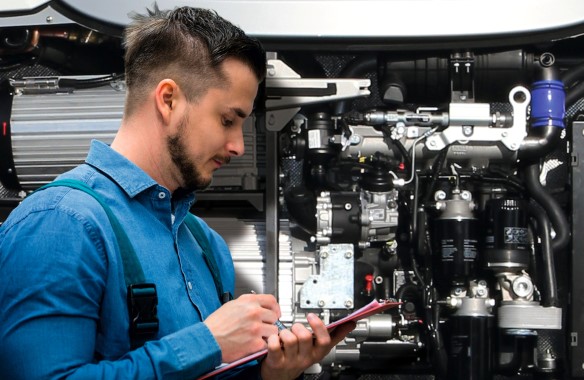

Professional full service

You receive all the well-known Schmitz Cargobull service benefits for the entire range of S.CU cooling units.
Find out more

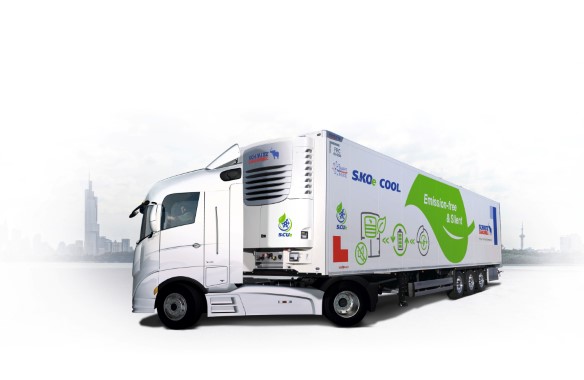

Information about the electric cooling unit

Electric cooling - S.CUe

The S.CUe is the electric cooling unit for the S.KOe COOL and S.KO CITY. 100% output with zero emissions, specially developed for inner-city distribution transport.
Find out more

What our customers say

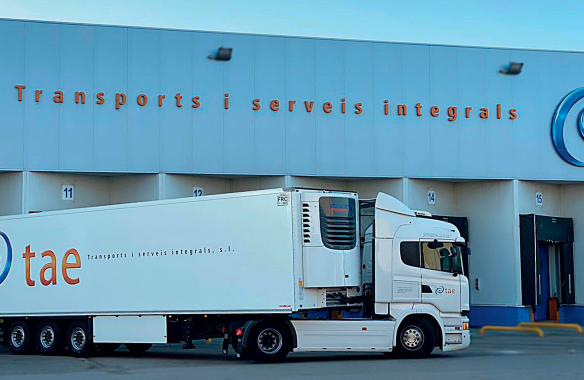

TAE

TAE Transports i Serveis integrals

The Spanish transport and logistics company TAE Transports i Serveis integrals is reinforcing its fleet with 40 S.KO COOL SMART reefer with the EXECUTIVE PLUS package and is therefore once again relying on our technology and services.
Find out more
