S.CS FIXED ROOF

The UK has distinct requirements governing height (>4000 mm) and permitted total weight (44 tonnes). S.CS FIXED ROOF curtainsider semi-trailers conform to these requirements with their fixed roof consisting of steel elements, low empty weight and payload of up to 32 tonnes.

S.CS FIXED ROOF

Your benefits

Schmitz Cargobull aluminium roof allows a side loading height of up to 3,100 mm
Read more
Form-fitting loading of ISO pallets through the straight front wall even without the transverse thrust of the forklift.
Read more
High body strength certified to DIN EN 12642 Code XL, with optional beverage certification
Read more
Bolted connections make the chassis easy to repair
Read more
Rolled, galvanised MODULOS chassis – easy to maintain with high corrosion protection and a 10-year guarantee against rusting through
Read more

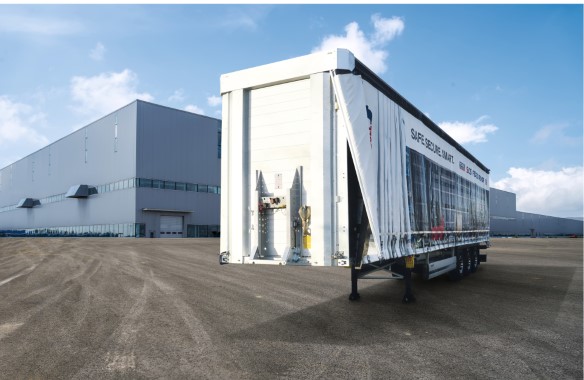

Aluminium front wall with UK-design of steel corner supports.
Read more
Schmitz Cargobull aluminium roof with various load securing options.
Read more

Chassis & running gear

Chassis
Running gear

Chassis

MODULOS

MODULOS - Chassis

Rolled MODULOS chassis has a repairfriendly design based on bolted, hot galvanised technology. It provides high value retention and low total cost of ownership as well as options to easily modify the modular system at any stage.

Running gear

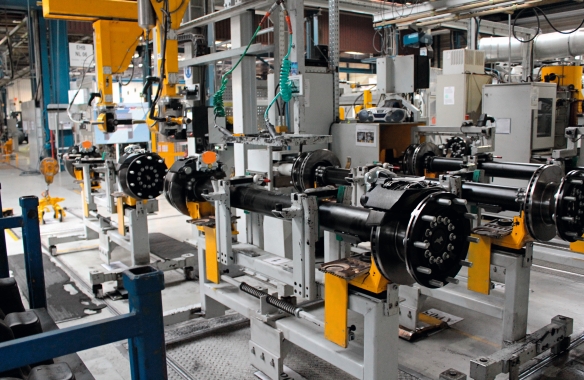

ROTOS

ROTOS

ROTOS axles with disc brakes for high traffic safety and lower total cost of ownership. Six years’ warranty on hub and tube, and more than 1 million ROTOS running gear sold to date.

Axle lift for better traction

Lifting axle

The axles of ROTOS^® running gear can optionally be equipped with a lifting function. The axle lift and starting aid increase efficiency, driving safety and traction, reducing tyre wear.

The Load Spread Program relieves pressure on the rear axle

Load Spread Program

If the semi-trailer is partially unloaded, the centre of gravity shifts and the fifth-wheel loading becomes heavier. The Load Spread Programme (LSP) takes pressure off the rear axle, compensating for the shift of the centre of gravity.

Body

Page
Floor
Roof
Rear
Front wall

Page

Sliding curtain

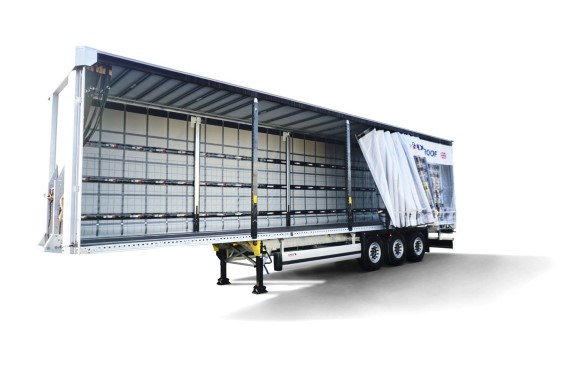

XL load-securing side curtain 1,800 mm high. Built-in anti-theft protection by means of steel wires incorporated in the curtain to prevent intentional cutting. Simple to use for side loading and unloading with two sliding posts and a side curtain with 18 buckles.

Floor

Protection of the rear portal with frequent loading and unloading

Base plates at the rear portal

When a trailer is frequently loaded by forklift, the rearmost base plate is often exposed to increased wear and tear. To protect it, an additional base plate is fitted at the rear portal, extending the service life of the trailer.

High stacker axle load and a permanently elastic adhesive bonding of the floor

Glued floor

Permanently elastically bonded floors are load-bearing and protect the freight from the effects of weathering from below. As well as providing a watertight and sealed loading surface, the bonded floor also provides for a higher stacker axle load.

S.CS curtainsider semi-trailer wooden floor for different stacker axle loads

Wooden floor

Robust and durable perforated floors for various stacker axle loads are available. The floor plates are sealed to prevent moisture from reaching the freight from below.

Non-slip floor increases the safety of goods and prevents slipping

Non-slip floor

The non-slip floor with plastic coating keeps the load in place. Load securing is easier with a higher coefficient of sliding friction.

Roof

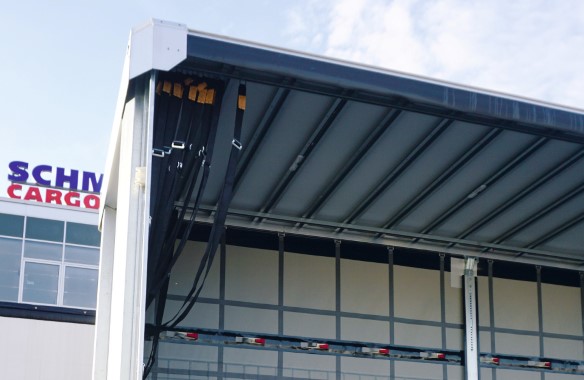

Fixed roof

Fixed Schmitz Cargobull aluminium roof load restraint options. Our optional restraint straps with recessed tracks on both sides or in the middle prevent loads from slipping, improving safety.

Rear

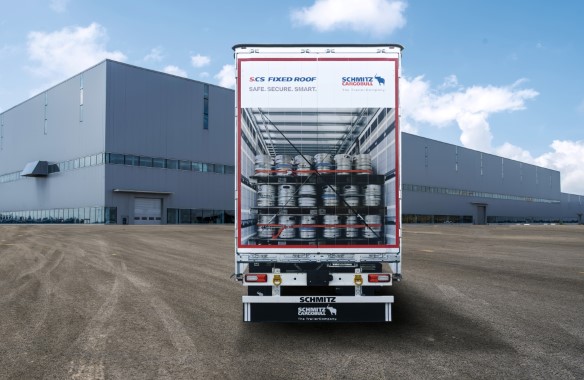

Rear

Straight rear panel and flush lock rods make sign writing easy.

Easy to repairs door hinges and hot-dip galvanised corner supports for durability.

Front wall

Front wall

The C-couplings PLUS 2 x 7 + 1 x 15-pin sockets fitted at the front of the bulkhead fit all tractor units and have an operator-friendly design, reducing the risk of confusing the connections.

Assist systems

Tyre pressure systems
Brake pad wear indicator
Electronic ramp approach aid

Pressure monitoring system

Control and timely information on tyre pressure with the tyre pressure system

Tyre re-pressurisation system

The tyre re-pressurisation system checks the tyre pressure and automatically inflates the tyre if required. This results in lower tyre wear and improved driving characteristics.

The Schmitz Cargobull tyre pressure control system.

Pressure monitoring system

The tyre pressure monitoring system displays when you need to top up air into a tyre. The correct tyre pressure reduces wear and tear while saving fuel due to improved rolling resistance.

Brake pad wear indicator

Brake pads always in sight

Brake pad wear indicator

The wear display signals at an early stage when a brake pad needs replacement, ensuring greater safety in road traffic and avoiding downtime and high consequential costs.

Electronic ramp approach aid

Information on resetting with the electronic ramp approach aid

Electronic ramp approach aid

The electronic ramp approach aid assists drivers when approaching loading ramps. Once reverse gear has been engaged, the system uses visual and audible signals to inform the driver of the distance remaining behind the vehicle. When the semi-trailer is nearing the ramp, the trailer brakes independently.

Load securing

Restraint
Lashing points and aids
Non-slip floor

Restraint

Load restraint straps

The optional load restraint straps with recessed restraint tracks on both sides or in the middle prevent the load from slipping, improving work safety.

Stanchions inserted into the floor provide for form-fitting load securing

Stanchion pockets

The stanchions inserted in the floor can be used for form-fitting loading, providing yet another flexible load securing option. They efficiently secure in place longer materials, among other bulky goods.

Lashing points and aids

Lashing eyes

The lashing eyes, with a pulling force of up to 4 tonnes, provide flexible load securing points. They fit all common hooks for fast load securing, and chains can also be locked in them.

Lashing holes to fit all popular hooks to efficiently secure your load

Full-length lashing holes

These standard lashing holes in the outer frame or optionally in the pallet stop mean that your load can be very quickly, efficiently and flexibly secured. The lashing holes fit all popular hooks.

Non-slip floor

Non-slip floor increases the safety of goods and prevents slipping

Non-slip floor

Load securing is made easier with the certified non-slip floor with black plastic coating. Your load stays in a fixed position and loose non-slip mats are now a thing of the past.

Certificates

Comprehensive certifications for your safety in day-to-day transportation work.

DIN EN 12642 Code XL
Certified structural rigidity as standard. With DIN EN 12642 Code XL certification, Schmitz Cargobull bodies comply with the load securing requirements governing reinforced bodies.
Read more
Beverages
Trailer bodies that confirm to DIN EN 12642 Code XL with the addition "suitable for beverage transport" meet the special requirements governing well pallets and drums. Suitable for one- or two-layer beverage transport.
Read more
